Why This Matters
A single-axle utility trailer runs one set of lights off one connector, and a failure there is an annoyance you fix in the driveway. A multi-axle equipment trailer or car hauler runs separate lighting and sometimes separate brake circuits per axle group, all of which have to meet at a junction point before they reach the 7-way trailer plug on the tow vehicle, and that junction point is exactly where corrosion, vibration, and bad splices concentrate. TruckNTow has fielded questions on this exact failure mode from Detroit-based haulers and rental fleets alike since 1959, and the pattern hasn't changed: multi-axle trailers fail electrically at the box, not at the bulb. For fleets that can't afford a hardwired splice to fail mid-route, a wireless LED tow light kit removes the junction box from the equation entirely by broadcasting the signal instead of running it through a spliced housing.
Who This Is For
Fleet managers running tandem and tri-axle equipment trailers, car haulers with independent lighting circuits per axle station, and rental or repo operations that put unfamiliar tow vehicles behind unfamiliar trailers week after week all need a wiring solution that survives more circuits, more vibration, and more connector mismatches than a standard single-axle setup ever sees. If your trailer runs more than four lighting functions across more than one axle group, the junction box — or the decision to skip one — is the part of the wiring system that decides whether your rig passes a roadside inspection in 2026.

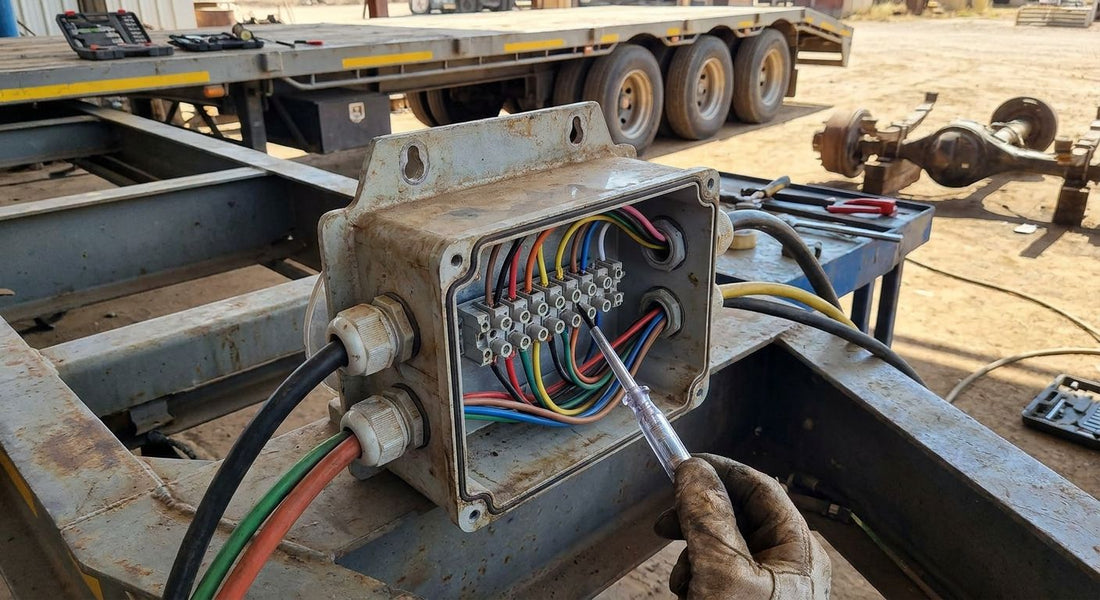

What to Look For in Trailer Wiring Junction Boxes for Multi-Axle Trailers
Circuit Count and Gauge Capacity
A multi-axle trailer with separate marker, turn, and brake circuits per axle group needs a box rated for at least six to seven circuits at 16-14 gauge, not the four-circuit boxes sold for basic single-axle utility trailers. Undersized gauge capacity is the reason boxes overheat and melt their own housings on trailers pulling heavier loads across three axles.
Sealed, Corrosion-Resistant Housing
Road spray reaches every axle on a multi-axle trailer, and a junction box mounted near the tandem or tri-axle hub sits in the worst of it. A housing without a gasketed lid and sealed cable entries corrodes from the inside within one winter season, and corrosion inside a shared junction point takes multiple circuits down at once instead of one.
Connector Standard Compatibility
Mismatched 4-pin and 7-way systems are the most common cause of dead circuits on mixed fleets, where a trailer built years ago on a 4-way flat gets towed by a truck wired for 7-way. Confirm which standard the trailer's junction box feeds before assuming the box itself has failed — a 4-pin to 7-pin adapter fix is often the actual problem, not a wiring failure inside the box.
Grommet and Strain-Relief Fittings
Tandem and tri-axle trailers flex more at the frame than single-axle units, and every flex point pulls on the wire runs feeding the junction box. A box without a rubber strain-relief grommet at each cable entry lets that flex transfer straight to the internal splice, and that splice shears loose well before the box itself wears out.
Access for Testing and Splicing
A junction box mounted in a spot you can't reach without pulling the trailer deck apart turns a five-minute diagnostic into an hour-long teardown. Multi-axle trailers with junction boxes buried under the frame rail cost more labor on every single service call, which adds up fast across a fleet running that same trailer model.
Mounting Location and Vibration Resistance
A box mounted directly to an axle or spring hanger takes every road vibration transmitted through that axle, while a box mounted to the frame rail with rubber isolators sees a fraction of that stress. On a tri-axle trailer, this difference is the gap between a junction box that lasts five years and one that fails in eighteen months.
The Practical Fixes Worth Running in 2026
The bypass pick. The VULCAN Wireless LED Tow Light Kit skips the junction box and the splice entirely — each light unit runs on its own wireless signal, installs in seconds without cutting into the trailer's factory harness, and includes stop, turn, running, and license plate functions in one unit. For rental fleets, repo operations, and flat-tow setups where a hardwired junction box isn't practical to service between jobs, this is the safe pick. Buy for temporary or high-turnover multi-axle setups; skip it for permanently mounted equipment trailers that need a DOT-compliant hardwired circuit at every inspection.
The diagnostic you run first. Before replacing any junction box on a multi-axle trailer, test the wiring harness with a continuity tester at each axle's connector. A corroded ground wire reads as a dead circuit in the box on more service calls than an actual failed junction, and swapping the box without testing the harness first just moves the same fault to a new housing. Do this before you buy anything.
The mismatch fix. If a multi-axle trailer built on a 4-way flat connector gets towed behind trucks wired for 7-way, or vice versa, the fix is a compatible adapter at the plug, not a rewired junction box. Consider this route first on mixed-fleet trailers before assuming the internal wiring has failed.
The wiring reference. Before splicing a new junction box into a multi-axle trailer's harness, confirm the pin-out at the 7-way plug matches the circuits you're feeding into the box — get the pin assignments wrong at the plug and every downstream circuit in the box reads as bad even when the box itself is fine. Buy the reference before you buy the parts.
The termination point. On semi-trailers and enclosed cargo units, marker light circuits typically terminate at or near the same junction box feeding the tail lights, so a failure that looks like a marker light problem is often a junction box problem one step upstream. Consider checking the shared termination point before replacing individual marker lights.
What to Avoid
- Universal one-size boxes claiming to fit two-axle through six-axle trailers without separate circuit protection per axle group — undersized gauge capacity under real load is common in these.
- Unsealed cardboard-backed circuit boards sold as budget junction boxes — they read fine on a bench test and fail within one wet season on a road-facing mount.
- Boxes with no strain-relief grommet at the cable entry — vibration on tandem and tri-axle trailers will find that unprotected splice point faster than any other failure mode on this list.
Safety and Maintenance
A multi-axle trailer's lighting circuits are a DOT compliance item, not a convenience feature, and a shared junction box failure that kills brake lights across two axle groups at once is the kind of fault that gets a rig pulled off the road. Ground every circuit at a clean, bare-metal point on the frame — a painted or corroded ground point reads as an intermittent circuit failure that's nearly impossible to trace back to the junction box itself. Coat every connection with dielectric grease before sealing the housing, and re-check that seal every fall before winter road salt starts working on exposed metal. Multi-axle trailers that see regular winter service benefit from a seasonal inspection of every junction point, not just the plug at the tow vehicle end.
Verdict Comparison
| Setup | Circuit Capacity | Corrosion Risk | Install Time | Verdict |
|---|---|---|---|---|
| Wireless bypass kit | Per-light wireless, no shared box | Low — no exposed splice | Minutes | Buy for temp/rental use |
| Hardwired sealed junction box | 6-7 circuits, gasketed | Low if grommeted and mounted to frame | 1-2 hours | Buy for permanent fleet trailers |
| Universal unsealed box | 4 circuits, often undersized | High | 30-60 minutes | Skip |
| Adapter-only fix (no box replacement) | Matches existing circuits | Depends on existing box condition | Minutes | Consider first if mismatch suspected |
FAQ
What is a trailer wiring junction box used for on multi-axle trailers?
It consolidates the lighting and brake circuits from multiple axle stations into one sealed connection point before they reach the tow vehicle's plug. On multi-axle trailers this box carries more circuits and more current than a single-axle setup, so it needs a higher circuit rating and better sealing.
How many circuits does a multi-axle trailer junction box need?
Most multi-axle trailers with independent brake and marker circuits per axle group need a box rated for six to seven circuits, matching the 7-way connector standard. A four-circuit box sized for a basic single-axle trailer will run undersized and overheat under that load.
Is a wireless tow light kit better than a hardwired junction box?
For temporary, rental, or flat-tow multi-axle setups, a wireless kit is the safer pick in 2026 because it removes the shared splice point that fails first. For permanently mounted fleet trailers needing a DOT-compliant hardwired circuit, a sealed junction box is still the standard.
Can I use a 4-pin junction box on a 7-way multi-axle trailer?
No — a 4-pin box only carries basic running, turn, and brake circuits and can't handle the additional charge and auxiliary circuits a 7-way multi-axle system needs. Use a compatible adapter at the plug instead of forcing a 4-pin box to carry a 7-way load.
How often should I inspect a trailer wiring junction box?
Inspect the junction box every season, and always before winter road salt exposure, checking the seal, the grounds, and the strain-relief grommets. Multi-axle trailers in regular winter service should get this check more often than fair-weather trailers.
What causes a trailer wiring junction box to fail on a multi-axle trailer?
Corrosion at an unsealed cable entry and vibration shearing an unprotected splice are the two most common causes, both worse on multi-axle trailers because the box carries more circuits and sits closer to more axle vibration. A bad ground at the axle connector is often mistaken for a box failure.
Do multi-axle trailers need a junction box at every axle?
Not every axle needs its own box, but trailers with independent brake circuits per axle group typically route those circuits through one shared junction point rather than separate boxes at each axle. Check the trailer's factory wiring diagram to confirm how your specific setup is routed before assuming a second box is needed.
How much does a trailer wiring junction box cost in 2026?
Pricing depends on circuit count, gauge rating, and sealing quality, so check current listings for exact costs rather than assuming a flat price across box types. A basic unsealed box and a sealed multi-circuit box built for tandem or tri-axle service are not priced the same, and the cheaper option usually costs more in labor down the road.
One Last Thing
Most multi-axle wiring calls that come in as "the junction box is dead" turn out to be a corroded ground at the axle connector, not the box itself — run the continuity test before you order a replacement, because swapping a good box for another good box wastes a service call.
