A loaded gooseneck losing braking power on a downhill grade is the scenario every heavy hauler dreads, and the right trailer brake controller is what keeps that scenario from happening on your rig in 2026.
- Proportional trailer brake controllers outperform time-delay units on heavy, multi-axle loads — Buy for tandem and triple-axle trailers.
- Match controller output current to your axle count; undersized amperage stalls braking response on heavy setups.
- Test your trailer wiring harness before every heavy tow — a bad ground defeats even a premium controller.
- Federal rules trigger trailer brakes at 3,000 lbs GVWR in most states, a baseline every heavy towing setup needs to clear in 2026.
Why a Trailer Brake Controller Isn't Optional on Heavy Loads
A trailer brake controller sends a signal from your tow vehicle's brake pedal to the trailer's electric brakes, and on anything hauling a car, equipment, or a loaded gooseneck, that signal has to arrive fast and proportionally or the trailer pushes the truck instead of slowing with it. Most states require electric brakes once a trailer crosses 3,000 lbs GVWR, and heavy towing setups — car haulers, equipment trailers, tandem and triple-axle rigs — sit well above that line every time they're loaded. Before wiring anything, test a trailer wiring harness before every tow so you know the controller is getting a clean signal instead of a corroded ground fighting it. A controller that's rated wrong for the load, or wired into a harness that's already failing, gives you the illusion of braking control without the actual stopping power a heavy trailer needs. Family-owned suppliers like TruckNTow, serving trucking professionals since 1959, have watched this exact failure mode take down car haulers and equipment rigs that looked fine on paper.
Key Features to Look for in a Trailer Brake Controller for Heavy Towing
Proportional vs. Time-Delay Activation
Proportional controllers use an internal accelerometer to match trailer braking force to how hard you're braking the tow vehicle, which matters most on heavy loads because it prevents the trailer from either lagging behind your stop or locking up ahead of it. Time-delay controllers apply a preset ramp regardless of how hard you brake, which works fine on light utility trailers but gets sloppy fast once you're pulling a loaded car hauler or a tandem equipment trailer down a grade. For heavy towing setups in 2026, proportional is the Buy; time-delay is a Skip unless the trailer stays under 3,000 lbs.
Output Current and Multi-Axle Capacity
Every additional axle adds brake magnets, and every additional magnet draws more current from the controller, so a unit built for a single-axle utility trailer won't have the headroom for a tandem or triple-axle rig. Check the controller's rated output against your trailer's total magnet draw before you buy, not after you've already wired it in. Undersized output shows up as mushy, delayed braking exactly when a heavy load needs the opposite.
Digital Display and Fault Diagnostics
Controllers with a digital readout flag a short, an open circuit, or a mismatched brake gain before it becomes a roadside problem, which is worth paying for on any rig doing regular heavy hauls. Basic dial-and-knob units still work, but they give you zero warning when a magnet fails mid-route. On a heavy towing setup where a brake failure means a real safety event, diagnostics are a Buy, not a nice-to-have.

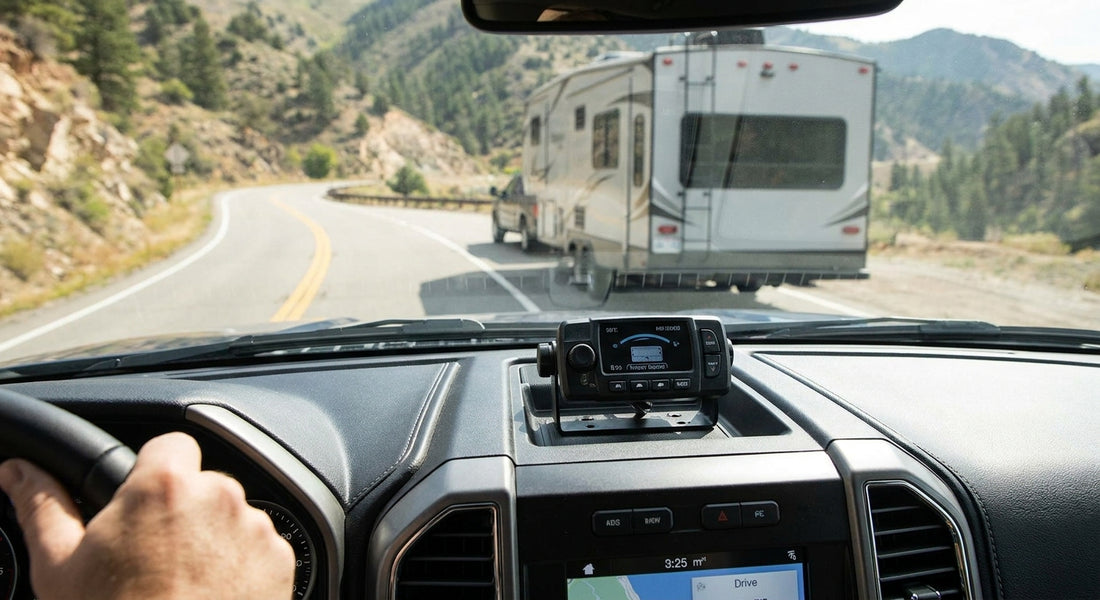

Mounting and Dash Integration
A controller mounted where you can see and reach it under load is a safety feature, not a convenience one — you need to adjust gain on the fly when load weight changes between runs. Confirm the controller's bracket fits your dash before installing, since aftermarket brackets vary more than the spec sheets suggest.
Compatibility and Wiring for Heavy-Duty Trailers
Heavy towing setups almost always run a 7-way connector rather than the 4-pin used on light utility trailers, since the extra pins carry the brake signal, backup lights, and a charge line the controller depends on. If your rig also runs air brakes — common on heavier gooseneck and semi-style trailers — the electric brake controller isn't the whole system, and you'll want to check gladhand fittings for semi-trailer air lines to make sure the air side is sealed and matched before you add electric brakes into the mix. Coiled air lines with reinforced leads hold up better than straight hose on rigs that disconnect and reconnect daily, which is worth factoring into a heavy-duty setup built for repeat towing rather than the occasional weekend pull.
Safety Considerations for Heavy Towing Setups
A brake controller only helps if the trailer stays attached to begin with, so every heavy towing setup needs a working breakaway system alongside it — if you're running a gooseneck, review a trailer breakaway kits for gooseneck trailers guide before your next haul, since a breakaway system triggers independent trailer braking if the coupler ever separates from the hitch. Safety chains are the mechanical backup to that electrical system, and crossing them correctly under the tongue changes how they catch a dropped trailer, which is why it pays to attach safety chains correctly every time rather than eyeballing it. None of this replaces a properly rated brake controller — it backstops it for the moment something upstream fails.
Maintenance and Care for Brake Controllers and Wiring
Corrosion at the 7-way connector is the single most common cause of intermittent brake controller faults, especially on rigs that tow through winter road salt or coastal moisture. Pull the connector every few months, clean the pins, and dielectric grease the contacts before they start throwing false fault codes on the display. A controller that worked fine in spring can fail silently by fall if the wiring behind it was never inspected, so build a wiring check into your regular pre-trip routine rather than waiting for a dash warning in 2026.
FAQ
What's the best trailer brake controller for heavy towing in 2026?
Proportional controllers rated for multi-axle output are the standard for heavy towing in 2026 because they scale braking force to how hard you brake the tow vehicle. Time-delay units are fine for light utility trailers but lag on tandem and triple-axle loads.
Is a proportional brake controller better than a time-delay controller?
Yes, for heavy loads a proportional controller is better because it matches trailer braking to your actual stopping force instead of applying a fixed ramp. Time-delay controllers work adequately on lighter single-axle trailers under 3,000 lbs.
How much amperage does a heavy-duty trailer brake controller need?
It needs enough rated output to cover every brake magnet across all axles, since tandem and triple-axle trailers draw more current than a single-axle unit. Check the controller's output rating against your trailer's total magnet draw before installing.
Do I need a brake controller for a gooseneck trailer?
Yes, gooseneck trailers almost always exceed the 3,000 lb GVWR threshold that triggers state brake requirements. Pair the controller with a working breakaway kit since gooseneck loads carry more weight risk if the coupler separates.
What wiring do I need to install a trailer brake controller?
Heavy towing setups use a 7-way connector, which carries the brake signal, charge line, and backup lights the controller depends on. Test the wiring harness for clean grounds before wiring in the controller itself.
Can one brake controller work with multiple trailers?
Yes, as long as each trailer's brake magnet draw stays within the controller's rated output and the 7-way wiring matches. Reset the gain setting when you switch between a light trailer and a heavy one.
How do I know if my trailer brake controller is working correctly?
A properly working controller shows smooth, proportional trailer braking that matches your tow vehicle's stop without lag or lockup. Units with a digital display will flag shorts or open circuits before the fault becomes a road hazard.
Does a trailer brake controller replace safety chains and a breakaway kit?
No, a brake controller handles normal stopping but doesn't replace mechanical backups. Safety chains and a breakaway kit protect the load if the trailer ever separates from the hitch entirely.
One Last Thing
The detail most heavy haulers skip is recalibrating gain after a trailer's load changes — a controller dialed in for an empty car hauler will stop too hard or too soft once that trailer's loaded, and that mismatch is often mistaken for a controller failure when it's really just a setting nobody reset. Check gain every time load weight shifts meaningfully, not just once at install.
