A trailer's axle rating decides how much weight you can legally and safely haul before the axle — not the frame, not the hitch — becomes the failure point. Trailer axle weight capacity by axle type in 2026 spans a wide range: single torsion axles start around 2,000 lb, the most common single-axle utility rating sits at 3,500 lb, tandem sets combine for up to 16,000 lb, and DOT-regulated semi-trailer axle groups cap at 34,000 lb under the federal bridge weight formula.
- Trailer axle weight capacity by axle type ranges from 2,000 lb torsion axles to 34,000 lb DOT tandem groups.
- 3,500 lb is the most common single-axle GAWR sold on utility and boat trailers in 2026.
- Tandem axle sets combine two single axles for 7,000-16,000 lb of combined capacity.
- DOT semi-trailer axle groups cap at 20,000 lb per single axle and 34,000 lb per tandem group under federal bridge law.
- Axle rating is a ceiling, not a target — tires, hubs and suspension have to match it or the number on the axle tag is meaningless.
Why this matters
An axle rated below what the trailer actually carries fails quietly at first — bearings run hot, hubs cook, then a spindle snaps at highway speed. That is a different failure mode than a blown tire, and it is harder to catch on a pre-trip walk-around unless you know which number you are checking against.
Most overload failures trace back to the same mistake: someone reads the trailer's GVWR off the VIN tag and assumes the axles match it, when manufacturers frequently spec axles a notch below GVWR to leave margin for tongue weight and cargo shift. A trailer axle and hub maintenance routine catches wear before it becomes a roadside failure, but only if you are inspecting against the correct rated capacity in the first place.
The short answer
A single trailer axle in 2026 typically carries 2,000 to 10,000 lb, with 3,500 lb the single most common rating across utility, boat, and light cargo trailers sold in the U.S. Heavier-duty single axles run 10,000 to 12,000 lb. Tandem axle sets — two axles under one trailer — combine for 7,000 to 16,000 lb, and tri-axle setups on equipment trailers stack to 21,000 lb combined. At the top end, DOT-regulated semi-trailer axle groups are capped by federal law rather than by axle manufacturing limits: 20,000 lb for a single axle, 34,000 lb for a tandem group.

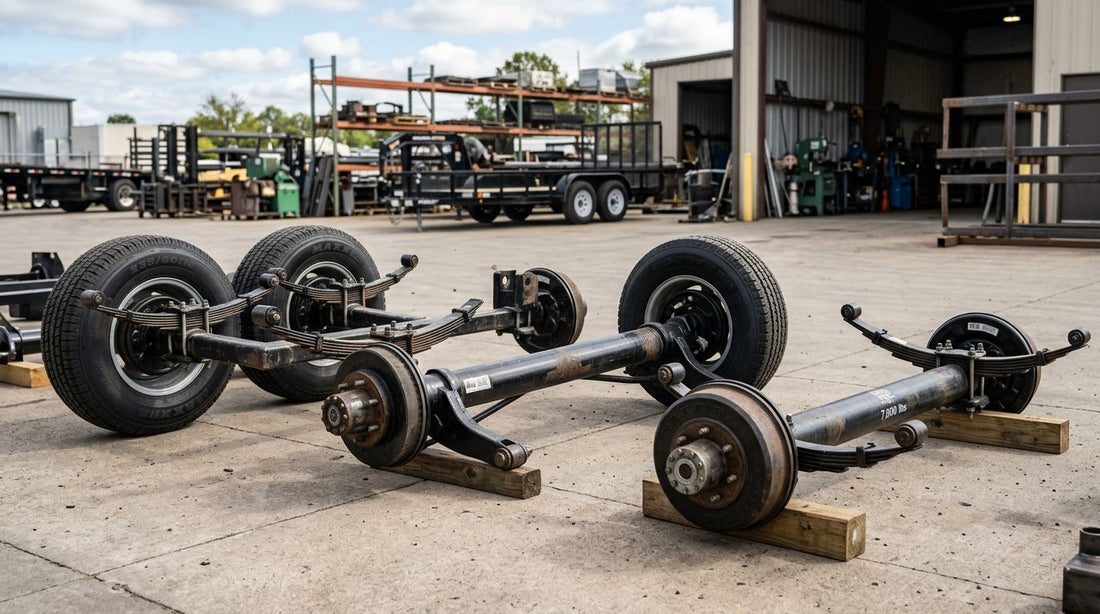

Trailer axle weight capacity by axle type in 2026
| Axle Type | Typical Capacity | Common Use |
|---|---|---|
| Torsion axle (single) | 2,000-8,000 lb | Utility, boat, and cargo trailers under 20 ft |
| Leaf spring axle (single) | 2,000-10,000 lb | Utility and cargo trailers, heavier-duty spec |
| Drop axle (single) | 3,500-7,000 lb | Car haulers needing a lower deck height |
| Tandem axle set (2 axles) | 7,000-16,000 lb combined | Car haulers, equipment trailers, enclosed cargo |
| Tri-axle set (3 axles) | 15,000-21,000 lb combined | Heavy equipment and gooseneck trailers |
| DOT single axle (semi-trailer) | Up to 20,000 lb | Interstate tractor-trailer, federal bridge formula |
| DOT tandem axle group (semi-trailer) | Up to 34,000 lb combined | Interstate tractor-trailer, federal bridge formula |
| All/Overall single axle | 3,500 lb median rating | The yardstick for most trailers on the road in 2026 |
Where axle capacity wins and loses
DOT tandem axle groups lead the table at 34,000 lb combined, and that figure is not set by what an axle manufacturer can build — it is a legal ceiling under the federal bridge weight formula, written to spread load across enough wheels to protect pavement and bridge structures. Single torsion axles trail at 2,000 lb on the light end, which is plenty for a small utility trailer but becomes a bottleneck the moment someone loads a UTV or a pair of ATVs.
The gap between those two numbers — 2,000 lb versus 34,000 lb — is also the gap between a weekend utility trailer and a commercial rig, and it is why axle type alone does not answer the question. You need the axle type and the specific GAWR stamped on the axle tag, because two trailers that look identical from the road can carry axles rated 4,000 lb apart.
Methodology and limits of these numbers
The capacity ranges above reflect standard GAWR classes published by major trailer axle manufacturers for torsion, leaf spring, and drop axle configurations, plus the federal bridge gross weight formula under 23 CFR 658 governing axle groups on the Interstate highway system as of 2026.
One limitation worth naming: these are axle-only ratings. They say nothing about tire load range, wheel bolt-pattern rating, or suspension hardware condition — any one of which can pull the trailer's real-world safe capacity below what is stamped on the axle itself. A 5,200 lb axle bolted to tires rated 4,080 lb caps the whole assembly at 4,080 lb.
How to use these benchmarks
- Match axle type to trailer use, not just GVWR. A single 3,500 lb torsion axle suits a light utility trailer; once you are hauling a car or equipment regularly, move to a tandem set rated 7,000 lb or higher.
- Check tire and wheel ratings against the axle GAWR before assuming full capacity — the lowest-rated component in the chain sets the real ceiling.
- Size your safety chains to the trailer's GVWR, not the axle rating alone, because chains have to hold the full loaded weight if the coupler fails.
- Load to roughly 80% of GAWR, not 100%, leaving margin for uneven distribution, tongue weight shift, and tire wear across the trailer's service life.
- Tying a vehicle down by its axle is a separate rating question — axle straps are rated by working load limit, and the axle straps ranked by working load limit breakdown covers that independently of trailer axle GAWR.
“The axle's rated capacity is a ceiling, not a target — load to about 80% of GAWR and the margin covers tire wear, cargo shift, and uneven distribution.”
Securing the load once the axle math checks out
A correctly rated axle still leaves the load itself unsecured. For vehicle hauling, the securement point is usually the axle or the rim, and VULCAN PROSeries axle straps carry a 3,300 lb safe working load each — four of them on a car spreads roughly 13,200 lb of restraint capacity across the deck, well past what any passenger vehicle needs. Best for low-clearance cars where there is no room to reach a frame rail.
Honest trade-off: axle straps put the restraint load directly into suspension components, so on a vehicle with damaged control arms or a bent axle, wheel-net or lasso securement over the tire is the safer choice. Axle straps win on clearance; wheel straps win on damaged vehicles.
FAQ
What is the average trailer axle weight capacity?
The most common single trailer axle rating in 2026 is 3,500 lb, covering the bulk of utility, boat, and light cargo trailers. Heavier single axles run 6,000 to 12,000 lb, and tandem sets combine for 7,000 to 16,000 lb.
What is the difference between torsion and leaf spring trailer axles?
Torsion axles use rubber cords for independent suspension and run quieter with less maintenance, while leaf spring axles use a traditional spring pack and generally reach slightly higher single-axle capacities, up to 10,000 lb. Both sit in the same 2,000-10,000 lb single-axle range depending on the model.
How much weight can a tandem axle trailer haul?
A tandem axle trailer typically carries 7,000 to 16,000 lb combined across both axles, depending on the individual axle rating. Tri-axle configurations push that to 15,000-21,000 lb combined.
What is the DOT axle weight limit?
Under the federal bridge weight formula in 23 CFR 658, a single axle on the Interstate system is capped at 20,000 lb and a tandem axle group at 34,000 lb combined. Those are legal limits, not manufacturing limits.
Can I upgrade my trailer's axle capacity?
Axle capacity can sometimes be raised by swapping to a higher-GAWR axle, but the frame, suspension mounts, tires, and wheels all have to support the new rating. A frame built for a 3,500 lb axle is not automatically safe with a 7,000 lb axle bolted under it.
How do I find my trailer's axle rating?
Check the axle manufacturer's tag, usually stamped or riveted on the axle tube near the spring perch or torsion arm. The GAWR on the trailer's VIN plate is a separate number reflecting the lowest-rated component, not necessarily the axle itself.
Is a tandem axle trailer better than a single axle?
Tandem axle trailers carry more weight and tow more stably at highway speed, but cost more to maintain because there are twice the bearings, hubs, and brakes to service. Single axles are lighter and cheaper and fine for loads under roughly 3,500 to 5,000 lb.
How much below GAWR should I load a trailer?
Loading to about 80% of the axle's GAWR is the safer working range. That margin absorbs tongue weight shift, uneven cargo distribution, and normal tire wear over the trailer's service life.
One last thing
The number that trips up more haulers than any other is not the axle rating at all — it is the tire rating sitting right next to it. An axle stamped for 5,200 lb loses that entire margin the second it rolls on tires load-rated for 4,080 lb, and the tire sidewall, not the axle tag, becomes the real ceiling on what you can legally haul. Check both before you load, every time, not just the one that is easier to read.
