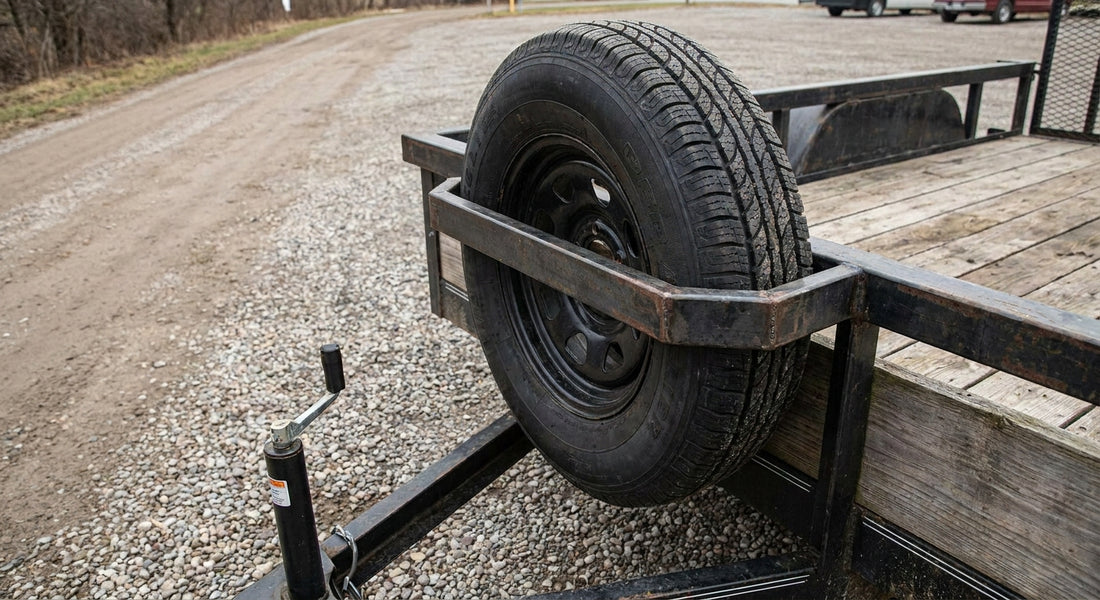

A spare tire carrier for a utility trailer only earns its keep the day a tire blows on the interstate, and the difference between a twenty-minute swap and a stranded afternoon usually comes down to whether the carrier was bolted on with the right hardware in the first place.
- Frame-rail bolt-on carriers rated near 3,300 lbs. handle most single-axle utility trailers under 7,000 lbs. GVWR -- Buy.
- Tongue-mount carriers can block jack access on A-frame trailers -- Skip unless the tongue sits clear of the jack post.
- A case-hardened lock kit stops bolt-cutter theft of an exposed spare in seconds of shopping time -- Buy as an add-on.
- Corrosion at the mounting bolts is the top failure point on trailers stored outdoors through 2026 winters -- inspect quarterly.
Why a spare tire carrier matters on a utility trailer
A blown tire on a loaded utility trailer isn't a roadside inconvenience, it's a load-shift risk, especially when the trailer is carrying equipment, ATVs, or landscaping gear with its weight already close to the axle rating. Without a carrier bolted through stake pocket D-ring anchors, most operators end up wedging the spare loose in a truck bed or bungee-cording it to the frame, which fails exactly when it's needed most.
A properly mounted carrier keeps the spare rated, accessible, and off the deck where cargo straps and ratchet binders need clear routing. TruckNTow has outfitted trucking professionals with towing and recovery hardware out of Detroit since 1959, and the same anchor points, chain, and lock hardware that secure a load also secure a spare tire carrier bracket to a trailer frame.
What to look for in a spare tire carrier for a utility trailer
Load rating matched to tire and wheel weight
A loaded 15-inch trailer tire and steel wheel can run 45-70 lbs, and a carrier bracket rated below that combined weight will fatigue at the weld within a season of highway vibration. Match the bracket's stated capacity to your actual tire-and-wheel weight, not just the trailer's GVWR, since a mismatch here is the single most common warranty claim carrier manufacturers report.
Mounting style and frame compatibility
Bolt-on frame-rail carriers, tongue-mount units, and swing-away brackets each demand different frame geometry, and a carrier that requires drilling through a boxed frame rail needs grade-8 hardware, not the soft bolts that ship with budget kits. Anchor points bolted to the frame should carry the same 3,300-lb safe working load rating used across standard tie-down hardware, since the mounting bolts see the same road vibration and shock loading as any other frame-mounted anchor.
Corrosion resistance and finish
A utility trailer that sits outdoors through a Michigan or Midwest winter sees road salt hit every exposed bolt head on the carrier bracket, and mild-steel hardware without a zinc or powder-coat finish starts seizing within two seasons. Stainless or coated hardware costs more upfront but avoids the cut-torch removal job that a rusted-solid carrier bolt eventually turns into.
Locking and theft protection
An exposed spare tire on the back of a trailer is one of the easiest theft targets in a parking lot, and a carrier without a locking mechanism gets stripped in under a minute with basic hand tools. A case-hardened security chain and lock kit run through the wheel and carrier frame closes that gap without needing a purpose-built carrier lock.
Access under load
A carrier mounted too close to the trailer's ramp gate, tongue jack, or coupler handle becomes a two-person job to release when the trailer is fully loaded. Test clearance with the trailer loaded and hitched, not empty in the driveway, since load compresses the axle and changes deck height by an inch or more.
Compatibility and fit across trailer frame types
A-frame utility trailers with a center tongue jack need the carrier mounted clear of the jack's swing radius, or every fuel stop turns into a wrestling match to fold the jack around the bracket. Deck-over and low-profile trailers with exposed frame rails handle bolt-on rail carriers well, since the rail gives a flat mounting surface without interfering with ramp gate hinges.
Dual-axle trailers carrying heavier equipment loads should size the carrier bracket to the same 3,300-lb class rating used for axle straps and wheel tie-downs, since a lighter-duty bracket rated for a passenger-car spare won't hold up under the vibration profile of a loaded equipment trailer running interstate miles in 2026.
A bracket-mounted carrier holds the spare's weight, but a strap run over the tread as a second point of restraint keeps it from drumming loose on washboard roads, the same logic that governs why axle straps back up ratchet binders on a car hauler.
Securing and locking the spare
Every carrier bracket, no matter how well it's rated, is only as strong as the bolts holding it to the frame. Torque grade-8 mounting bolts to the manufacturer's spec and re-check them after the first 500 miles, since new hardware seats into the frame coating and loses initial torque.
Run the case-hardened security chain and lock kit through a wheel spoke and the carrier frame at every overnight stop, since a 6-foot case-hardened chain resists bolt cutters and hand tools that strip an unlocked spare in under a minute. A carrier without a lock is a Skip for any trailer left unattended overnight.
Maintenance and care
Check the mounting bolts, the bracket welds, and the tire pressure on the spare itself every quarter, since a spare sitting at half pressure for two years is useless the day it's actually needed. Wipe road salt off the bracket and hinge points before winter storage, and hit any bare metal with a corrosion inhibitor before the bracket sees its first snow of the season.
Heavy-duty corner protectors placed where a securement strap crosses the carrier's edge stop webbing abrasion that otherwise cuts a strap's rated capacity in half over a season of use. Skip any carrier with sharp, unfinished edges where straps or chains make contact.
FAQ
What's the best spare tire carrier for a utility trailer?
A bolt-on frame-rail carrier rated at or above your tire and wheel's combined weight, mounted with grade-8 hardware and a locking chain, is the best spare tire carrier for most single-axle utility trailers in 2026. Tongue-mount styles work only when they clear the trailer jack.
Is a tongue-mount carrier better than a frame-rail carrier?
Frame-rail carriers generally beat tongue-mount units on A-frame trailers because they don't interfere with the tongue jack's swing radius. Tongue-mount carriers work better on trailers with side-mount jacks or no center jack at all.
How much weight can a spare tire carrier hold?
Most utility trailer spare tire carrier brackets are rated between 50 and 100 lbs., matching common 13-to-16-inch trailer tire and wheel combinations. Check the bracket's stated rating against your actual tire and wheel weight before mounting.
How do I stop someone from stealing my trailer's spare tire?
Run a case-hardened security chain and lock through a wheel spoke and the carrier frame every time the trailer sits unattended. Case-hardened chain in the 5/16-inch to 3/8-inch range resists bolt cutters, unlike standard proof-coil chain.
Can I mount a spare tire carrier myself?
Yes, most bolt-on carriers mount with a drill, grade-8 bolts, and a torque wrench in under an hour. Frame-rail models that require drilling through boxed steel need a step bit and careful measurement to avoid weakening the rail.
How often should I check a trailer spare tire carrier?
Inspect the mounting bolts, bracket welds, and spare's tire pressure every quarter, and re-torque bolts after the first 500 miles on new installs. Trailers stored outdoors through winter need a corrosion check before spring hauling season starts.
Does a spare tire carrier need a lock?
Any carrier on a trailer left unattended overnight needs a lock, since an unsecured spare gets stripped in under a minute with basic hand tools. A case-hardened chain and lock kit closes that gap on carriers without a built-in locking mechanism.
One last thing
The carrier bolt torque spec gets skipped more than any other step in this guide, and it's the one that actually causes carriers to fail: bolts that seat loose after the first few hundred miles work themselves out entirely by mile 2,000 if nobody re-checks them, so put a torque wrench recheck on the same interval as an oil change and the carrier will outlast the trailer.
