A skid steer swinging loose from a failed pintle mount at highway speed does not give you a second chance to check torque specs — that decision gets made before the trailer ever leaves the yard. This guide breaks down what actually matters in a pintle hitch for heavy trailer towing in 2026: shank fit, hole patterns, load capacity, and the security gear that keeps a rated hitch from becoming a liability.
- The Pintle Mount 5-Inch W x 12.5-Inch H with 7 pair of holes and a 12.25-inch shank ($92.99) fits the widest range of tow vehicles for mixed fleets — Buy.
- Shank length has to match receiver depth within a fraction of an inch or the pintle hitch binds under load and stresses the weld.
- Skip any pintle mount that does not publish a stated safe working load — that is the fastest tell of an unrated casting.
- Pair every pintle hitch with a locking hitch pin and DOT-rated safety chains; the hitch is only as strong as its weakest connection.
- Longer shanks (14.50 inches) exist for lifted trucks, but they add leverage that shortens the life of a marginal mount.
Why a Pintle Hitch Is Not the Place to Cut Corners

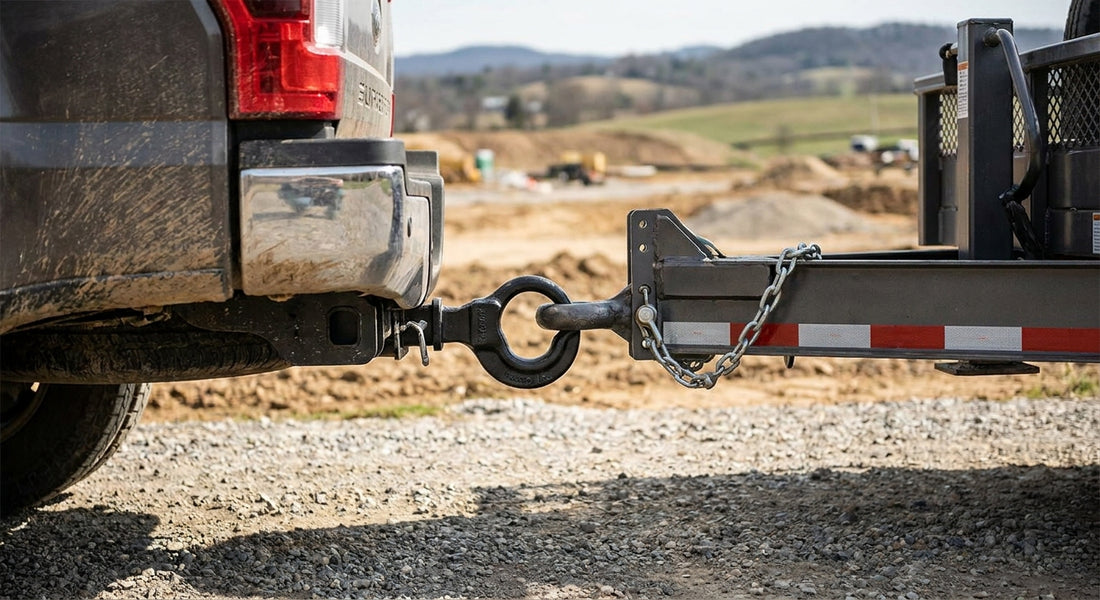

A ball hitch flexes a little and forgives a sloppy connection. A pintle hitch does not — it is a rigid steel lug and eye pinned together, built for the shock loading that comes with construction equipment, agricultural implements, and gooseneck-class trailers bouncing over rough ground. Choosing the wrong shank length or an unrated casting turns a routine haul into a roadside failure, and the difference between a Class 2 hitch and a Class 3 hitch matters more here than on a light-duty trailer because pintle applications almost always run at the top of a vehicle's tow rating. TrucknTow has supplied trucking professionals with towing hardware since 1959, and the pattern hasn't changed: most pintle failures trace back to a mismatched shank or a mount nobody bothered to torque correctly.
Who Needs a Pintle Hitch for Heavy Trailer Towing
This is gear for operators pulling loads a ball hitch can't handle safely — construction equipment haulers moving skid steers and mini excavators, agricultural operations towing implement trailers over uneven fields, municipal and utility fleets running heavy equipment trailers daily, and gooseneck or full-trailer operators who need the articulation a pintle eye provides on tight, uneven ground. If your trailer's gross weight regularly pushes past what a standard 2-inch ball can rate, or your routes involve off-road and construction-site towing, a pintle hitch belongs on the truck.
What to Look for in a Pintle Hitch
Shank Length and Receiver Fit
The shank has to match your receiver tube depth closely — a 9-inch shank in a receiver built for 12.25 inches leaves excess play that hammers the pin hole oversized within months. Pintle mounts in this category come in 9-inch, 10.25-inch, 12.25-inch, and 14.50-inch shank lengths, and picking the wrong one is the single most common installation mistake.
Mount Height and Hole Pattern
A mount with more hole pairs gives you more height adjustment without swapping hardware — a 5-inch W by 3.75-inch H mount with 2 pair of holes covers a narrow range, while a 12.5-inch H mount with 7 pair of holes adjusts across nearly a foot of vertical travel. Fleets running mixed tow vehicles need that range; single-truck operators usually don't.
Stated Safe Working Load
Every legitimate pintle mount publishes a safe working load rating tied to its steel gauge and weld pattern. If a listing skips that number entirely, treat it as a red flag regardless of price.
Tow Vehicle Rating Match
The pintle mount has to sit inside your truck's tow rating, not just the trailer's GVWR — confirming how to choose a truck hitch by tow rating before buying a mount prevents an expensive mismatch between shank, receiver, and drivetrain capacity.
Weld Quality and Steel Gauge
Continuous welds around the shank-to-plate junction hold up under the vibration of off-road and construction-site towing better than spot welds. A black-finish, heavy-gauge steel mount resists the flex fatigue that thinner castings develop after a season of daily use.
Security Against Theft
A pintle mount left on an unattended flatbed or gooseneck at a job site is a target. Locking hardware at the pin and the coupler matters as much as the mount's load rating once the truck is parked overnight.
Top Pintle Hitch Picks for Heavy Trailer Towing
The compact-shank pick — the 5-Inch W by 3.75-Inch H mount with 2 pair of holes and a 9-inch shank runs $62.99 and suits trucks with a shallow receiver and minimal height adjustment needs. It's continuous-welded and rated for standard-cab pickups pulling single-axle equipment trailers. Buy if your tow vehicle height doesn't change.
The mid-range adjustable pick — the 5-Inch W by 7.38-Inch H mount with 4 pair of holes and a 10.25-inch shank costs $69.99 and gives roughly 3.6 inches of height adjustment, useful for operators who swap between two or three trucks of similar size. Buy for small fleets.
The fleet-standard pick — the 5-Inch W by 12.5-Inch H mount with 7 pair of holes and a 12.25-inch shank runs $92.99. Seven hole pairs across 12.5 inches of plate height cover everything from a stock half-ton to a lifted 3500-series dually, which is why this configuration shows up most often in mixed commercial fleets. Buy — this is the default recommendation for most heavy trailer towing operations in 2026.
The lifted-truck pick — the 5-Inch W by 12.5-Inch H mount with 7 pair of holes and a 14.50-inch shank costs $109.99 and exists specifically for trucks with significant suspension lift where a shorter shank won't reach the receiver's rated pin location. The longer shank adds leverage on the weld, so it's a Consider rather than an automatic buy — confirm your receiver depth before ordering.
| Model | Shank | Hole Pairs | Height | Price | Verdict |
|---|---|---|---|---|---|
| 5-Inch W x 3.75-Inch H | 9-inch | 2 | 3.75-inch | $62.99 | Buy |
| 5-Inch W x 7.38-Inch H | 10.25-inch | 4 | 7.38-inch | $69.99 | Buy |
| 5-Inch W x 12.5-Inch H | 12.25-inch | 7 | 12.5-inch | $92.99 | Buy |
| 5-Inch W x 12.5-Inch H | 14.50-inch | 7 | 12.5-inch | $109.99 | Consider |
What to Avoid
- Unrated import castings with no published safe working load. If the listing can't tell you the rating, the manufacturer probably didn't test it.
- A shank length picked by guesswork instead of a tape measure. A quarter-inch of slop at the receiver becomes an oversized pin hole within a season.
- Combination ball-and-pintle hitches marketed as heavy-duty without a stated GTW. Some of these are rated for light bumper-pull trailers only, despite looking identical to a heavy-haul mount.
A pintle hitch is not a place to save twenty dollars on an unrated part.
Security and Long-Term Care
A pintle mount left unattended at a job site or yard overnight is worth stealing, and the mount itself won't stop that — a locking hitch pin through the receiver does. Inspect the weld seams and pin holes every 90 days on trucks running daily, and replace any mount showing hairline cracking at the shank-to-plate joint before it fails under load, not after.
FAQ
What is a pintle hitch used for in heavy trailer towing?
A pintle hitch connects a rigid steel eye on the trailer tongue to a lug on the tow vehicle, built for the shock loading of construction equipment, agricultural implements, and off-road hauling that a ball hitch can't handle as reliably. It's the standard choice once trailer weight and terrain push past standard bumper-pull towing.
Is a pintle hitch better than a ball hitch for heavy trailers?
For rough terrain and heavy, articulating loads, yes — a pintle hitch tolerates more movement and higher shock loads than a ball-and-coupler setup. For smooth-road towing of lighter trailers, a ball hitch remains simpler and cheaper.
How much does a pintle hitch mount cost in 2026?
Pintle mounts run from roughly $62.99 for a compact 9-inch shank configuration up to $109.99 for a 14.50-inch shank built for lifted trucks, based on current 2026 pricing across common configurations.
What shank length do I need for a pintle hitch?
Measure your receiver tube's rated pin location before ordering — common shank lengths run 9, 10.25, 12.25, and 14.50 inches, and a mismatch causes excess play that damages the pin hole over time.
Do I need a locking hitch pin with a pintle mount?
Yes, especially for trucks and trailers parked at job sites or lots overnight. A locking hitch pin prevents theft of the mount itself and discourages tampering with a rated connection.
Can a pintle hitch be used with a gooseneck trailer?
No — a pintle hitch mounts in a receiver and uses a rigid eye-and-lug connection, while gooseneck trailers require a ball mounted in the truck bed. The two systems are not interchangeable.
What's the difference between a Class 2 and Class 3 hitch for pintle use?
Class 3 hitches carry higher weight ratings and larger receiver openings, which matters because pintle mounts for heavy trailer towing typically require the 2-inch receiver size and tow rating that Class 3 hardware provides.
How often should I inspect a pintle hitch mount?
Check weld seams and pin holes every 90 days on trucks in daily use, and immediately after any hard impact or off-road recovery. Replace the mount at the first sign of hairline cracking at the shank-to-plate joint.
One Last Thing
The 7-pair-of-holes mounts outsell the 2-pair versions by a wide margin in mixed fleets — not because operators need all seven positions, but because trucks get replaced and lifted over their service life, and a mount with more adjustment range outlasts the truck it was bought for. Buying the adjustable version once costs less than buying a fixed mount twice.
Run the shank measurement before you order, match the mount to your actual tow rating, and back it up with a locking pin. That's the whole job done right in 2026.
