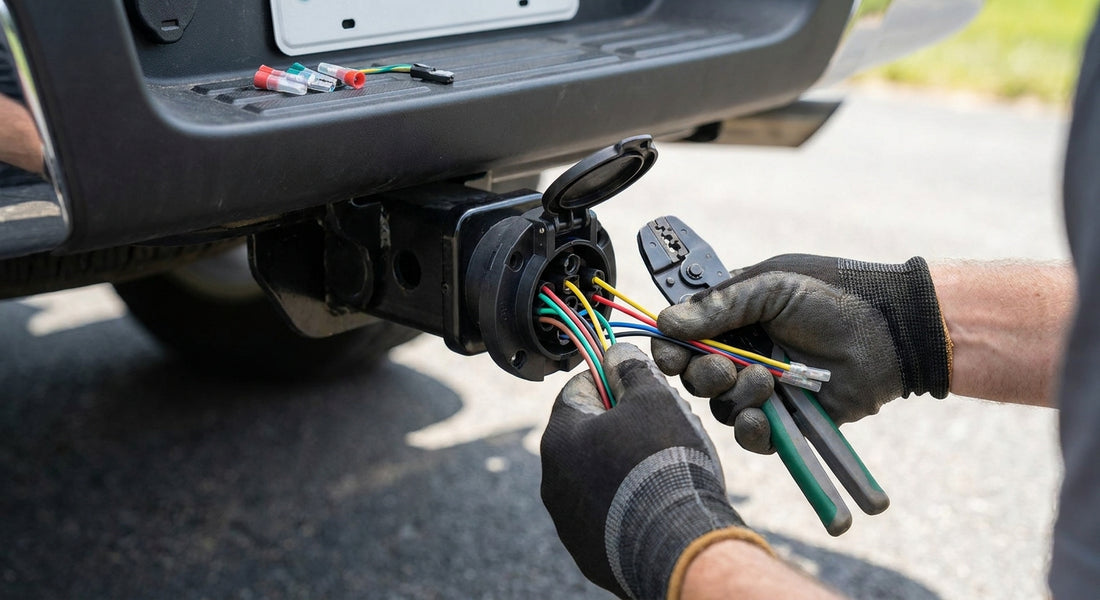

Wiring a 7-way trailer plug wrong costs you brake lights at 60 mph on a dark highway — get it right the first time and you never think about it again.
TL;DR
Wiring a 7-way trailer plug means matching seven circuits — ground, taillights, left turn/brake, right turn/brake, auxiliary/accessory, electric brakes, and a 12-volt charge line — to the correct pins using the SAE standard color code (white, brown, yellow, green, blue, black, red). The job takes 60-90 minutes with basic hand tools and a test light, and most failures in 2026 trace back to a bad ground or a skipped circuit breaker on the brake or auxiliary line. TruckNTow's 20-amp and 25-amp circuit breakers protect those circuits from the kind of short that burns a harness on a 6,000-pound trailer. Verdict: doable in an afternoon if you follow the pin-by-pin order below and test each circuit before you close it up.
Why this matters
A 7-way trailer plug isn't just lights. It's the connector that runs your brake controller signal, your reverse lockout, and a constant 12-volt feed to charge trailer batteries or run a winch. Miss one wire and you don't find out until you're backing a loaded car hauler down a ramp with no trailer brakes.
The SAE J560 standard has used the same pin layout and color code since long before 2026, so parts and wiring diagrams are interchangeable across brands. The failure point is almost never the plug itself — it's a ground that's rusted through, a circuit that was never fused, or a splice that corroded because nobody sealed it. Fix those three things and the plug lasts the life of the truck.
What you'll need
- 7-way trailer connector (vehicle-side socket and trailer-side plug, matched pair)
- 12-volt test light or multimeter
- Wire strippers and crimping tool
- Heat-shrink butt connectors (not just electrical tape — tape fails in road spray within a season)
- 14-16 gauge trailer wire, color-matched to the SAE code
- A 20-amp circuit breaker or 25-amp circuit breaker, depending on your accessory and brake circuit draw
- Dielectric grease for every connection that sits outside the cab
- Wiring diagram specific to your truck (factory harness color codes vary by manufacturer even when the SAE pinout doesn't)
- 60-90 minutes and a truck up on ramps or a lift if you're routing wire under the bed
The steps
1. Identify your seven circuits before you touch a wire
The SAE J560 standard assigns a color and function to each pin: white (ground), brown (running/tail lights), yellow (left turn and brake light), green (right turn and brake light), blue (electric trailer brakes), black (12V auxiliary/accessory power), and red (12V battery charge line). Confirm this against your specific connector's pinout diagram — some aftermarket adapters relabel pin positions even when they keep the same colors.
Common mistake: assuming every 7-way plug on the market uses identical pin geometry. RV-style and heavy-duty flatbed connectors sometimes swap the position of the auxiliary and charge pins.
2. Establish your ground first
Ground is pin/wire white, and it's the single most common failure point on any trailer wiring job. Scrape the mounting point down to bare metal, use a star washer, and run a dedicated ground wire back to the negative battery terminal instead of trusting a frame bolt alone.
A weak ground shows up as flickering lights, a trailer brake controller that reads erratic voltage, or turn signals that work on one side but not the other. Test with your multimeter — you want under 0.2 ohms of resistance between the ground pin and the battery negative post.
3. Wire the running lights (brown)
Tap the brown wire into your truck's existing tail light circuit, ideally at a factory connector rather than by piercing the harness. This circuit powers trailer marker lights, tail lights, and license plate lights whenever your headlights or parking lights are on.
Expected outcome: trailer marker lights and tail lights illuminate the instant you turn on your truck's parking lights, with zero flicker.
4. Wire left and right turn/brake (yellow and green)
Most trucks built after the early 2000s combine turn signal and brake light functions on a single wire per side — that's why yellow and green each carry double duty. Splice into the truck's left and right rear turn signal circuits, testing each side independently with your test light before moving to the next wire.
Common mistake: crossing yellow and green. The trailer's turn signals will work but mirror-image the truck's, which looks fine in a driveway and gets you rear-ended in traffic.
5. Wire electric brakes (blue)
Blue runs from your brake controller to the trailer's electric brake magnets, and it needs a dedicated fused circuit — this is where a circuit breaker matters most. A short on this line without protection can melt the harness or take out your brake controller.
Run the 25-amp circuit breaker inline if you're towing anything with a heavier electric brake draw (dual-axle trailers, car haulers); the 20-amp breaker covers lighter single-axle setups. Test brake output with a multimeter while pressing your truck's brake pedal — you should see voltage climb proportionally, not jump straight to full power.
6. Wire auxiliary power (black) and battery charge (red)
Black powers trailer accessories — interior lights, a winch, a reefer unit — and should run through its own fused circuit sized to the accessory load. Red is a constant 12-volt feed, typically used to trickle-charge a trailer battery, and it should connect straight to the truck battery, not through the ignition switch.
If your trailer has interior lighting like an oval interior dome light, this is the circuit it draws from. Test it with the truck off — a properly wired red circuit stays hot regardless of ignition state.
7. Seal, secure, and test the full circuit
Every splice gets a heat-shrink butt connector, not tape. Route the harness away from exhaust heat and moving suspension parts, zip-tie it every 12-18 inches, and leave enough slack at the hitch for full turning radius.
Final test: plug in a trailer or a 7-way tester, cycle every function — running lights, both turn signals, brakes, reverse if wired, and accessory power — and confirm each one independently instead of assuming a working left side means the right side is fine too.
Troubleshooting
- Lights work but flicker at speed. Almost always a ground issue — re-scrape the ground point and add a second ground strap if the frame has surface rust.
- Trailer brakes don't engage. Check the blue wire connection at the brake controller first, then test the breaker — a tripped 20-amp or 25-amp breaker means something downstream is drawing too much current.
- Turn signals work but brake lights don't (or vice versa). The truck-side harness likely runs turn signal and brake as separate wires while the trailer expects combined yellow/green — you need a combiner module, not a rewire.
- One side works, the other doesn't. Isolate that side with a test light at the connector before assuming the bulb is bad; a dead pin at the plug is more common than a burned-out bulb.
- Accessory power (black) is dead. Check the fuse or breaker on that circuit before chasing wire — a tripped protector looks identical to a broken wire from the plug end.
- Everything worked in the driveway, then failed on the highway. Vibration loosened a butt connector that wasn't fully crimped or heat-shrunk — recheck every splice under load, not just at idle.
Tools and resources
- Test light or multimeter (non-negotiable — don't wire by guesswork)
- Heat-shrink connectors and a heat gun or lighter
- 20-amp circuit breaker for lighter single-axle brake and accessory circuits
- 25-amp circuit breaker for dual-axle or heavier-draw setups
- Dielectric grease for every exposed connection
- A wiring diagram matched to your specific truck year and trim
What to do next
Once the electrical side is locked in, the rest of your hookup checklist matters just as much — a loose glad hand or unlocked coupler undoes a perfect wiring job fast. TruckNTow keeps a running library of hookup and fleet-maintenance guides, including record-keeping and inspection resources for fleet managers, if you're managing more than one truck-trailer pairing.
FAQ
What's the SAE color code for a 7-way trailer plug? White is ground, brown is running lights, yellow is left turn/brake, green is right turn/brake, blue is electric brakes, black is auxiliary 12V, and red is the battery charge line. This code has been standard since well before 2026 and holds across nearly every connector brand.
Is a 7-way plug better than a 4-way for towing? Yes, if your trailer has electric brakes, a charge line, or accessory power needs — a 4-way only handles running lights and turn signals. Anything with electric brakes requires the 7-way's blue wire circuit.
How much does it cost to wire a 7-way trailer plug in 2026? A basic DIY kit with connector, wire, and connectors typically runs under $50 in parts; a shop installation with a brake controller integration usually lands between $150 and $300 depending on labor rates in your area.
Do I need a circuit breaker on a 7-way trailer harness? Yes, on both the brake circuit and any accessory circuit carrying meaningful load — an unprotected short can melt a harness or damage your truck's electrical system. A 20-amp breaker covers most single-axle setups; heavier dual-axle trailers often need 25 amps.
Why do my trailer brakes not work after wiring the 7-way plug? Check the blue wire connection at the brake controller first, then verify the breaker hasn't tripped — those two points cause the vast majority of no-brake complaints after a fresh wiring job.
Can I use a 7-way to 4-way adapter instead of rewiring my truck? Yes, for basic lighting-only trailers, but adapters don't carry brake or accessory circuits reliably and shouldn't be trusted for anything with electric brakes.
How long does it take to wire a 7-way trailer plug? Budget 60-90 minutes for a straightforward install with an existing factory harness connector; add another hour if you're running new wire from scratch under the bed.
What gauge wire should I use for a 7-way trailer harness? 14-16 gauge covers lighting and accessory circuits for most consumer trailers; go to 12-gauge on the blue brake circuit if you're towing anything over 7,000 pounds.
One last thing
Most DIY wiring failures in 2026 aren't wiring failures at all — they're ground failures wearing a wiring failure's clothes. Before you rewire anything, scrape the ground point down to bright metal and retest. Half the "my 7-way plug doesn't work" calls a shop gets resolve with a wire brush, not a soldering iron.
