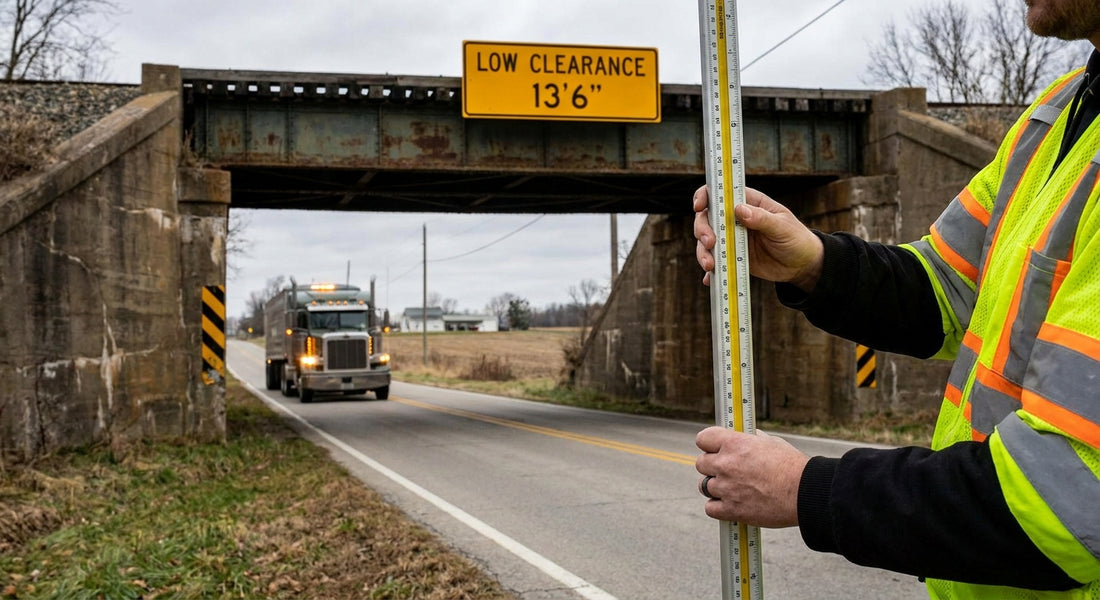

A height stick tells you the real clearance under a bridge, canopy, or parking garage before your trailer finds out the hard way — here's how to use one on every low-clearance route you run in 2026.
- Measure your rig loaded, not empty — cargo height changes your real clearance every trip.
- The QuickClick Compact Plus load height measuring stick reads up to 15 feet and mounts on the cab in minutes: Buy for daily low-clearance runs.
- Zero the stick against pavement, never against your bumper or hitch, or you will read 4-6 inches short.
- Cross-check every height stick reading against posted bridge signage before committing to a route in 2026.
- Re-measure after any load change, tire swap, or suspension adjustment — a height stick reading from last month is a guess, not a fact.
Why this matters
A low-clearance strike isn't a fender bender. It's a torn roof, a sheared A/C unit, or a totaled trailer, and it happens because a driver trusted a GPS app or an old mental number instead of a physical reading. Standard interstate overpasses run 13 feet 6 inches in most states, but plenty of older bridges, parking structures, and drive-throughs sit well under that — and posted signs are wrong or missing more often than fleet managers admit.
A height stick removes the guesswork. It's a mechanical, unpowered readout of your actual vehicle height at the moment you check it, and it costs a fraction of a single roof-tear claim. If your height stick reads 13 feet 4 inches, treat every 13-foot-6-inch bridge as a squeeze, not a green light — that 2-inch buffer disappears fast with mirrors, antennas, or a slightly underinflated tire.
“If your height stick reads 13 feet 4 inches, treat every 13-foot-6-inch bridge as a squeeze, not a green light.”
What you'll need
- A dedicated height measuring stick — the QuickClick Compact Plus load height measuring stick covers up to 15 feet and folds down for cab storage
- A flat, level stretch of pavement to take your baseline reading
- Your load manifest or a quick visual check of cargo stacking height
- A notepad, whiteboard, or phone note to log the number where every driver on the truck can see it
- 5-10 minutes before departure — this is not a step you skip when you're running late
The steps
1. Measure fully loaded, not empty
An empty box truck and a loaded one can differ by inches once cargo stacks near the roofline. Measure after loading is complete and the trailer or bed is fully settled, not before.
Drivers who measure an empty rig in the yard and then load pallets, ladders, or equipment on top are measuring the wrong vehicle. Common mistake: checking height once at the start of the week and never again after a load changes.
2. Zero the stick against pavement
Set the base of the height stick flat on the ground next to the vehicle, not against a curb, ramp, or uneven lot surface. A half-inch of slope at the base translates directly into a bad reading at the top.
The stick has to sit plumb and vertical for the arm to give you an accurate number. Lean it against the truck for stability while you extend it, but keep the base flat.
3. Extend the arm to the highest point of the load
Slide the extension arm up until it just clears the tallest fixed point on the vehicle — this usually means the roof of a box, the top rail of a flatbed load, or the highest antenna or light bar that doesn't fold down. Snug contact, not force.
Getting this wrong in either direction is dangerous. Stop the arm short and you'll clear a bridge you actually can't. Common mistake: measuring to the cab roof and ignoring a taller antenna or roof-mounted beacon a few inches higher.
4. Read the number and write it down
Read the marked measurement on the stick at eye level, not at an angle from below, which distorts the number by half an inch or more. Round down, never up — if it reads between markings, use the lower one.
Log that number somewhere visible in the cab: a dry-erase strip on the dash, a note taped to the visor, or a shared fleet log if you're managing more than one truck. A number in your head is a number that gets forgotten at 5 a.m.
5. Cross-check against posted clearance signs
Every low bridge, overpass, or parking structure should have a posted clearance sign, but a documented share of them are outdated, painted over, or simply wrong after resurfacing work. Treat the posted number as a second opinion, not the final word.
When your height stick reading and the posted sign disagree, go with whichever number is lower. A wide load sign regulations by state guide covers how clearance and oversize signage requirements shift depending on which state you're routing through in 2026.
6. Re-check after resurfacing, snow, or ice season
Road resurfacing adds pavement height and can shave an inch or two off clearance that was fine last year. Snowpack under a low structure does the same thing in winter months.
If you run the same low-clearance route year-round, don't assume January's clearance matches July's. Common mistake: relying on a clearance number that was accurate before a repaving project changed the road surface.
7. Re-measure after any load, tire, or suspension change
New tires, added ballast, a suspension lift, or a different trailer all change your height. Any of these means your last height stick reading is void.
Make re-measuring a standing rule after maintenance work, not an afterthought. A fleet running mixed equipment should treat height stick checks the same way it treats a pre-trip inspection — mandatory, logged, and repeated.
Troubleshooting
The arm won't stay extended at the height I need. Check the locking collar or pin — most sticks lock in fixed increments, so you may be between click-stops. Extend to the next full increment above your load, not below it.
My reading keeps changing between checks on the same truck. Tire pressure fluctuates with temperature and can shift height by a fraction of an inch. Check pressure before you measure, especially in cold months.
There's no posted clearance sign on my route. Treat any structure without a sign as unknown clearance and default to your height stick number plus a safety margin of at least 6 inches. Don't proceed on a guess.
GPS routing sent me under a bridge my height stick says I can't clear. Consumer and even commercial GPS apps miscategorize truck routes regularly. Your height stick reading overrides any app recommendation, every time.
The stick reads differently depending on who's holding it. Standardize the process: same flat spot, same base placement, same eye-level read. Inconsistent technique between drivers is the most common source of conflicting numbers on a fleet.
I don't have a height stick on this trip. Estimate conservatively using a known reference — most box trucks run 12 to 13.5 feet loaded — and avoid any route with posted clearance under 14 feet until you can measure properly.
Tools and resources
- QuickClick Compact Plus load height measuring stick — folds to cab-storage size, reads to 15 feet
- An oversize load sign for trucks and trailers if your height or width also puts you in oversize-load territory on the route
- A dash-mounted whiteboard or note system for logging the day's measured height
- State DOT websites for posted clearance databases on interstate and state routes
What to do next
Once clearance is confirmed, the next question on a low-clearance or oversize route is whether you need visible signage and flags, not just a height check. A best oversize load flags and signs for heavy haul guide covers what's legally required once your load crosses width or height thresholds in 2026.
FAQ
How do you use a height stick for low clearance routes?
Set the base flat on pavement next to your fully loaded vehicle, extend the arm to the highest fixed point, and read the marking at eye level. Log that number in the cab and re-check it after any load or tire change in 2026.
What is the standard clearance height for bridges and overpasses?
Most interstate overpasses run 13 feet 6 inches minimum, but older bridges, parking structures, and local roads can sit well under that. Never assume a posted number is current — resurfacing and repainting change actual clearance regularly.
Should I trust GPS truck routing over a height stick reading?
No. Your height stick reading is a direct physical measurement of your vehicle, while GPS apps rely on mapped data that is frequently outdated or miscategorized. Treat the height stick as the final word every time the two disagree.
How much does a load height measuring stick cost?
Compact folding height sticks that read up to 15 feet run in the low hundreds of dollars, while longer-reach models built for oversized loads and bridge checks cost significantly more. Check current pricing on the product page before ordering.
Do I need to re-measure height after every load?
Yes. Cargo stacking height, added ballast, tire changes, and suspension adjustments all change your actual clearance. A height stick reading from a prior trip is not valid for a new load configuration.
What happens if my height stick and the posted sign disagree?
Always default to whichever number is lower between your height stick reading and the posted clearance sign. Posted signs can be outdated after resurfacing work or simply wrong, so treat your own measurement as the safety baseline.
Can one height stick work for a whole fleet?
A single height stick can check any vehicle, but each vehicle needs its own individual reading since height varies by load, tires, and equipment. Log each truck's number separately rather than sharing one measurement across the fleet.
Is a height stick required by law?
No federal law mandates carrying a height stick, but drivers are legally responsible for clearance strikes regardless of posted signage. Carrying and using one is a practical safeguard, not a compliance checkbox.
One last thing
Most low-clearance strikes happen on routes drivers have run dozens of times without incident — familiarity, not unfamiliar roads, is the real risk. A height stick check takes under 5 minutes and costs nothing compared to a single roof-tear claim, so make it as routine as checking mirrors before you pull out in 2026.
