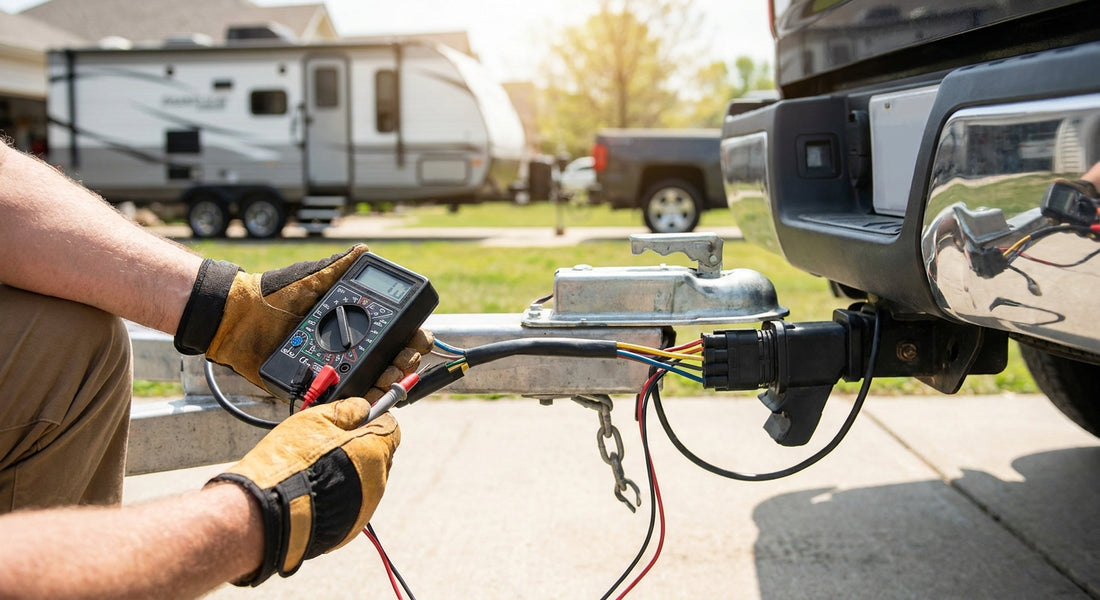

A trailer wiring harness test takes about five minutes at the hitch and tells you whether your brake lights, turn signals, and running lights will actually work before you pull out onto the interstate — skip it and you're towing blind with no way to signal the traffic behind you.
- A trailer wiring harness test needs a multimeter, a 7-way circuit tester, and five minutes at the hitch before every tow in 2026.
- Ground faults cause most trailer light failures — check the white ground wire before you blame a bulb.
- The VULCAN Wireless LED Tow Light Kit is the backup fix when a factory harness fails inspection with no time to chase wires.
- A flickering turn signal or dead brake light gets flagged at almost every DOT roadside check in 2026 — test first, tow second.
Why this matters
A trailer's lighting circuit runs off the tow vehicle's 12-volt system through a connector that sees rain, road salt, vibration, and years of plug-unplug cycles — it's the single most failure-prone part of any hookup. A blown fuse or a corroded ground pin looks fine sitting in the driveway and then fails the second you hit a pothole at highway speed.
DOT inspectors check trailer lighting on every roadside stop in 2026, and a dead brake light or a turn signal that won't flash is an easy out-of-service violation. Testing the harness before you load takes less time than filling out the paperwork after a citation, and it catches the exact failures — bad grounds, corroded pins, a blown fuse — that cause most lighting complaints on car haulers and utility trailers alike.
What you'll need
- A digital multimeter set to DC volts and continuity/ohms
- A 7-way (or 4-pin, depending on your trailer) circuit tester with LED indicators
- Dielectric grease for the pins after testing
- A wire brush or contact cleaner for corroded terminals
- Wiring diagram for your specific tow vehicle and trailer combination
- A backup lighting option like the VULCAN Wireless LED Tow Light Kit if the harness fails and you can't fix it before departure
If you're running a mixed fleet with both 4-pin and 7-pin trailers, keep an adapter on hand — mismatched connectors are one of the most common reasons a bad harness turns out to be a compatibility problem, not a wiring problem.
The steps
1. Inspect the connector before you touch a meter
Pull the plug apart and look at the pins under good light — corrosion shows up as green or white buildup, and bent pins won't seat against the trailer side even when the wiring itself is fine. This step catches roughly a third of electrical complaints before you ever plug in a tester, because a physical connection problem mimics a wiring fault almost exactly. Common mistake: assuming a clean-looking plug is a good plug — corrosion often hides inside the pin barrel where you can't see it without a flashlight.
2. Test the ground circuit first
Set the multimeter to continuity, touch one probe to the ground pin on the truck-side connector, and the other to bare metal on the truck frame — you should read close to 0 ohms. A bad ground is the single most common cause of dim, flickering, or dead trailer lights because every other circuit depends on it to complete the loop back to the battery. Target resistance is under 0.5 ohms in 2026-spec factory harnesses; anything higher points to a corroded ground point or a frayed wire.
3. Check running lights for steady voltage
With the truck's headlights on, probe the brown wire (running lights) at the connector and confirm you're reading close to 12 volts DC. A reading under 10 volts usually means a voltage drop somewhere upstream — a corroded splice, a pinched wire under the bed, or a failing ground. Expected outcome: steady 12V with the meter, no flicker when you tap the harness near the hitch.
4. Test brake lights and turn signals under load
Have someone press the brake pedal while you probe the correct pin (red or blue, depending on wiring convention) — you're looking for voltage that appears the instant the pedal is pressed and disappears the instant it's released. Do the same for left and right turn signals, confirming the flash rate matches the dash indicator. A slow or fast flash rate compared to the dash usually means a bad bulb or an LED conversion drawing less current than the flasher relay expects.
5. Confirm the connector matches the trailer
If you're crossing a 7-way truck connector to a 4-pin trailer or vice versa, verify the adapter wiring against a diagram rather than assuming pin-for-pin compatibility — auxiliary circuits like reverse lights and battery charge lines don't always carry over cleanly. Skipping this step is why a harness that tests perfect at the truck still produces no lights at the trailer. Check 4-pin to 7-pin trailer light adapters if your fleet runs mixed connector types.
6. Load-test the full circuit at the trailer end
Plug the 7-way (or 4-pin) tester directly into the trailer's connector and run through every circuit — running lights, left turn, right turn, brake, reverse if equipped — while a second person operates the truck. This is the only step that confirms the whole chain works end to end, not just the truck side or the trailer side in isolation. Expected outcome: every LED on the tester lights in sequence with no delay or flicker.
7. Grease the pins and document the result
Once every circuit tests clean, coat the connector pins with dielectric grease to slow corrosion before the next hookup, and note the test date on your pre-trip inspection sheet. A five-minute test logged consistently is worth more at a DOT stop than a perfect harness with no paper trail behind it.
Troubleshooting
- All lights dead, meter reads 0V everywhere — check the tow vehicle's fuse for trailer lights first; a blown fuse takes out the whole harness at once.
- One turn signal works, the other doesn't — isolate to that side's wire run; a pinched or chafed wire near the frame rail is the usual culprit, not the bulb.
- Lights work at the truck connector but not at the trailer — the fault is in the harness run itself or a bad adapter; test at both ends to bracket the problem.
- Brake lights stay on constantly — a shorted brake switch or a grounded wire in the brake circuit, not a wiring harness issue at all.
- Lights flicker only over bumps — a loose ground connection or a corroded pin making intermittent contact; re-seat and grease the connector.
- New LED trailer lights flash too fast — LEDs draw less current than incandescent bulbs, which can trip the flasher relay's timing; a load equalizer or LED-rated flasher fixes it.
Tools and resources
- Digital multimeter (DC volts and continuity)
- 7-way or 4-pin circuit tester with LED readout
- Dielectric grease and wire brush
- Guide: wiring a 7-way trailer plug to a truck for a full pin-by-pin reference
- A backup lighting kit for the truck bed in case the harness needs a real repair before the next run
What to do next
If testing turns up dead bulbs or cracked housings instead of a wiring fault, don't patch it and move on — a full guide on replacing trailer tail lights walks through swapping housings that won't hold a seal anymore. Bulbs and housings fail on a different schedule than the harness itself, and mixing the two problems is how a five-minute test turns into an hour of guessing.
FAQ
How do you test a trailer wiring harness before towing?
Test a trailer wiring harness with a multimeter for ground continuity and a 7-way circuit tester for running, brake, and turn signal circuits. Both checks together take about five minutes and catch the failures a visual inspection misses.
What causes trailer lights to not work at all?
A blown fuse on the tow vehicle is the most common cause of a completely dead trailer harness in 2026. A bad ground connection is the second most common cause, since every lighting circuit depends on it to complete.
Is a 4-pin or 7-way connector better for a trailer?
A 7-way connector is better for any trailer with brakes, reverse lights, or a charge line, since a 4-pin only carries running lights, turn signals, and brake lights. Most utility and car hauler trailers built after the early 2000s use 7-way as standard.
How much does it cost to fix a trailer wiring harness?
A basic harness repair with new connectors and wire runs costs under $50 in parts if you do the work yourself. A full harness replacement on a car hauler or utility trailer typically runs higher depending on wire length and connector count.
Why do my trailer turn signals flash too fast?
LED trailer lights draw less current than incandescent bulbs, which confuses a standard flasher relay into a rapid flash rate. Swapping to an LED-rated flasher or adding a load equalizer resolves the flash rate without touching the wiring harness itself.
Can you test a trailer harness without a multimeter?
A dedicated 7-way or 4-pin circuit tester with LED indicators works without a multimeter and covers most pre-tow checks. A multimeter is still the only way to confirm ground resistance and diagnose a partial voltage drop.
How often should you test a trailer wiring harness?
Test the harness before every tow if the trailer sits between uses, and at minimum weekly for trailers in daily fleet rotation through 2026. Connectors corrode faster in road salt and wet conditions, so winter operations warrant more frequent checks.
One last thing
Most bad-harness complaints in the field turn out to be a bad ground, not a bad wire — the ground pin carries the return path for every circuit, so one corroded connection there can look exactly like four separate failures. Check ground resistance first, every time, before you start chasing individual bulbs.
