How to Secure a Car on a Flatbed With Straps (2026)

Securing a car on a flatbed trailer wrong doesn't just risk the load — it risks every driver around you. This guide walks through the exact steps to strap down a vehicle correctly, the hardware you need, and the mistakes that cause loads to shift at highway speed.

TL;DR: To secure a car on a flatbed with straps in 2026, you need four-point tie-down using wheel straps or axle straps rated to at least the vehicle's gross weight per strap, with cam buckle or ratchet tensioners torqued until straps have no more than 1 inch of deflection. Position straps at 45-degree angles to the trailer deck, use edge protectors on frame contact points, and re-check tension after the first 10 miles. Skipping any of these steps — especially angle and re-tensioning — is how cars arrive damaged or don't arrive at all.

Why This Matters

A 3,500-lb passenger car in a 60-mph emergency stop generates over 10,000 lbs of force on its tie-down points. FMCSA cargo securement regulations (49 CFR Part 393) require minimum Working Load Limit (WLL) aggregate equal to the cargo weight for vehicle transport — meaning each of your four straps must contribute. A single under-tensioned strap effectively gives you a three-point system under load. That's the physics behind most flatbed car-transport damage claims.

What You'll Need

• Four ratchet wheel straps rated at 3,333 lbs WLL minimum (total aggregate WLL ≥ vehicle weight)
• Axle straps or basket straps if wheel-well clearance is limited
• Edge protectors / corner protectors for any strap contact on painted bodywork or frame edges
• Ratchet handles — at least 18-inch leverage arm for proper tensioning
• Tape measure — to confirm 45-degree strap angle
• Chocks — at least two, front and rear of one tire minimum
• Flatbed trailer with rated tie-down D-rings or side rails at correct spacing
• Gloves — ratchet straps under tension can strip skin fast

Plan for 30–45 minutes the first time you do this. Experienced haulers do a four-point tie-down in under 15 minutes, but not on the first run.

The Steps

Step 1: Inspect the Trailer D-Rings and Deck

Before the car touches the deck, check every D-ring or stake pocket you plan to use. A cracked weld or corroded anchor point will fail before the strap does. Confirm the deck surface is free of oil or standing water — both reduce friction and let the vehicle creep under load even when straps are tensioned. Mark the four anchor points you'll use, front-left, front-right, rear-left, rear-right, spaced to give you a 45-degree strap angle when the vehicle is positioned.

Common mistake: Using anchor points that are too far forward or too far back on the trailer, which forces straps to run at shallow angles. Angles flatter than 30 degrees from horizontal dramatically reduce the vertical hold-down component of the strap force.

Step 2: Load and Position the Vehicle

Drive or winch the vehicle onto the trailer so the front axle sits over the trailer's axle centerline. This keeps weight distribution balanced and reduces trailer sway. Turn the wheels straight and engage the parking brake. If the vehicle is inoperable or has no parking brake, you'll need additional chocking at all four wheels.

Centerline positioning matters for 2026 FMCSA compliance as well as physics — off-center loads shift the tongue weight and can lift rear trailer brakes off the ground during braking.

Expected outcome: Vehicle centered side-to-side within 3 inches, parking brake engaged, engine off.

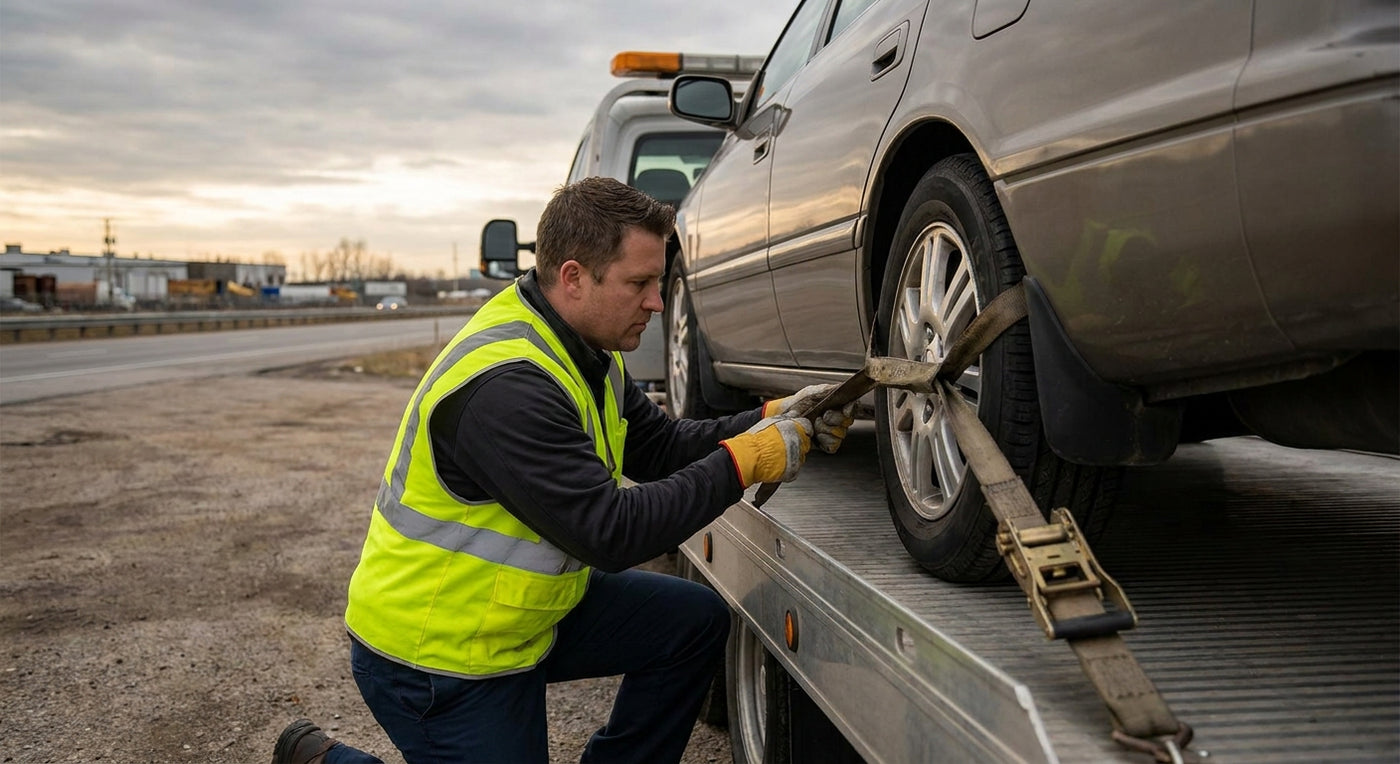

Step 3: Attach Wheel Straps to All Four Wheels

Loop a car hauler strap around each wheel, positioning the loop below the wheel centerline so tensioning pulls the tire down and inward toward the deck. The strap should contact the tire tread, not the sidewall — sidewall contact concentrates force on the weakest part of the tire and can cause a blowout in transit.

If your vehicle has low ground clearance and wheel straps won't seat correctly, switch to axle straps or basket straps routed under the axle housing. These distribute the load differently but are DOT-compliant when rated appropriately.

Common mistake: Leaving the strap loop high on the wheel, above the centerline. This creates upward rather than downward tension and the strap pops loose under road vibration.

Step 4: Route Straps to Trailer Anchors at 45 Degrees

Run each strap from its wheel to the nearest designated D-ring anchor. Use your tape measure or a visual reference: a 45-degree angle means for every 1 foot the anchor is away from the tire horizontally, it should be 1 foot lower vertically. This angle maximizes both the lateral restraint and the vertical hold-down force simultaneously.

Install edge protectors anywhere a strap crosses a frame rail, rocker panel, or lip. Even nylon straps at 1,500 lbs of tension will abrade paint and dent thin sheetmetal over a 200-mile haul.

Expected outcome: Four straps routed cleanly, no twists, no contact with brake lines or fuel lines, each at 40–50 degrees from horizontal.

Step 5: Ratchet to Working Tension

Tension all four straps simultaneously in stages — don't fully tension one before starting the others. Do two passes: first bring all four to hand-tight, then ratchet each to working tension. A properly tensioned strap deflects no more than 1 inch when you press it firmly with your thumb mid-span. If it deflects 2–3 inches, the strap is loose.

Working tension for a 3,500-lb vehicle: each strap should be loaded to roughly 500–875 lbs of tension (total aggregate 2,000–3,500 lbs across four straps). Most standard ratchets with an 18-inch handle achieve this in 6–8 full strokes once the slack is taken up.

Common mistake: Over-tensioning on lightweight vehicles. Applying maximum WLL to a 2,800-lb car can compress suspension components and damage struts or lower control arms.

Step 6: Secure All Loose Strap Tails

Ratchet handles in the locked position and loose strap tails whipping at 65 mph are both hazards. Fold and tuck excess webbing, or use velcro keepers or hook-and-loop bundles. A 6-foot tail of loose nylon can wrap a wheel, foul a brake rotor, or distract trailing drivers. This takes 90 seconds and is entirely skippable only if you enjoy roadside stops.

Step 7: Re-Check Tension After the First 10 Miles

Stop 10 miles from your origin point and check all four straps. New webbing stretches slightly under load, and straps that felt right in the yard will have 1–2 inches of additional deflection after initial highway tension. Re-ratchet to proper tension, check for any shifting in wheel strap position, and continue. On hauls over 150 miles, do a secondary check at the halfway point.

Expected outcome: All four straps within the 1-inch deflection spec, no visible creep in vehicle position on the deck.

Troubleshooting

Strap keeps slipping off the wheel: The loop is sitting above the wheel centerline or contacting the sidewall. Reposition below the centerline with the webbing in contact with the tread face. If the wheel well is too shallow, switch to axle straps.

Can't achieve a 45-degree angle with available anchor points: Move the vehicle forward or backward on the deck until the geometry works, or use wheel lift and dolly straps that allow more flexible routing from under the axle. Never compromise on angle by using a flat strap run — it will fail under a hard stop.

Strap vibrates loudly at highway speed: Excess slack in the webbing is resonating. Re-tension and tuck the loose tail. A drumming strap is not tight enough.

Vehicle shifted 2–3 inches on the deck mid-haul: This means initial tension was below working load or the vehicle crept before the 10-mile re-check. Pull over immediately, re-center if possible, and re-tension. If the vehicle can't be re-centered, the load is compromised — do not continue at highway speed.

Strap contacting fuel or brake lines: Reroute immediately. A webbing strap sawing against a brake line for 300 miles will wear through it. Use a short segment of hose or foam as a buffer if rerouting isn't possible, but rerouting is always the right call.

Can't get 1-inch deflection no matter how many ratchet strokes: The strap WLL is too low for the load or the ratchet mechanism is worn. Replace both. A ratchet that slips under load is worse than no ratchet because it gives false confidence.

Tools and Resources

• Car hauler straps — four-pack wheel straps with rated ratchets, 3,333 lbs WLL per strap
• Wheel lift and dolly straps — for low-clearance vehicles or axle-based tie-down configurations
• Edge protectors — rubber or plastic corner guards, available at any rigging supplier
• FMCSA 49 CFR Part 393 Subpart I — the federal cargo securement standard, available free at fmcsa.dot.gov
• Torque reference card — tape one to your trailer toolbox; lists WLL, tension targets, and re-check intervals by vehicle weight class

What to Do Next

Once you have the four-point tie-down dialed in, the next skill to build is hauling wide or tall vehicles — lowriders, lifted trucks, or equipment where standard wheel strap geometry doesn't work. Review the wide load accessories selection for oversize flagging, extended mirror kits, and the additional compliance gear required under 49 CFR Part 392 when cargo extends beyond trailer width.

FAQ

What's the minimum number of straps to secure a car on a flatbed? FMCSA regulations require at least four tie-down points for vehicle transport. Two straps per axle, one per wheel, is the standard configuration. Three straps do not meet the regulatory aggregate WLL requirement for most passenger vehicles.

Can I use ratchet straps on a car's frame instead of the wheels? Yes, but only if the frame tie-down points are rated and the manufacturer specifies them for towing. Most modern unibody vehicles have designated tow hooks — strap to those, not to suspension arms or bumper brackets, which can shear under load.

How tight should car tie-down straps be? Tight enough that the strap deflects no more than 1 inch under firm thumb pressure at mid-span. Over-tensioning damages suspension; under-tensioning lets the vehicle shift. The target aggregate WLL across four straps equals or exceeds the vehicle's gross weight.

Is it better to use wheel straps or axle straps for flatbed car hauling? Wheel straps are faster and work on most vehicles. Axle straps are better for low-profile vehicles where wheel-well clearance prevents proper wheel strap positioning. Many professional haulers carry both in 2026.

What angle should flatbed straps run at? Between 40 and 50 degrees from horizontal — target 45 degrees. Angles flatter than 30 degrees lose most of their vertical hold-down force. Angles steeper than 60 degrees lose lateral restraint. 45 degrees balances both.

Do I need to re-check straps during a long haul? Yes. Stop at 10 miles and again at the halfway point on hauls over 150 miles. New webbing stretches and traffic vibration works tension out of ratchets. A strap that passed inspection at the origin can be dangerously loose 100 miles later.

What's the WLL I need for a 5,000-lb truck on a flatbed? Aggregate WLL across all straps must meet or exceed 5,000 lbs. With four straps, each needs at least 1,250 lbs WLL. Standard 2-inch ratchet straps are typically rated 3,333 lbs WLL — those are compliant. Check the label tag on every strap before use; worn or damaged straps lose rated capacity.

Can flatbed straps damage a car's paint or body panels? Yes, if routed without edge protectors. Nylon webbing under 1,000+ lbs of tension will abrade paint at contact points within 50 miles. Use rubber or plastic corner protectors wherever the strap touches bodywork, rocker panels, or frame rails.

One Last Thing

The single most common cause of car-transport damage claims in 2026 isn't a strap failure — it's a strap that was never properly tensioned in the first place. Haulers who skip the 10-mile re-check account for a disproportionate share of load-shift incidents. Set a phone reminder before you pull out of the yard. That stop costs you 5 minutes; skipping it can cost you the vehicle and your MC authority.
