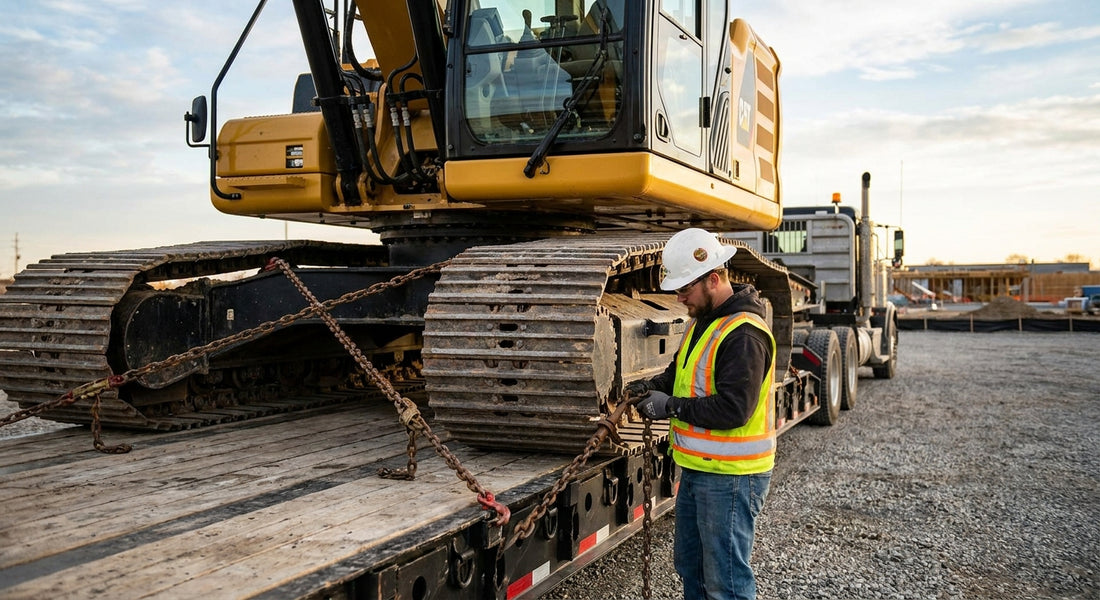

Chaining down a 30,000-pound excavator wrong doesn't cost you a warning ticket — it costs you a machine sliding off the trailer at 65 mph with nothing but a track pad between it and the truck ahead. This guide covers the tie-down points, chain grade, and binder tension you need to move tracked equipment legally and safely in 2026.
- Chaining down an excavator needs a minimum of four tie-down points and Grade 70 chain rated for the machine's weight.
- 49 CFR 393.100 requires tie-down working load limit at least half the excavator's weight, aggregated across all chains.
- VULCAN Folding Handle Ratchet Binders at 12,000 lb SWL cover most mini and midsize excavators - Buy.
- Route chains through frame lift points, never tracks alone, and tension at a 45-degree angle for best hold.
Why this matters
An excavator isn't a car. It has an uneven weight distribution, a boom that swings if the travel lock isn't engaged, and tracks that were never designed to be a tie-down anchor by themselves. Federal cargo securement rules under 49 CFR 393.100-136 require the aggregate working load limit of your tie-downs to equal at least half the weight of the machine, with a minimum of four separate tie-down points for equipment in this class.
Miss that math and you're not just risking a roadside inspection failure in 2026 — you're risking a shifted load on a curve, which is how excavators end up on their side in a ditch instead of on the jobsite. Getting the chain-down procedure right the first time is cheaper than any recovery call.
What you'll need
- Grade 70 or Grade 80 transport chain sized to the excavator's weight, ideally in a chain and binder kit that pairs the right chain length with matching binders
- Ratchet-style load binders rated above your chain's safe working load, not below it
- Corner protection for any chain that crosses a painted edge, hose, or hydraulic fitting
- A pry bar or breaker bar if your binder handle is stiff on the first pull
- 15-20 minutes per side before departure, plus a re-check stop within the first 25-50 miles
The steps
1. Position and stage the machine
Drive the excavator onto the trailer centered on the deck, with the counterweight over the axles rather than hanging off the tail. An off-center load changes how much force each chain has to hold, and a machine loaded too far forward or back overloads two tie-downs while the other two do almost nothing.
2. Lower the boom and engage the travel lock
Drop the bucket and boom flat against the trailer deck or into the travel cradle, and engage the swing lock on the upper structure. A boom that's still free to swing turns every pothole into a pendulum test for your chains, and that shock loading is what snaps hooks that would otherwise hold fine under a static load.
3. Select chain and binder rated for the actual weight
Match your chain grade to the machine, not the trailer's rated capacity. A 3/8-inch Grade 70 chain carries a 6,600-pound safe working load per chain leg — fine for a compact excavator in the 8,000-12,000 pound range, but four legs at 6,600 pounds each only gets you to 26,400 pounds of aggregate WLL, which is tight for anything pushing 40,000-50,000 pounds. Step up to Grade 80 or a higher-rated binder before you load, not after you've already routed the chain.
4. Identify frame tie-down points, not track lugs
Use the manufacturer-designated lift or tie-down points on the frame, undercarriage, or D-rings — most OEMs stamp or label these. Chaining directly around a track without a frame point concentrates the load on rubber or steel links that were engineered for ground contact, not for holding 10,000+ pounds of lateral force during a highway lane change.
5. Route chains at a 45-degree angle
Run each chain from the frame point down to the trailer deck at roughly a 45-degree angle, front and rear on both sides, forming an X pattern when viewed from above. A chain run nearly vertical resists vertical bounce but does almost nothing against the machine sliding forward under braking — the angle is what converts chain tension into resistance against both directions of movement.
6. Tension with the ratchet binder
Hook the binder to the chain, then ratchet until the chain is taut and the excavator doesn't shift when you push on it by hand. A folding handle ratchet binder rated to 12,000 pounds SWL gives you enough mechanical advantage to properly tension chain on machines up to roughly 40,000 pounds without needing a cheater bar, and the folding handle stays out of the way once it's locked down instead of snagging on the load during transit.
7. Run the WLL math before you drive
Add up the safe working load of all four chains and binders, and confirm that total meets or exceeds half the excavator's operating weight — that's the federal minimum, and it's the number a roadside inspector checks first. If your math comes up short, add a fifth tie-down rather than swap in an undersized binder that should be fine.
8. Walk around and re-check after the first miles
Walk the full perimeter, confirm every hook is fully seated, every binder handle is locked flat, and no chain is resting on a hose, wire loom, or painted panel without a corner protector underneath it. Pull over within the first 25-50 miles and re-tension — chain and rigging settle as the load compresses on the deck, and a chain that was tight at the yard is often loose an hour down the highway.
Troubleshooting
- Chain won't pull tight even with full ratchet travel. The chain is too long for the run — shorten by moving to the next link rather than leaving slack, since a binder can't compensate for six extra inches of chain.
- Binder handle won't fold flat. You're over-cranking past the binder's rated travel. Back off one click and re-seat the hooks; forcing the handle past its stop is what bends folding-handle binders.
- Chain is rubbing a hydraulic hose or paint edge. Stop and add corner protection before you drive one mile — vibration turns a rubbing chain into a cut hose within a few hundred miles.
- Load shifts side to side at highway speed. Your chains are running too close to vertical. Widen the angle toward 45 degrees so the chain resists lateral movement, not just vertical bounce.
- Excavator settles and chains go slack after the first stop. Normal — chain and hydraulic mounts compress under initial load. Re-tension at your first fuel or scale stop and it typically holds for the rest of the run.
Tools and resources
- Grade 70 or 80 chain and binder kit sized to your typical machine weight
- A second, higher-capacity binder set on the truck for oversized units
- Corner protectors stored in the cab, not buried in a toolbox on the trailer
- A tape measure or load height stick if the excavator's boom or cab pushes you into oversize territory
What to do next
If you're moving equipment heavier than a compact excavator on a regular basis, read the deeper breakdown on load binders for oversized machinery transport before you buy your next binder set — capacity math changes fast once you're past the 40,000-pound range.
FAQ
What size chain do I need to chain down an excavator?
A 3/8-inch Grade 70 chain, rated at 6,600 lb safe working load per leg, covers most compact excavators under 12,000 lbs. Heavier machines need Grade 80 chain or a higher-rated binder to keep the aggregate WLL at half the machine's weight.
How many tie-down points does an excavator need?
Four separate tie-down points is the federal minimum under 49 CFR 393.120. Larger excavators over 40,000 lbs often need a fifth point to hit the required aggregate working load limit.
Can I use straps instead of chains for excavator transport?
No — straps aren't rated for the abrasion and heat exposure of a tracked machine's undercarriage. Chain and binder combinations are standard for excavators, dozers, and other tracked equipment.
How tight should excavator tie-down chains be?
Tight enough that the machine doesn't move when pushed by hand, with no visible slack in any of the four chains. Re-check tension within the first 25-50 miles since rigging settles under load.
Is chaining an excavator to its tracks enough?
No. Tracks aren't rated as tie-down anchors — use the manufacturer's designated frame or lift points instead, which are engineered to handle lateral and vertical transport loads.
What's the DOT rule for securing heavy equipment?
49 CFR 393.100-136 requires the aggregate working load limit of all tie-downs to be at least half the cargo's weight, with a minimum of four tie-down points for equipment this size.
How much weight can a Grade 70 chain binder hold?
A standard 3/8-inch Grade 70 ratchet binder and chain combination holds 6,600 lbs safe working load. Heavier-duty options rated to 12,000 lbs or more exist for larger equipment.
Does an excavator need the boom locked during transport?
Yes. The swing lock and boom-down position keep the upper structure from shifting under braking or turns, which reduces shock loading on the tie-down chains.
One last thing
Most chain-down failures in 2026 aren't from the wrong chain grade — they're from a binder handle that wasn't fully locked flat before the truck left the yard. Run the walk-around every time, even on a machine you've hauled fifty times before.
