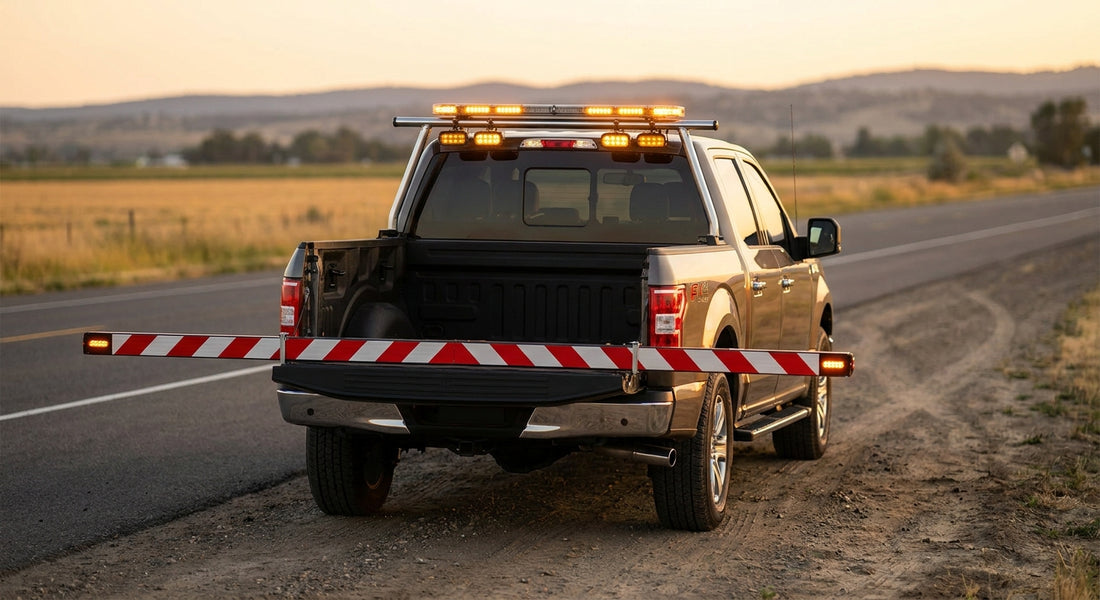

Tow lights and wide load bars are the difference between a legal, visible haul and a DOT stop that costs you hours and money. This guide walks through every decision point — from federal lighting minimums to bar length to mounting hardware — so you can spec the right setup before the load is on the trailer.
TL;DR: In 2026, any load exceeding 8 feet 6 inches wide requires at minimum two amber warning lights visible from 500 feet, a wide load sign meeting state dimension specs, and safety flags at the outermost corners. The specific bar length, light type, and sign size depend on your load width, haul state, and whether you run a pilot car. Get those three variables locked in before you buy anything.
Why This Matters
Wide load regulations are not uniform across all 50 states. A bar setup that clears inspection in Texas may fail in Oregon. Federal Motor Carrier Safety Administration (FMCSA) standards set the floor — states set their own ceilings. Getting this wrong means fines, forced stops, and liability if there's a collision. The 2026 regulatory environment has tightened enforcement on oversize permits, making proper lighting and signage more consequential than ever.
What You'll Need
- Wide load bar (length matched to your load's outermost dimension)
- Amber LED warning lights (minimum 2, often 4 for loads over 12 feet wide)
- Oversize load sign (aluminum, correct dimension for your state)
- Safety flags — orange or red, 18 x 18 inches minimum, at each protruding corner
- Mounting brackets or magnetic mounts rated for your bar weight
- 7-pin or 4-pin trailer harness compatible with your tow vehicle
- Load height measuring stick if your route includes low clearances
- 30–60 minutes for install and wiring test
Step 1 — Measure the Load, Not the Trailer
Measure the widest point of the load itself, not the trailer deck. Regulators care about what's sticking out into traffic lanes, not your equipment's nominal width. Use a tape from the outermost left edge to the outermost right edge with the load secured and settled.
Why it matters: a wide load bar that stops 6 inches short of the load edge gives drivers behind you a false read on your actual footprint. That's both a safety problem and a compliance problem.
Expected outcome: a precise width number in inches that drives every other decision — bar length, sign size, and whether you need a pilot car under your state's rules.
Common mistake: measuring the trailer and assuming the load fits within it. Overhanging machinery, boats, and prefab sections routinely extend 12–24 inches past the trailer rail.
Step 2 — Match Bar Length to Load Width
The bar must span the full width of the load or extend beyond it — never terminate short of the load's edge. Standard bars run from 48 inches up to 96 inches; heavy oversize configurations use telescoping bars that extend past 12 feet.
For loads between 8 feet 6 inches and 10 feet wide, a fixed 96-inch bar typically works. Loads from 10 to 14 feet wide need a telescoping or bolt-extended bar. Loads over 14 feet wide in most states require a pilot/escort vehicle in addition to the bar setup on the primary hauler.
In 2026, several states have updated their permit paperwork to require the bar's extended length to be documented on the oversize permit itself — confirm this with your state DOT before you move.
Common mistake: buying a bar for the trailer width and discovering mid-haul that the load overhangs the bar ends by 8 inches on each side.
Step 3 — Select the Right Warning Lights
Choose amber LED lights with a minimum 360-degree visibility arc, and confirm they meet SAE Class 1 or Class 2 output for your haul type. Class 1 lights (higher output, typically 65+ flash patterns) are required in most states for loads over 10 feet wide on highways with 55+ mph speed limits. Class 2 covers slower surface roads.
Mounting position matters: lights go at the outermost ends of the bar, aimed to maximize side and rear visibility. If your load extends above the bar height — a tall piece of machinery, for example — add a second tier of lights at load height.
LED draws significantly less amperage than halogen, which matters if you're running multiple warning lights plus a sign board off the same circuit. Map your draw before wiring.
Common mistake: mounting all lights on the rear face of the bar. Oncoming traffic and intersection cross-traffic need to see those lights from the side, not just from behind.
Step 4 — Mount the Oversize Load Sign Correctly
The sign must be horizontal, centered on the bar, and unobstructed. Federal guidance and most state rules require the text "OVERSIZE LOAD" or "WIDE LOAD" to be visible from both front and rear. Hinged aluminum signs — available in 12 x 60-inch for escort vehicles and 12 x 72-inch or 18 x 84-inch for primary haulers — fold flat when not in use, which matters for non-permit runs on the same rig.
The Vulcan oversize load sign for trucks and trailers, hinged aluminum 18 x 84 inch fits the primary hauler requirement for most states requiring the larger format. The 12 x 60-inch version is spec'd for escort vehicles. If your state allows a reversible sign that flips between "WIDE LOAD" and "OVERSIZE LOAD" faces, the Vulcan reversible hinged aluminum sign, 18 x 84 inch covers both in one unit.
Common mistake: mounting the sign at an angle to avoid a light bracket. Any tilt makes the lettering harder to read at speed and may fail a roadside inspection.
Step 5 — Attach Safety Flags at Every Protruding Corner
Place a safety flag at each point where the load or bar extends beyond the vehicle profile. Most states require a minimum 18 x 18-inch flag in orange or red. Flags go at the outermost corners of the load, and at any rear overhang beyond 4 feet.
The Vulcan safety flag with dowel, bright orange vinyl-coated nylon mesh, 18 x 18-inch 4-pack gives you the full corner coverage in one order. If your bar setup includes mounting brackets with wire loops, the wire-loop flag version mounts without tools. For loads with spring-mount overhang points, the Vulcan heavy-duty spring warning flag kit with universal mounting bracket holds position even at highway speeds.
Common mistake: using a single flag at the rear center. Flags need to mark every dimension the load introduces — left corner, right corner, rear overhang — not just signal "something wide is here."
Step 6 — Test the Full Electrical Circuit Before You Move
With the bar mounted and wired, do a static light test with a second person watching from 500 feet. Confirm all amber lights are visible, all flash patterns cycle correctly, and the sign light (if your sign has backlight capability) illuminates. Walk the full perimeter and verify no flag is obstructed by the load itself.
In 2026, body cameras on enforcement vehicles mean a bad light setup gets documented before you even know you've been spotted. A 10-minute static test is cheaper than a citation and a forced stop.
Common mistake: testing only the lights at the truck — not walking out to the 500-foot line to verify actual visibility.
Troubleshooting
Lights flicker at speed: Check the connector at the 7-pin plug first. Vibration works connections loose. A locking collar or electrical tape wrap on the plug fixes 80% of flicker complaints.
Sign rattles on the bar: The mounting bracket bolts have backed out. Use nylon-insert lock nuts instead of standard hex nuts on sign hardware. Recheck after the first 50 miles.
Flag tears off at highway speed: Vinyl-coated flags outlast jersey mesh in sustained highway wind. If you're losing flags above 60 mph, switch to the vinyl-coated nylon mesh construction and check that the dowel is fully seated.
Bar sags in the middle on wide spans: A center support bracket or a second mounting chain point eliminates sag on bars over 84 inches. Sag changes your light angles and puts the sign text out of level.
Amber lights fail DOT inspection for output: Confirm your lights carry a current SAE certification stamped on the housing. Uncertified imports may produce the right color but fail photometric output tests.
State inspection rejects sign size: 12 x 60-inch signs are escort-vehicle spec. If your primary hauler needs an 18 x 84-inch sign and you've mounted the smaller one, you'll fail. Keep the correct sign size documented with your permit paperwork.
Tools and Resources
- Tape measure (25-foot minimum)
- Multimeter for circuit testing
- Torque wrench for bracket hardware
- QuickClick compact plus load height measuring stick, measures up to 15 feet — critical for routes with posted clearance limits
- State DOT permit portal for your haul states — bookmark it, requirements change
- Vulcan flags, oversize load banners and magnets kit — covers banners, magnets, and 8 flags in one kit for operators who run both primary and escort setups
What to Do Next
Once your tow lights and wide load bar are dialed in, the next compliance layer is cargo control — making sure the load itself is secured to the spec your permit requires. The guide on best tie-down systems for side-by-side transport covers tie-down selection for non-standard load profiles, which pairs directly with wide load setups.
FAQ
What's the minimum light requirement for a wide load in 2026? Federal minimums require 2 amber warning lights visible from 500 feet, but most state oversize permits for loads over 10 feet wide require 4 lights — two front-facing and two rear-facing. Always check your specific state's permit conditions.
Is a wide load bar required by law, or just recommended? A physical bar is not universally mandated by federal law, but most states require that warning lights and signs be mounted at the outermost edges of the load. A bar is the standard way to achieve that positioning. Some states explicitly require a bar in their oversize permit language.
How long does it take to install a wide load bar and lights? A basic setup on a familiar rig takes 30–45 minutes. First-time installs or telescoping bars with wiring runs take 60–90 minutes. Budget extra time for the electrical test.
What size oversize load sign do I need for my truck? Primary haulers typically require 12 x 72-inch or 18 x 84-inch signs depending on the state. Escort vehicles use 12 x 60-inch. Check your permit — the required dimensions are listed on the permit face.
Can I use magnetic mounts for the wide load bar? Magnetic mounts work for lighter bars on smooth cab surfaces. For bars over 6 feet and loads over 10 feet wide, bolt-through or rack-mount brackets are more secure at highway speeds. Magnetic mounts are best for escort vehicles, not primary haulers.
Do safety flags need to be orange, or can they be red? Federal guidance allows both orange and red. Some states specify orange only. If you haul multi-state, orange is the safer default since it satisfies all state requirements that specify a color.
How do I know if my amber lights are Class 1 or Class 2? The SAE classification is stamped or printed on the light housing. Class 1 shows higher candela output and more available flash patterns. If the housing shows no SAE marking, treat it as uncertified and replace it before a permit haul.
What happens if my wide load bar is too short for my load? The warning lights and sign will not mark the actual outermost edge of the load. That's both a safety hazard for other drivers and a violation under most state oversize permit conditions. DOT inspectors measure the gap — a bar that ends 6 inches short of the load edge is citable.
One Last Thing
The most common reason operators get flagged at weigh stations in 2026 is not missing lights — it's lights that are present but mounted inboard of the load edge. The bar length is the single most under-checked spec in a wide load setup. Measure the load, set the bar to match, and the rest of the compliance picture falls into place.
