Picture this: you're twelve miles down a washed-out forest road when your front tires break through soft mud and dig in past the axle. The traction boards are still rattling around loose in the truck bed, buried under a tow strap and a jack, and you're on your knees digging through gear while the truck sinks another inch. Bolt a quick-release mount to your winch bumper before that trip and the boards come off in two seconds flat, ready to slide under the tires the moment you need them.

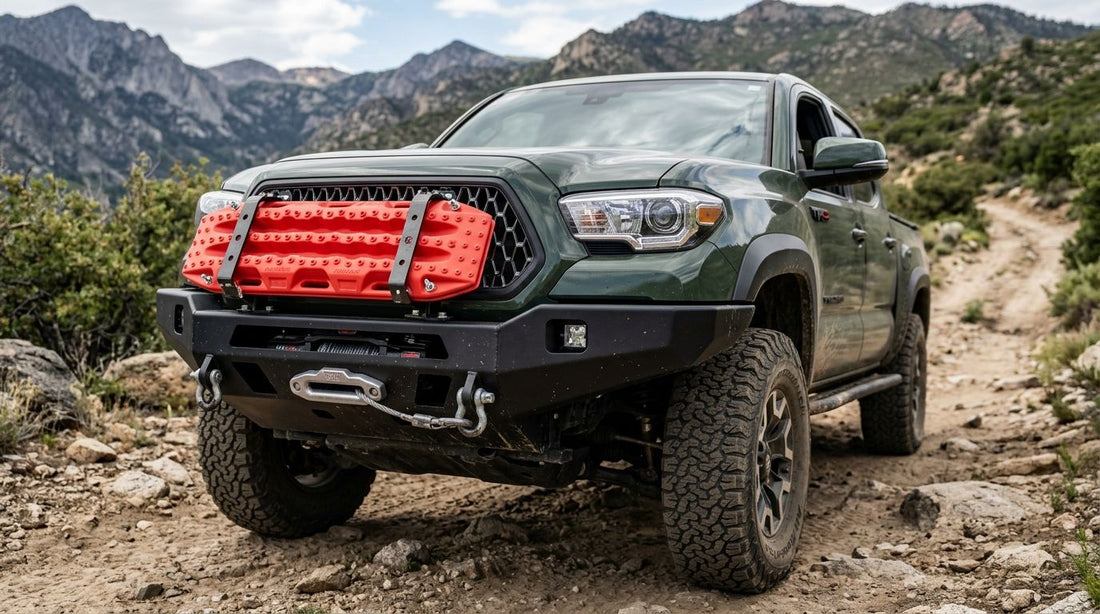

- Quick-release mounts bolted through the winch bumper's face plate hold traction boards flush and rattle-free at highway speed.
- Check bumper wall thickness before drilling — thin tube steel around the winch mount can lose rated pull capacity.
- Bumper-face mounts beat roof-rack mounts for trucks under 6,000 lbs GVWR because they don't raise the center of gravity.
- Torque-check every mounting bolt after the first 100 miles; vibration backs out fasteners faster than most drivers expect.
- A properly mounted traction board setup on a winch bumper adds no more than 15-20 lbs per side to the front end.
Why Mounting Traction Boards to a Winch Bumper Matters
A traction board thrown loose in a truck bed shifts under braking, scratches paint, and — worse — becomes a 12-pound projectile in a rollover. Mounting the boards to the winch bumper instead keeps them accessible from outside the cab, out of the cargo area, and secured against a structural point instead of a tailgate or bed rail that flexes.
It also solves the speed problem. In a stuck situation, every second spent hunting for gear buried under a spare tire or a cooler is a second the truck sits deeper. Bumper-mounted boards are visible, reachable without opening a tailgate, and don't require moving anything else to get to them.
Before You Start
- A winch bumper with a flat, unobstructed mounting surface on the face or sides — most aftermarket steel bumpers built after 2020 have this, but check for existing brackets, D-rings, or light mounts that will conflict.
- A quick-release mount kit rated for your board's weight and the correct bolt pattern for your board brand — mounts are not universal across board manufacturers.
- A drill, grade 8 hardware, and a torque wrench — do not substitute grade 5 bolts on a bumper mount that will see repeated vibration.
- The gotcha: many winch bumpers use thin-wall tube steel (1/8 inch or less) around the winch mounting plate to save weight. Drilling new holes too close to that plate can weaken the section that carries winch pull-force. Measure at least 3 inches of clearance from the winch mount edge before you drill anything.
Choosing the Right Mount for Your Winch Bumper
Two mounting styles cover almost every setup: bolt-through brackets and quick-release cam mounts. Bolt-through brackets are permanent, cheaper, and stronger for boards that rarely come off. Quick-release cam mounts cost more but let you pull a board free with one hand in under three seconds — the difference matters when you're the one stuck.
| Mount Type | Install Time | Board Access | Best For |
|---|---|---|---|
| Bolt-through bracket | 30-45 min | Requires a wrench | Fleet trucks, boards rarely removed — Buy |
| Quick-release cam mount | 45-60 min | One-hand, no tools | Solo off-road recovery, frequent use — Buy |
| Roof-rack crossbar mount | 20-30 min | Requires climbing up | Trucks with existing rack, light-duty trails — Hold |
If your bumper doesn't have flat real estate to work with, a set of winch mounting plates can create a secondary flat surface without replacing the whole bumper. That's often cheaper than buying a new winch bumper just to gain mounting space in 2026.
Installing Quick-Release Mounts on a Winch Bumper
Set up your mounting layout
- Hold each board against the bumper face in the position it will live, keeping at least 3 inches from the winch mounting plate and any light mounts.
- Mark the four bolt-hole positions per mount with a center punch so the drill bit doesn't wander on the steel.
- Check that the boards, once mounted, won't block the winch fairlead, hooks, or license plate lighting.
Expected result: both mount locations are marked, symmetrical side to side, with clear space around the winch mechanism.
Drill and bolt the brackets
- Drill pilot holes at each marked point using a bit sized for your grade 8 hardware — typically 3/8 inch or 1/2 inch depending on the mount kit.
- Deburr each hole and apply a rust-inhibiting primer to the bare metal edge before the bolt goes in.
- Bolt the bracket base to the bumper using the included backing plate on the inside of the tube if the bumper wall is under 3/16 inch thick.
- Torque each bolt to the mount manufacturer's spec — most quick-release kits call for 35-45 ft-lbs on 3/8 inch grade 8 hardware.
Expected result: the bracket doesn't shift when you pull on it by hand, and the bolt heads sit flush against the backing plate with no gap.
Attach the traction boards
- Slide each board's mounting tabs into the cam levers on the bracket.
- Rotate the cam lever to the locked position — you should feel a hard stop, not a soft click.
- Give the board a firm shake test in three directions: up-down, side-to-side, and fore-aft.
Expected result: zero play in any direction. If the board shifts more than 1/8 inch under a hard shake, the cam tension needs adjustment or the board isn't fully seated.
Mounting to a Roof Rack Instead
Some trucks — especially those already running a full-size rack for a rooftop tent or cargo box — mount traction boards to a roof crossbar instead of the bumper. This works for boards used occasionally on mild trails, but it raises the center of gravity and makes the boards harder to reach when the truck is nose-down in a rut. For anything beyond weekend overlanding, a bumper mount stays lower, stays closer to the ground where the boards actually get used, and doesn't add wind noise at highway speed.
Keeping the Mount Safe on Rough Roads
A mount that holds still in the driveway can still fail on washboard roads at 45 mph. Re-torque every bolt after the first 100 miles of driving — vibration seats the hardware and often loosens the initial torque by 10-15%. After that, check torque every 3,000-5,000 miles or before any extended off-road trip.
Never mount traction boards directly over or in front of the winch fairlead — if the winch line needs to run out under load, a board in the way turns a routine recovery into a pinch-point hazard. Keep a recovery strap and shackle stored separately from the board mounts so the winch line path stays clear at all times.
“If the mount rattles at 20 mph, it will fail at 60.”
Troubleshooting Common Mounting Problems
- Boards rattle at speed: cam tension is too loose or the bracket bolts backed out. Re-torque first; adjust the cam lever second.
- Bolts keep backing out: switch to a thread-locking compound rated for outdoor vibration exposure — standard blue thread locker degrades faster in constant temperature swings.
- Mount blocks the winch fairlead: move the bracket outboard by at least 2 inches, or split the boards to opposite sides of the bumper instead of stacking them center.
- Bracket flexes under load: the bumper wall is too thin for a direct bolt — add a backing plate on the inside of the tube to spread the load.
- Boards won't seat fully in the cam mount: check for mud or ice buildup in the mounting tabs; a board that's slightly warped from heat exposure won't lock flush either.
Maintaining Your Mounts
Rinse mud and road salt off the brackets after every trail trip — steel mounting hardware corrodes fast once salt gets into the threads, and a seized bolt is much harder to service in the field than in a garage. Check the cam lever spring tension every few months; a weak spring is the most common reason boards start rattling loose after a year or two of use.
Keep spare grade 8 hardware in the truck's tool box in case a bolt shears on a rough trail. TruckNTow's recovery gear customers running daily off-road routes typically replace mounting bolts every 12-18 months as routine maintenance, not as a failure repair.
FAQ
Can you mount traction boards to any winch bumper?
Most winch bumpers with a flat face or side panel can take a bolted or quick-release mount, but thin-wall tube steel near the winch plate may need a backing plate for a secure hold. Measure clearance from the winch mount before drilling in 2026-model bumpers or older.
How much weight do traction board mounts add to a winch bumper?
A pair of quick-release mounts with boards attached typically adds 15-20 lbs per side. That's negligible for most bumpers rated to carry a winch weighing 80-100 lbs already.
Is a quick-release mount better than a bolt-through bracket?
Quick-release mounts win for anyone who removes boards often, since they release in seconds without tools. Bolt-through brackets cost less and work better for boards that stay mounted permanently.
Do traction board mounts interfere with the winch cable or fairlead?
They can if mounted too close to the winch mechanism. Keep at least 3 inches of clearance from the fairlead and hook storage to avoid blocking the cable path during a pull.
How often should you check traction board mount bolts?
Re-torque bolts after the first 100 miles of driving, then check every 3,000-5,000 miles or before extended off-road trips. Vibration loosens initial torque faster than most drivers expect.
Can traction boards be mounted on a roof rack instead of a bumper?
Yes, but a roof mount raises the center of gravity and makes the boards harder to reach when a truck is stuck nose-down. Bumper mounts stay lower and closer to where the boards actually get used.
What hardware grade should be used for traction board mounts?
Use grade 8 bolts, not grade 5, since the mount sees repeated vibration and shock loading on rough roads. Add a thread-locking compound rated for outdoor exposure to keep bolts from backing out.
Why do traction board mounts rattle after a few months?
A rattle usually means the cam lever spring has weakened or the mounting bolts have loosened from vibration. Check cam tension first, then re-torque the bracket bolts before assuming the mount is defective.
One Last Thing
Most drivers mount traction boards flat against the bumper face and call it done — but angling the mount 10-15 degrees outward, so the board's textured surface faces slightly down and out, makes it easier to grab and slide under a tire without crouching in mud. It's a small adjustment that costs nothing extra and saves real time in a stuck situation.
A winch bumper set up right does more than hold a winch — it becomes the staging point for every piece of recovery gear you'll need in a hurry. Get the mounts torqued, the clearance checked, and the boards seated tight before the next trip, not during it.
