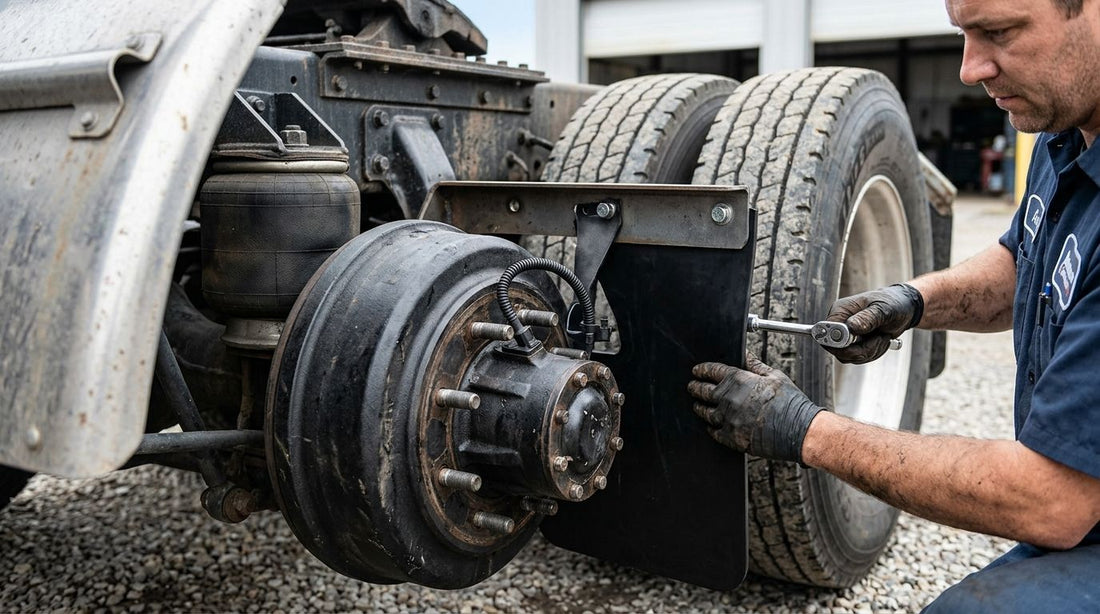

Imagine crawling under a loaded trailer at a truck stop at 2 AM because a mud flap tore loose and shredded itself against the tandem axle, and now you're staring at an ABS wheel sensor bracket caked in road film that you have to work around blind. Instead of bolting a flap on and hoping it clears the sensor, measure the ABS sensor's position first, then mount the hanger with a fixed clearance gap so the flap never contacts the tone ring, the sensor wiring, or the harness routing clip. Get the clearance right once and you eliminate the two most common ABS-related mud flap failures: false fault codes and shredded sensor wiring.
- Mount mud flap hangers with at least 1.5 to 2 inches of clearance from the ABS sensor housing and tone ring.
- Measure sensor position before drilling — never eyeball it against the frame rail.
- Route wiring harness clips away from the flap's flex zone to stop chafing at highway speed.
- A dragging or misaligned flap is the top cause of intermittent ABS fault codes on tandem axles in 2026.
Why This Matters
A mud flap mounted too close to an ABS wheel sensor doesn't fail in the shop — it fails on the interstate once road spray and vibration push the flap into the sensor housing or the wiring harness. That contact wears through insulation, corrodes the connector, and eventually triggers an ABS fault light that pulls a truck out of service until a technician tracks down what looks like a sensor problem but is actually a mounting problem. Fleet techs report this exact failure pattern repeatedly on tandem trailer axles where flap hangers get replaced without re-checking sensor clearance.
Getting this right the first time also protects you from a roadside inspection flag. DOT inspectors check for mud flap coverage and condition during Level I and Level II inspections, and a flap that's been re-bent or trimmed to clear a sensor after the fact rarely looks compliant. Doing the layout correctly during install saves you a second trip under the trailer later.
Before You Start
- Tools and materials: tape measure, torque wrench, drill with correct bit for your hanger bracket, replacement mud flap hangers if the originals are bent or rusted, and a marker or grease pencil.
- Access needed: the trailer or truck should be on level ground with wheels chocked — you'll be working directly under the axle near a live wiring harness.
- The gotcha that bites mid-install: a flap that clears the sensor when the axle is stationary can still flex into it at 65 mph once road air pressure pushes the rubber inward. Build in extra clearance beyond what looks adequate when the truck is parked.
Locate the ABS Sensor and Tone Ring
- Find the ABS sensor housing at the wheel hub — it's a small cylindrical unit with a wire running back toward the frame, usually mounted near the tone ring on the axle spindle.
- Trace the wiring harness from the sensor back to where it clips onto the frame rail or axle housing, noting every clip point.
- Measure the distance from the sensor housing to the nearest point where a mud flap hanger would normally sit.
Expected result: you should have a clear measurement, in inches, from the sensor to your planned hanger location before you touch a drill.
Mount the Mud Flap Hanger Bracket
- Position the hanger bracket so its inside edge sits at least 1.5 to 2 inches from the ABS sensor housing and any exposed wiring.
- Mark your bolt holes on the frame or mud flap bracket mount point using the manufacturer's hole pattern.
- Drill pilot holes, then bolt the hanger in place and torque to the bracket manufacturer's spec — an under-torqued hanger vibrates loose within a few thousand miles.
Expected result: the hanger sits solid with no play when pushed by hand, and the sensor housing remains fully visible and untouched.
Set the Flap Clearance and Hang the Flap
- Hang the mud flap on the bracket and let it settle to its natural position.
- Check clearance from the bottom corner of the flap to the tone ring and sensor wiring, both at rest and by manually flexing the flap inward to simulate highway airflow.
- Trim the top corner of the flap if needed to open up sensor clearance — never trim the bottom, which is what keeps road spray coverage compliant.
Expected result: the flap clears the sensor by at least an inch even under simulated flex, with no wiring pinched between the flap and the bracket.
Route and Secure the Wiring Harness
- Re-clip any ABS wiring that runs near the new hanger so it sits at least 2 inches from the flap's swing path.
- Use zip ties or factory harness clips rated for underbody heat and road exposure — standard indoor zip ties crack and fail within months.
- Do a final visual check with a flashlight, confirming no harness segment rests against the mud flap or hanger bracket.
Expected result: wiring runs clean and taut with zero contact points against the flap assembly.
Mounting on Dual Rear Axles vs a Single Trailer Axle
The steps above cover a single axle position, but tandem and tridem trailer setups need the same clearance check repeated at every axle, since ABS sensor placement can shift slightly between the front and rear axles of a tandem set. On a straight truck with dual rear wheels, check clearance on both the inner and outer wheel positions separately — inner dual mud flaps sit closer to the sensor housing than most installers expect.
Troubleshooting
- ABS fault code appears right after install: recheck wiring harness routing first — a pinched wire from the new hanger is the most common cause, not a bad sensor.
- Flap drags on pavement at speed: the hanger is mounted too low or the flap is oversized for the axle position; reposition higher rather than trimming the bottom edge.
- Flap flutters into the sensor at highway speed but clears at rest: add a stiffer flap material or a top brace to reduce inward flex under airflow.
- Bracket loosens within weeks: confirm torque spec was met and check for missing lock washers — vibration on tandem axles works bolts loose fast.
- Sensor reads intermittent after a cold start: inspect for flap material stiffened by cold contacting the sensor housing only in freezing conditions; this is common with flaps rated for winter driving that haven't been clearance-checked in cold flex.
Customize Your Setup
Once clearance is dialed in, the flap material and hanger style you choose matter for how long the setup holds up. Fleets running heavy winter routes should compare options in the mud flaps ranked by durability breakdown before committing to a full-fleet swap, since not every flap compound handles repeated cold flex near a sensor housing the same way. If the ABS fault turns out to be wheel-end related rather than mounting related, a look at wheel bearing and hub condition is worth doing before you blame the flap.
TrucknTow stocks mud flap hardware built for exactly this kind of clearance-sensitive install, and the team has been serving trucking professionals out of Detroit since 1959 — that's a long run of watching the same mounting mistakes repeat across fleets.
FAQ
How much clearance does a mud flap need from an ABS sensor?
Keep at least 1.5 to 2 inches between the mud flap hanger and the ABS sensor housing, checked both at rest and with the flap flexed inward to simulate highway airflow. Less clearance risks wire chafing and false fault codes.
Can a mud flap cause an ABS fault code?
Yes, a mud flap that contacts the sensor housing or pinches the wiring harness can trigger an intermittent ABS fault code that looks like a sensor failure. Checking flap clearance before replacing a sensor saves an unnecessary part swap.
Where is the ABS sensor located on a semi truck axle?
The ABS sensor sits at the wheel hub near the tone ring on the axle spindle, with a wiring harness running back to the frame rail or axle housing. Trace the wire before planning any mud flap hanger position.
Do tandem trailer axles need separate ABS clearance checks?
Yes, sensor placement can shift slightly between the front and rear axles of a tandem set, so each axle position needs its own clearance measurement. Skipping this on the rear axle is a common cause of repeat fault codes.
What's the standard air gap for a heavy-duty ABS sensor?
Most heavy-duty ABS sensors specify an air gap between roughly 0.020 and 0.080 inch between the sensor tip and tone ring teeth, per common Bendix and Meritor service specs. Mud flap hardware should never come close enough to affect this gap.
Why does my mud flap only trigger an ABS code in cold weather?
Cold temperatures stiffen flap rubber, which can push a marginally-clearanced flap into the sensor housing only when the material is rigid. Rechecking clearance with a winter-rated flap compound usually resolves it.
Should I trim a mud flap to clear an ABS sensor?
Trim the top corner of the flap if it's close to the sensor, never the bottom edge, since bottom coverage is what keeps the flap DOT-compliant for road spray. Repositioning the hanger is a better first fix than trimming.
One Last Thing
Most installers check mud flap clearance once, at install, with the truck sitting still — but the failure almost always shows up under highway airflow, not in the shop. Flex-test every flap by hand before you call the job done in 2026, because that ten-second check catches the exact failure mode that a static inspection misses.
