Picture rolling up to a night recovery on the interstate with a strobe bar rattling loose after 40 miles of highway vibration - a bad mount doesn't just look unprofessional, it can shear bolts and drop several pounds of aluminum and LEDs onto the roof at 65 mph. Getting this install right the first time protects your equipment, your crew, and your DOT compliance record for the rest of 2026.
- Mounting a light bar on a tow truck roof takes a reinforced bracket, 10-gauge wire, and a relay - a VULCAN Wireless LED Tow Light Kit works for plug-and-play wiring: Buy.
- A 50-inch light bar adds roughly 3 inches of overhead clearance operators must log before dispatch in 2026.
- Torque roof bolts to 15-20 ft-lbs and re-check after 50 miles of driving to stop bolt back-off.
- Run wiring through the cab's factory firewall grommet, not a fresh drilled hole, to keep the harness dry.
Why This Mounting Job Matters
A roof-mounted light bar is what makes a tow truck visible from a quarter mile out on a dark shoulder, and most state DOT codes require amber warning lighting to be operating any time the truck is stopped in a travel lane. TruckNTow has outfitted trucking and towing professionals with recovery and lighting gear since 1959 out of Detroit, and the mounting failures that show up in warranty claims almost always trace back to two things: undersized wire and skipped torque checks. Get those two right and the rest of the install is straightforward.
Selecting the Right Light Bar and Mounting Hardware
Before you touch a drill, confirm the bar's weight, wattage, and bolt pattern match what your roof rail or permanent mount kit can handle. A 50-inch bar typically weighs 8 to 15 pounds fully assembled, and that weight sits at highway speed under constant vibration, so undersized brackets fatigue and crack within a season.
Here's what you'll need on the bench before you start:
- A light bar rated for your application - check a light bars for wrecker and rollback trucks guide before buying if you haven't picked one yet
- Stainless mounting brackets rated for the bar's full weight, not just its listed shipping weight
- 10-gauge marine-grade wire for bars pulling over 300 watts, 12-gauge for anything smaller
- A 40-amp relay and an inline fuse matched to the bar's amp draw
- A torque wrench, drill with step bit, dielectric grease, and heat-shrink connectors
- Roughly 2 to 3 hours of shop time for a first-time install
If your truck already runs a mirror-mounted beacon, a mirror mounting bracket built for that purpose keeps the roof clear for the main bar and gives you a second, independent warning point.
Checking Roof Compatibility and Clearance
Measure your cab's existing overhead clearance before you commit to a bar length. Most rollback and wrecker cabs run 13.5 to 13.6 feet stock, and a 50-inch light bar with its bracket adds roughly 3 inches to that number - enough to clip a low parking structure or drive-thru canopy if the driver isn't warned.
Check the roof skin for existing rib reinforcement before drilling. Flat aluminum cab roofs need backing plates behind every bolt hole; steel roofs with factory rib channels can often take the bracket load without one. Skipping the backing plate on aluminum is the single most common cause of a bar tearing loose in the first 500 miles.
The Mounting and Wiring Steps
-

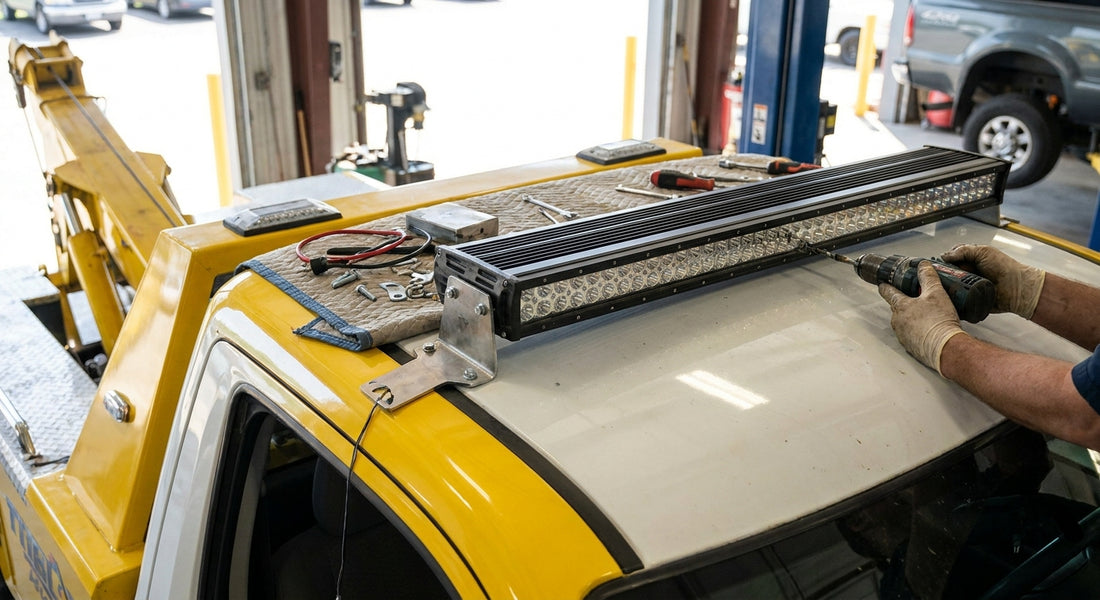

Dry-fit the bracket and mark all bolt holes with a center punch before drilling. This confirms bolt spacing clears interior headliner supports and wiring runs. Expected outcome: a bracket that sits flush with zero rocking when pressed by hand. Common mistake: drilling one hole at a time without a template, which walks the bit and leaves oval holes that never seal properly.
-
Drill and seal each hole with a step bit sized to the bolt diameter, then run a bead of polyurethane sealant around every hole before the bolt goes in. This step stops water intrusion into the cab, which is the second-biggest warranty complaint after loose brackets. Expected outcome: a wet-out ring of sealant squeezing from under the bracket edge once torqued.
-
Torque every bolt to 15-20 ft-lbs in a cross pattern, the same sequence you'd use on a wheel, so the bracket seats evenly instead of tilting on one high corner. Common mistake: torquing bolts in a straight line front to back, which cocks the bracket and cracks the sealant bead.
-
Run the wiring through the factory firewall grommet rather than a new hole, feeding it down to the fuse box side of the battery. Splice in the relay and fuse close to the battery, not at the bar end, so a short trips the fuse before it can melt dash wiring. If you're unfamiliar with the sequence, a guide on wiring strobe lights to a vehicle walks the relay-to-switch order step by step.
-
Ground the relay directly to the frame or a factory ground point, never to a sheet metal panel alone, since panel grounds corrode and cause intermittent flicker within a year. Expected outcome: a solid, flicker-free light at idle and at 2,500 RPM.
-
Test under load by running the bar for 15 minutes with the engine idling, then check bracket temperature and bolt torque again once the truck has 50 miles on it. Vibration settles hardware in the first tank of fuel, and a bolt that reads 18 ft-lbs at install can back off to 12 ft-lbs by then.
Safety Checks Before Your First Run
Confirm the bar's flash pattern and color meet your state's DOT requirements before the truck goes back into rotation - amber-only in most states for private tow operators, with red or blue reserved for law enforcement and fire in nearly every jurisdiction as of 2026. Check that the switch panel is within easy reach of the driver's seat, not buried under the dash, since a second spent fumbling for a switch in traffic is a second too long.
Inspect the wiring harness for chafe points anywhere it crosses a door jamb or roof rail edge, and wrap any exposed run in split loom. A chafed wire against bare metal is a slow-building short that usually shows up as an intermittent flicker weeks before it fails outright.
Maintenance and Care After Installation
Re-torque every mounting bolt after the first 50 miles, then again at 500 miles, and fold a torque check into your regular pre-trip inspection after that. Bolts that read below 12 ft-lbs on a recheck need fresh sealant and a full re-torque, not just a quarter turn.
Clean the lens covers monthly with a non-abrasive cleaner - road film and salt cut light output by a noticeable margin over a winter season, and a dim bar defeats the entire point of mounting one. Check the ground connection twice a year for corrosion, since a green or white crust on a ground lug is the leading cause of a bar that dims under load instead of failing outright.
Troubleshooting Common Mounting Problems
- Bar flickers at idle but steadies at higher RPM - the ground connection is weak; re-terminate at a bare metal frame point.
- Bolts loosen within the first week - missing backing plates on an aluminum roof; add them and re-torque to 15-20 ft-lbs.
- Fuse blows on startup - relay wired on the load side instead of the switched side; check the wiring diagram against your relay's pin layout.
- Water intrusion inside the cab headliner - sealant skipped or applied too thin around a bolt hole; pull the bolt, clean the hole, and reseal.
- Bar sits crooked after torquing - bolts torqued in a straight sequence instead of a cross pattern; loosen and redo in a star pattern.
Tools and Resources
Beyond the light bar itself, keep these on hand for the install and for ongoing fleet upkeep: a torque wrench calibrated within the last year, a wire crimper rated for 10-gauge terminals, dielectric grease, and a spare inline fuse of the correct amperage. TruckNTow stocks the tow truck accessories most operators reach for on this job, from wireless light kits to mounting brackets, and keeping a spare relay in the truck saves a roadside call when one fails.
FAQ
What's the best way to mount a light bar on a tow truck roof?
The best method uses backing plates behind every bolt hole, sealant on each hole before the bolt seats, and bolts torqued to 15-20 ft-lbs in a cross pattern. Skipping backing plates on an aluminum roof is the most common reason bars tear loose within the first 500 miles.
How much clearance does a roof-mounted light bar add?
A 50-inch light bar with its bracket adds roughly 3 inches to your cab's stock overhead clearance. Log the new total height on the dash so drivers account for it under low structures.
Is a relay required for a tow truck light bar?
Yes, a relay rated at 40 amps is required for any bar pulling meaningful wattage, since running the load straight through a dash switch overheats the switch and its wiring. The relay also lets a short trip a fuse near the battery instead of melting wire near the driver.
What gauge wire do I need for a 300-watt light bar?
Use 10-gauge marine-grade wire for any light bar over 300 watts, and 12-gauge is acceptable for smaller bars. Undersized wire heats up under sustained load and is a leading cause of insulation failure.
How much torque should roof mounting bolts get?
Roof mounting bolts on most light bar brackets take 15 to 20 ft-lbs of torque, applied in a cross pattern like a wheel. Re-check the torque after the first 50 miles since vibration settles new hardware.
Can I mount a light bar without drilling into the cab?
Some magnetic and clamp-style mounts avoid drilling, but they aren't rated for sustained highway vibration on a permanent tow truck setup. A drilled, sealed, bolted bracket is the standard for a bar that stays on the roof year-round.
How often should I re-torque light bar mounting bolts?
Re-torque at 50 miles, again at 500 miles, and then fold a torque check into your regular pre-trip inspection schedule. A bolt reading below 12 ft-lbs on a recheck needs fresh sealant and a full re-torque.
Do amber and red beacons need separate switches?
Yes, most state DOT codes restrict red and blue lighting to emergency vehicles, so a private tow operator's amber warning lights and any secondary beacon should run on independent switches. This keeps the truck compliant if a beacon color is ever questioned roadside.
One Last Thing
The detail most first-time installers miss isn't the bracket or the wire gauge - it's re-torquing after that first 50 miles, when factory-fresh hardware settles under real vibration and can drop several ft-lbs without any visible sign of looseness. Build that single recheck into your post-install routine and you'll catch nearly every mounting failure before it becomes a roadside problem in 2026.
