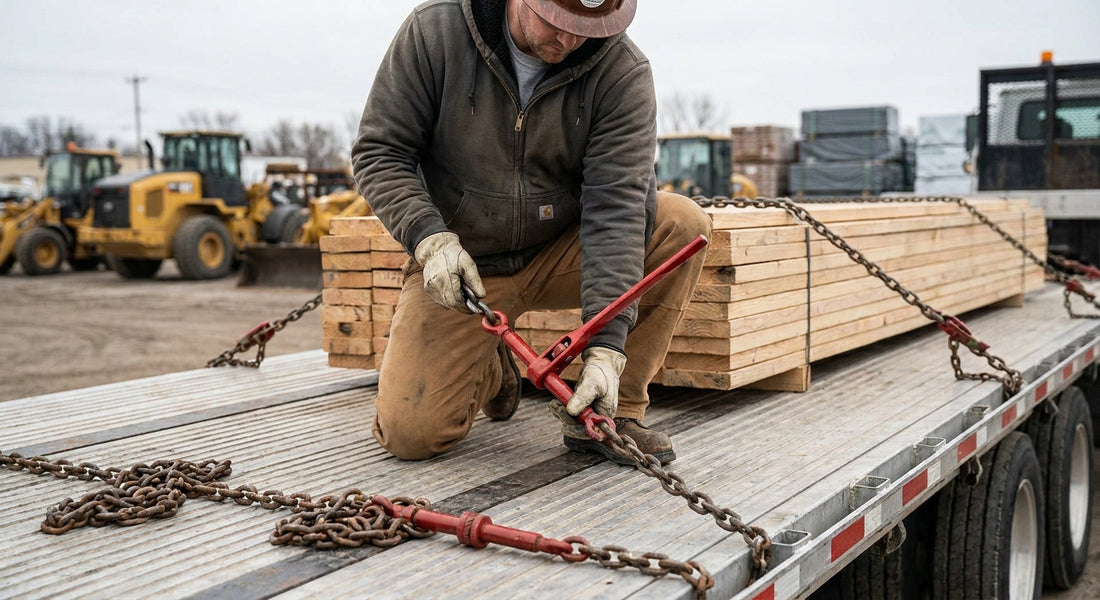

Chain binders look simple until one snaps loose at 60 mph and takes a fender with it. This guide walks through the exact sequence for load binding with chain binders in 2026, from matching working load limits to torquing the handle down without over-tensioning the chain.
TL;DR
Using chain binders correctly comes down to three things: matching chain and binder working load limit (WLL), positioning the binder so the handle travels toward the load (never away from it), and rechecking tension within the first 50 miles per FMCSA rules. The Vulcan folding handle ratchet binder rated 12,000 lbs SWL is the safe pick for most flatbed and heavy equipment loads — Buy. Skip lever binders on loads over 5,000 lbs unless you've got the leverage and experience to control the release.
Why This Matters
Cargo securement failures are one of the most cited violations in roadside inspections, and a binder rigged backward or mismatched to the chain grade is a common root cause. FMCSA cargo securement rules under 49 CFR Part 393 require that tie-downs be rated for at least half the weight of the cargo they secure, and chain binders are the connection point that either holds that rating or breaks it. Get the binder setup wrong and you're not just risking a fine — you're risking the load.
What You'll Need
- Grade 70 chain rated to match or exceed your load — a Grade 70 binder chain with clevis grab hooks covers most flatbed and equipment hauling jobs
- A ratchet or lever-style load binder rated to the chain's working load limit
- Leather gloves — chain handling shreds bare hands fast
- A binder bar or breaker bar for stubborn lever binders
- A wire tie or bungee to lock the binder handle in the closed position
- Eye protection, especially when snapping grab hooks into anchor points
The Steps
1. Match the chain grade to the binder rating
This is where most rigging mistakes start. A Grade 70 chain rated at 6,600 lbs SWL paired with a binder rated lower than that number creates a weak link in the system — literally. Check the stamped rating on both the chain and the binder body before you touch the load. If the numbers don't match, don't force it; swap one out.
2. Route the chain over solid anchor points
Run the chain over frame rails, axles, or manufacturer-stamped tie-down points — never over hydraulic lines, wiring harnesses, or plastic trim. Cross the chains in an X pattern on wheeled equipment when the load calls for it. Expected outcome: the chain sits flat against the load with no twist before you attach the binder.
3. Position the binder correctly
Set the binder so the handle, when closed, swings toward the load rather than away from it. This keeps your body clear of the handle's arc if it releases under tension. Common mistake: mounting the binder upside down, which forces you to lever the handle outward — directly into traffic on a roadside tighten.
4. Take up slack before applying leverage
Hand-tighten the chain through the binder's hooks until it's snug, with no visible sag. Don't try to close a ratchet or lever binder on chain that's still loose — you'll either strip the mechanism or get a false sense of tension. A folding handle ratchet binder rated for 12,000 lbs gives you more control here than a lever style because the ratchet holds position between pulls.
5. Close the binder in controlled increments
For ratchet binders, work the handle in short strokes until the chain rings when tapped — that's your tension indicator. For lever binders, use a binder bar for extra leverage rather than jumping on the handle, which is how fingers get crushed and binders get overloaded. Expected outcome: the chain is taut with zero flex when you push on it by hand.
6. Lock the handle
A binder handle that isn't secured can bounce open from road vibration within the first few miles. Wire the handle to the chain or use a locking clip so it can't walk back to the open position. This single step prevents most binder-related load shifts reported in 2026 roadside inspection data.
7. Recheck at the first stop
DOT rules require rechecking tie-downs within the first 50 miles and again every 150 miles or three hours after that. Chain stretches, cargo settles, and binders loosen — a 10-minute check at your first fuel stop catches problems before they become citations or worse.
Troubleshooting
- Binder handle won't close all the way — the chain is too loose or too tight for the binder's travel range. Adjust chain length at the grab hook before forcing the handle.
- Chain has slack after binding — you likely didn't hand-tighten enough before closing the binder. Reopen, take up slack, and re-close.
- Binder pops open on rough roads — the handle wasn't locked or wired down. Always secure it after closing, no exceptions.
- Chain is rusted or kinked — retire it. A kinked link concentrates stress and drops the effective working load well below the stamped rating.
- Load edges are getting chewed up by the chain — add heavy-duty corner protectors at contact points before you tension the chain, not after.
- You can't tell if tension is adequate — tap the chain; a taut chain rings, a loose one thuds.
Tools and Resources
- A complete chain and load binder kit if you're outfitting a truck from scratch — chain and binder pre-matched on rating
- Binder bar for lever-style binders
- Gloves rated for cut resistance, not just grip
- A tension gauge if your fleet runs frequent DOT inspections
What to Do Next
Once binding technique is dialed in, the next failure point for most fleets is paperwork — inspectors want to see that securement checks happened, not just that they did. Log binder and chain condition on your pre-trip inspection using the trucking fleet forms and logs guide as a reference for what belongs on the DVIR.
FAQ
What's the safest way to use chain binders? Match chain and binder working load limits before rigging, position the binder so the handle swings toward the load, and lock the handle closed once tensioned. Recheck tension within the first 50 miles per FMCSA rules.
Is a ratchet binder better than a lever binder? For loads over 5,000 lbs, yes — ratchet binders hold position between strokes and give more controlled tension. Lever binders work fine on lighter loads but release faster and with more force if mishandled.
How much weight can a chain binder hold? It depends on the stamped rating, not a universal number. A Grade 70 chain rated at 6,600 lbs SWL needs a binder rated at or above that number — the lower-rated component sets the limit for the whole system.
Can I use a chain binder on straps instead of chain? No. Chain binders are built for chain link geometry and will damage strap webbing. Use ratchet straps with strap-specific hardware instead.
How often should I inspect my chain binders? Before every load and again at the first stop after tensioning. Retire any binder with a bent hook, stripped ratchet teeth, or a handle that won't lock.
Do I need gloves to operate a chain binder? Yes — leather or cut-resistant gloves prevent pinch injuries from the handle and cuts from chain links, especially under tension.
What's the difference between Grade 70 and Grade 100 chain for binding? Grade 100 chain carries a higher working load limit per link diameter, meaning you can run lighter, thinner chain for the same rated capacity. Most flatbed hauling in 2026 still runs Grade 70 because it's cheaper and widely stocked.
Why does my binder keep loosening on the road? The handle wasn't locked after closing, or the chain wasn't fully seated in the binder hooks before tensioning. Both are fixable in under a minute with a wire tie and a re-check.
One Last Thing
The single most overlooked failure point isn't the chain or the binder — it's the unlocked handle. Roadside inspection data consistently flags loose or unsecured binder handles as a root cause of shifted loads, and it's the one step that costs zero dollars and thirty seconds to fix. Wire it every time, even on a five-minute haul across the yard.
