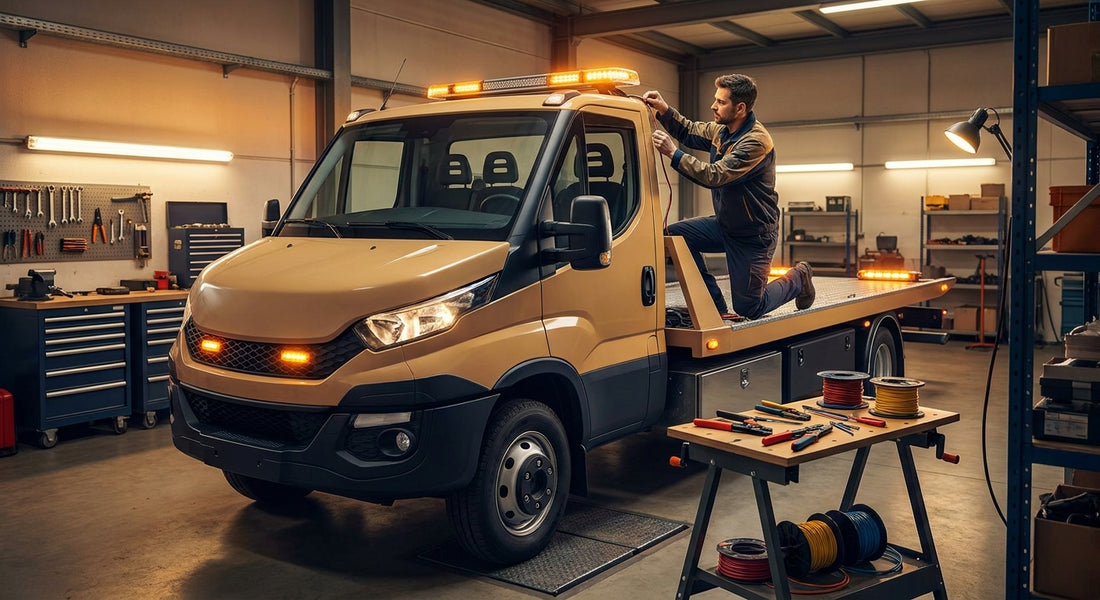

LED strobe lights on a tow truck are a legal requirement in most states and a survival tool on every job—here's exactly how to install them yourself without wiring headaches or callback trips to the shop.
TL;DR: Installing LED strobe lights on a tow truck takes 2–4 hours, a basic wiring kit, and a handful of hand tools. Mount the light heads first, run shielded 14-gauge wire from each head back to the controller, connect the controller to a switched 12V source fused at 20 amps, then test each pattern before buttoning up. Buy DOT-compliant amber or amber-and-white heads rated for your truck's voltage. TrucknTow's strobes and flashing LED collection covers grille, deck, and full-perimeter kits sized for light-duty rollbacks through heavy wrecker builds.
Why This Matters
A tow truck that's hard to see is a liability on every call. In 2026, NHTSA data continues to link a disproportionate share of roadside fatalities to inadequate warning lighting on recovery vehicles. Amber LED strobes visible at 500 feet or more are the minimum you need in most jurisdictions—and in several states, roof-mount or full-perimeter coverage is mandatory for Class 6 and above. Installing them yourself cuts the shop labor bill (typically $150–$300) and lets you position heads where you know blind spots exist on your specific rig.
What You'll Need
Tools:
- Drill with 3/4" and 1" step bits
- Wire stripper and crimping tool
- Multimeter
- Zip ties and loom conduit (3/8" split loom)
- Panel removal pry tools
- Self-tapping screws or grommet mount hardware
- Heat shrink tubing (assorted)
Materials:
- LED strobe light heads (grille, deck, or surface-mount — matched to your kit)
- Strobe controller (12-pattern minimum recommended)
- 14-gauge stranded, shielded wire — enough for every run plus 20% slack
- In-line fuse holder with 20-amp fuse
- Ring terminal for chassis ground
- Silicone sealant or rubber grommets for every drilled hole
Time: 2–4 hours depending on the number of heads and cab complexity.
The light heads themselves need to be DOT-compliant (SAE J595 Class 1 for emergency warning) and rated for 12V DC. A 4-head grille-and-tail kit is the baseline for a light-duty flatbed; a heavy wrecker build in 2026 typically runs 8–12 heads across grille, deck, cab corners, and rear bar.
The Steps
1. Plan Your Layout Before You Drill
Sketch the head positions on paper—grille slots, cab corners, rear deck, and any undercarriage or wheel-well positions your state requires. Check your jurisdiction's regulations for minimum flash rate (typically 60–120 FPM) and color rules (amber only vs. amber-white split). Tape cardboard cutouts to the truck and walk a full circle; you'll spot coverage gaps before making permanent holes. This step saves you the most time downstream.
2. Mount the Light Heads
Drill pilot holes using the step bit sized for your specific head's grommet or bolt mount. For surface-mount heads on the grille bar, a 3/4" hole is common; cab-corner flush mounts often need a 1" cutout. Fit a rubber grommet in every hole before the wire passes through—bare metal edges cut insulation over time and create shorts. Apply a thin bead of silicone around the mount flange, seat the head, and torque the retaining hardware snug but not over-tight on fiberglass or plastic panels. Common mistake: skipping the silicone. Water intrusion into a strobe head kills the LED driver board, not the LEDs themselves—and the driver board isn't field-replaceable.
3. Run the Wiring
Work from each head back toward the cab in a single continuous run—no mid-run splices. Route wire inside existing loom channels or behind trim panels wherever possible; outside the cab, sleeve every run in 3/8" split loom and zip-tie it clear of exhaust, moving components, and sharp edges every 12–18 inches. Pass wires through the firewall using an existing grommet if one is available; if not, drill a new 3/4" hole and fit a rubber firewall grommet before passing wire. Label each wire at both ends with tape and a marker before connecting anything. Common mistake: running positive and ground on separate paths with different lengths—this creates voltage-drop imbalance across heads and causes inconsistent flash timing.
4. Connect to the Strobe Controller
Mount the controller under the dash or in the cab console where it's accessible but protected from moisture. Connect each head's lead to the numbered output terminals on the controller per the manufacturer's wiring diagram—polarity matters on most units. Twist the ring terminal for chassis ground onto a known-good body bolt (not a painted surface; scrape to bare metal first). Common mistake: grounding to a dash bolt instead of a chassis bolt. Dash grounds create noise in the radio and, on some 2026 trucks with CAN-bus lighting systems, can trip fault codes.
5. Wire the Controller to Switched 12V Power
Run a dedicated 14-gauge positive wire from the controller's power input to the fuse panel, connecting to a switched ignition slot (one that's live only when the key is on or in accessory mode). Install the in-line 20-amp fuse within 18 inches of the power source—not near the controller. This placement protects the entire run, not just the last foot. If your truck is equipped with an upfitter switch panel (common on 2026 cab chassis builds), connect to one of those circuits instead; it gives you a clean switched output with its own fuse slot and a labeled dash switch.
6. Test Each Pattern and Confirm Sync
With the controller powered, cycle through every flash pattern—alternate, simultaneous, wig-wag, and sequential—and walk around the truck in daylight. Every head should fire on cue; a head that lags or stays dark indicates a loose terminal or a polarity reversal at that output. Use the multimeter at the head connector to confirm 12V ± 0.5V under load. At night, check for road-surface reflection from deck heads to make sure you're not blinding traffic behind you—reposition any head more than 15° off horizontal. Expected outcome: all heads firing within one flash cycle of each other, no flickering, no blown fuse.
7. Button Up and Road Test
Replace all trim panels and cable-anchor every exterior run one final time. Apply a second silicone bead around any exterior mount that got disturbed during testing. Drive at highway speed with the strobes on for 15 minutes—vibration loosens terminals that feel solid at rest. Pull over and recheck every head by hand. Log the install date; in 2026 most fleet maintenance software includes a lighting inspection interval field, and a self-install is worth documenting for liability purposes.
Troubleshooting
Head doesn't flash at all: Check polarity first, then check continuity on the output wire from controller to head. A single-pole failure almost always traces to a reversed connector, not a dead head.
All heads go dark after 30 seconds: The controller is thermal-shutting off because it's undersized for the total wattage load. Add up all head wattages; the controller's rated output must exceed that total by at least 20%.
Strobe triggers a dash warning light: Your truck has a load-sensing circuit on that fuse slot. Move the controller power lead to a non-monitored upfitter circuit or add a relay between the fuse and the controller.
Uneven flash timing between heads: Ground path resistance is unequal. Run a dedicated ground wire from the controller to chassis rather than relying on the cab's existing ground network.
Water in a head after rain: The silicone flange seal failed or was never applied. Remove the head, dry it with compressed air for 60 seconds, reseal, and remount. LED drivers tolerate brief moisture but not pooled water.
Flickering at idle, stable at speed: Alternator output voltage is marginal at idle. Test charging voltage at the battery—should read 13.8–14.4V at 1,000 RPM. If not, address the charging system before blaming the strobes.
Tools and Resources
- Strobe light kits: strobes and flashing LED — grille, deck, surface-mount, and full-perimeter kits for tow trucks from light-duty flatbeds to Class 8 wreckers.
- Heavy wrecker accessories: TrucknTow's heavy-duty wrecker accessories covers mounting hardware, cable management, and recovery-specific add-ons.
- Multimeter: Any unit that reads DC voltage to 20V and has a continuity beeper. Nothing more is required for this job.
- SAE J595: The governing standard for emergency warning devices on recovery vehicles in the US. Download free from SAE.org; the flash-rate and candela tables are the sections you need.
- State DOT regulations: Check your state DMV's vehicle equipment manual for color, placement, and activation requirements — they vary meaningfully between states in 2026.
What to Do Next
Once your strobes are running clean, the next upgrade on a tow truck is securing the load—whether that's tightening your wheel-lift strap protocol or auditing your cargo tie-downs. The wheel lift dolly straps collection is a logical next stop if your current straps are showing wear or you're running non-spec hardware.
FAQ
How long does it take to install LED strobe lights on a tow truck? A 4-head grille-and-rear kit takes most operators 2 hours. An 8–12 head full-perimeter install on a heavy wrecker runs 3–4 hours, assuming you've planned the layout and have all materials on hand.
What gauge wire do I need for tow truck strobe lights? 14-gauge stranded wire is the standard for LED strobe runs up to 15 feet. Runs longer than 15 feet should step up to 12-gauge to prevent voltage drop that causes timing inconsistency.
Do LED strobe lights need a relay? Most modern LED strobe controllers draw under 10 amps total and can connect directly to a switched 12V source with an in-line fuse. A relay is needed only if you're drawing from a circuit that's load-monitored by the truck's ECU or if total draw exceeds 15 amps.
What color strobe lights are legal on a tow truck? Amber is legal in all 50 states for tow and recovery vehicles. Several states permit an amber-white split on the front-facing heads. Blue and red are restricted to law enforcement in most jurisdictions—confirm your state's code before buying white heads.
How many strobe heads does a tow truck need? A light-duty flatbed meets minimum visibility requirements with 4 heads (2 front, 2 rear). A heavy wrecker operating on interstate shoulders in 2026 typically runs 8–12 heads for full 360-degree coverage.
Can I install strobe lights myself or do I need an electrician? You can do this yourself if you're comfortable reading a wiring diagram and using a multimeter. The wiring is 12V DC, straightforward to diagnose, and reversible if you make a mistake. The only case for a professional install is if your truck has a CAN-bus–integrated lighting system that requires module programming.
Will LED strobes drain my truck battery? A typical 8-head LED kit draws 4–8 amps at 12V—roughly equivalent to running your headlights. On a truck with a healthy charging system outputting 13.8V or above, battery drain is not a concern during normal operation.
What's the best mounting position for strobe lights on a tow truck? Grille and rear corners give maximum visibility in the approach and departure zones where collision risk is highest. Cab-corner mounts add side coverage required in several states. Deck mounts help on flatbeds where the vehicle being towed would otherwise block the rear heads.
One Last Thing
The failure mode operators miss most often is not the lights themselves—it's the ground path. A strobe system that tests perfect in the shop can develop intermittent dropout within 60 days if the chassis ground is run to a painted bolt. In 2026, the single best insurance against a callback is scraping the paint off the grounding point down to bare metal and applying a dab of anti-corrosion compound before the ring terminal goes on. Costs nothing. Adds years to the install.
