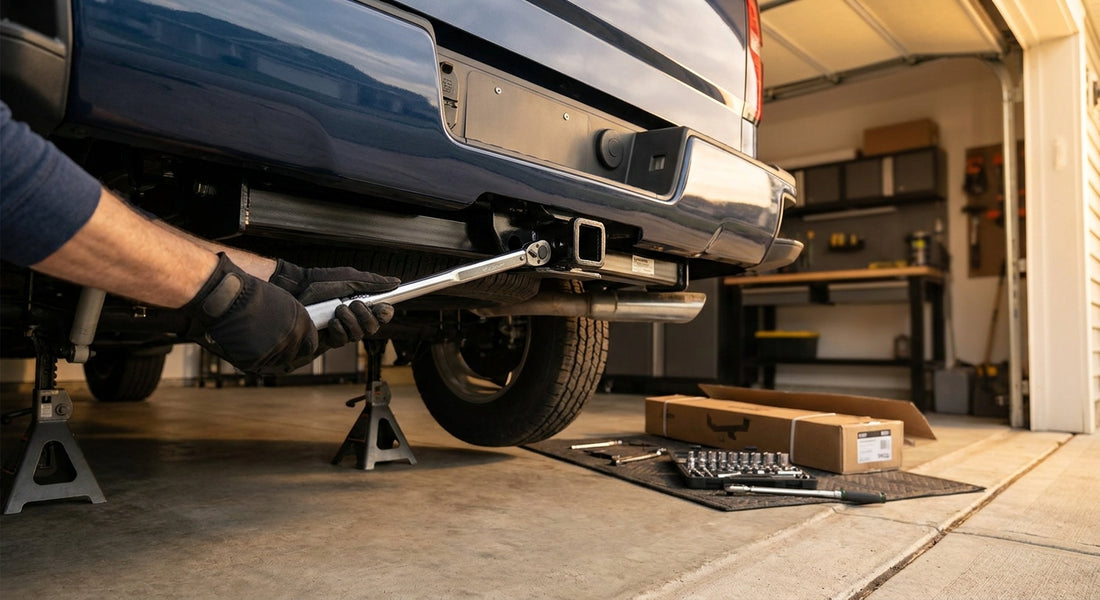

Installing a trailer hitch receiver on a pickup is a driveway job if you've got the right tools, two hours, and a torque wrench that actually works. This guide walks through the full bolt-on install from tool prep to final torque check.
TL;DR
Installing a trailer hitch receiver on a pickup takes 90 minutes to 2.5 hours for a bolt-on class III or IV setup, no welding required on 2026 model trucks with factory mounting points. You'll need a torque wrench, a jack, and a helper for the final lift-and-align step — skipping the torque spec is the single most common mistake that leads to a rattling or shifting hitch. Verdict: DIY-friendly for anyone comfortable under a truck with a floor jack; budget a full afternoon your first time.
Why this matters
A hitch receiver that's under-torqued or bolted to the wrong mounting holes doesn't fail quietly — it fails when you're loaded and merging onto the highway. Factory frame rails on most 2026 pickups have pre-drilled mounting holes matched to specific hitch classes, and using the wrong bolt grade or torque spec is how receivers work loose within a few thousand miles. Getting the install right the first time means checking your truck hitch by tow rating before you buy, not after.
What you'll need
- Trailer hitch receiver rated for your truck's tow rating (class III or IV covers most half-ton and 3/4-ton pickups)
- Torque wrench rated to at least 150 ft-lbs
- Socket set (typically 15/16" and 3/4" for factory hardware, but check your hitch's hardware kit)
- Floor jack and jack stands, or a vehicle lift
- Wire brush or rust penetrant for corroded frame bolts
- Anti-seize compound for bolt threads
- A helper for lifting and aligning (a 60-80 lb receiver is awkward solo)
- A driver side receiver mount if your truck's factory hitch point sits offset rather than centered
Most bolt-on hitches ship with their own hardware kit — grade 8 bolts, nuts, and washers sized to the frame. Don't substitute hardware store bolts unless the grade matches exactly.
The steps
1. Confirm your hitch class and tow rating
Matching the receiver to your truck's actual tow capacity is the step people skip and regret. A class III receiver tops out around 6,000 lbs gross trailer weight in most applications, while class IV runs up to 10,000-12,000 lbs depending on the mount. Pull your truck's tow rating from the door jamb sticker or owner's manual before ordering, and cross-check it against the hitch class guide by tow rating. Buying oversized doesn't hurt; buying undersized means a return shipment.
2. Raise the truck and remove undercarriage covers
Jack the rear of the truck and set it on stands rated for the vehicle's weight — never work under a truck on a jack alone. Locate the factory mounting points along the frame rail behind the rear axle; on most 2026 trucks these are pre-drilled and may be covered by a plastic shield or bed liner overhang that needs to come off first. Expect this step to take 10-15 minutes if the truck has never had aftermarket work done.
3. Position the receiver against the frame
With a helper holding the hitch in place, line up the mounting holes on the receiver with the factory holes on the frame rail. This is the step where a second set of hands matters most — a class IV receiver alone can weigh 70-90 lbs, and holding it steady while threading the first bolt by feel is close to impossible solo. Hand-thread every bolt before tightening any of them fully; forcing one tight bolt while the others are loose warps the mounting bracket.
4. Hand-tighten all hardware before torquing
Get every bolt started and snug by hand first, checking that the receiver sits flush against the frame with no gap. A gap of even 1/8 inch usually means a bolt is cross-threaded or a mounting bracket is caught on wiring or a brake line — stop and recheck rather than forcing it.
5. Torque to manufacturer spec in a cross pattern
This is where most driveway installs go wrong. Torque bolts in a star or cross pattern, not in sequence around the receiver, and hit the manufacturer's spec exactly — most class III/IV bolt kits call for 100-130 ft-lbs depending on bolt size and grade. Under-torquing leaves play in the mount; over-torquing can strip factory frame threads that cost real money to repair. Recheck torque after the first 50 miles of driving, since hardware settles.
6. Install the wiring harness and 7-way connector
Most hitch installs happen alongside a wiring upgrade, since trailers with brakes need a full 7-way connection rather than the factory 4-pin. Route the harness along the frame rail using existing factory clips where possible, avoiding contact with the exhaust or moving suspension parts. Full instructions for pin mapping and connector mounting are in the 7-way trailer plug wiring guide — get this wrong and your trailer brakes or lights won't function even with a perfectly torqued hitch.
7. Test fit with a ball mount and safety chains
Insert a ball mount into the receiver tube and confirm the pin hole lines up and the pin drops freely — a receiver that's slightly twisted during install will bind here even if every bolt is torqued correctly. Hook safety chains through the frame-mounted D-rings or loops and check for full range of motion without dragging on the ground during a tight turn.
8. Final safety check before towing
Re-torque every bolt one more time, check that no wiring is pinched against the frame, and confirm the receiver doesn't move when you push on it by hand with your full body weight. This final check takes two minutes and catches the mistakes that a rushed install misses.
Troubleshooting
- Bolt holes don't line up with the receiver: Confirm you bought the hitch class matched to your exact truck model and cab configuration — some pickups have two different frame drilling patterns across trim years.
- Receiver rattles at low speed: Almost always an under-torqued bolt or a worn ball mount pin; re-torque first, replace the pin if the rattle continues.
- 7-way connector has no power to the brake circuit: Check the fuse or circuit breaker on the tow vehicle side before assuming the harness is bad — a common failure point.
- Rust on factory bolt heads won't budge: Soak with penetrating oil for 15-20 minutes and use a 6-point socket, not a 12-point, to avoid rounding the head.
- Receiver sits at an angle, not flush: A wiring harness or brake line is caught between the mount and the frame — remove and reroute before retightening.
- Torque wrench clicks well before spec: Check the wrench calibration; a wrench that's been dropped or stored loaded reads inaccurately.
Tools and resources
- Torque wrench (150+ ft-lb capacity)
- Grade 8 hardware kit matched to hitch class
- Passenger side receiver mount for offset applications
- Anti-seize compound
- Jack stands rated to truck curb weight
What to do next
Once the receiver is torqued and the wiring tested, the next decision is matching hitch class to actual towing loads for the season ahead — see the breakdown of class 3 hitches for full-size trucks before you buy a ball mount or weight-distribution kit.
FAQ
How long does it take to install a trailer hitch receiver? Most bolt-on installs on a 2026 pickup with factory mounting points take 90 minutes to 2.5 hours, longer if rust or a wiring upgrade is involved.
Do I need to drill new holes to install a hitch? No — nearly all class III and IV receivers for pickups use factory pre-drilled frame holes; drilling is only needed on trucks without factory tow prep.
What torque spec should hitch receiver bolts use? Most class III/IV kits specify 100-130 ft-lbs, but always check the hardware kit that ships with your specific receiver.
Can one person install a trailer hitch receiver alone? It's possible but difficult — a class IV receiver can weigh 70-90 lbs, and aligning bolt holes solo while holding that weight is the hardest part of the job.
Is a class III hitch strong enough for a travel trailer? It depends on trailer weight; class III typically covers up to 6,000 lbs gross trailer weight, while heavier trailers need class IV.
Do I need a wiring harness installed at the same time as the hitch? Not required for towing without trailer brakes, but any trailer with electric brakes needs a 7-way connection installed before towing.
How often should I re-torque hitch bolts after install? Check torque after the first 50 miles, then again after the first 500 miles of towing.
What's the most common mistake in a DIY hitch install? Skipping the torque wrench and tightening by feel — this is the top cause of rattling or loosening receivers within the first year.
One last thing
The bolt-on install is the easy part — most hitch failures reported by shops trace back to skipped re-torque checks at the 50-mile mark, not a bad install. Set a phone reminder before your first tow of 2026 and it'll save a roadside headache later.
