Wiring a trailer brake controller wrong doesn't just trip a warning light — it means your trailer's brakes either lag behind your truck's or grab so hard they lock the wheels, and either failure shows up exactly when you're loaded heavy and hitting a downgrade at highway speed.
- Match controller type (time-delayed vs. proportional) to your trailer's electric brake magnets before you touch a wire.
- Tap the factory brake controller harness under the dash on most 2026 trucks instead of splicing into the OEM wiring.
- Test with a wiring harness tester before towing — verifies brake, turn, and running circuits in under two minutes.
- Set initial gain to 3-4, then adjust upward until trailer brakes engage a half-second before the tow vehicle's.
- Skip any installation that leaves a bare ground splice under carpet or insulation — corrosion there kills the circuit within a season.
Why This Installation Matters
A trailer brake controller sends a proportional or time-delayed electrical signal to your trailer's electric brake magnets every time you press your truck's brake pedal, and the wiring between the controller and the 7-way trailer plug is the only thing standing between a controlled stop and a jackknife. Loaded car haulers, livestock trailers, and utility trailers pulling 3,300-pound-rated cargo all depend on that signal arriving at the right voltage, at the right moment, every single time. Get the polarity or the ground wrong and you'll either lose trailer braking entirely or send full voltage the instant you tap the pedal, both of which have put trailers into the back of the tow vehicle. TruckNTow has serviced trucking and towing professionals since 1959, and one pattern holds across six decades of hauling: brake controller failures trace back to installation shortcuts, not equipment failure.
What You'll Need
- Trailer brake controller unit rated for your trailer's magnet amperage
- Wire crimpers, butt connectors, and heat-shrink tubing
- Circuit tester or multimeter
- Factory OEM wiring harness connector (check your truck's brake controller port location — most 2026 trucks ship with one pre-wired under the dash)
- Panel-mount bracket or hardware for the controller unit
- 10-15 minutes for connector work, 30-45 minutes total install time
Installing a Trailer Brake Controller: The Steps
1. Confirm your truck has a factory brake controller port
Most 2026 half-ton and heavy-duty pickups from the major manufacturers ship with an OEM brake controller harness already routed under the driver's side dash, usually behind a knockout panel near the fuse box. Confirming this first saves you from splicing into the truck's factory wiring, which voids some warranties and introduces failure points a plug-and-play harness avoids. If your truck lacks the factory port, you'll need an aftermarket wiring adapter that taps the brake light circuit and battery feed separately.
2. Mount the controller within reach of the driver's seat
The controller needs to sit where you can reach the manual override lever without taking your eyes off the road, typically just left of the steering column or under the dash edge. Time-delayed controllers need a level mounting surface to read inertia correctly — mount one at an angle and it reads braking force inaccurately, over- or under-applying trailer brakes on every stop.

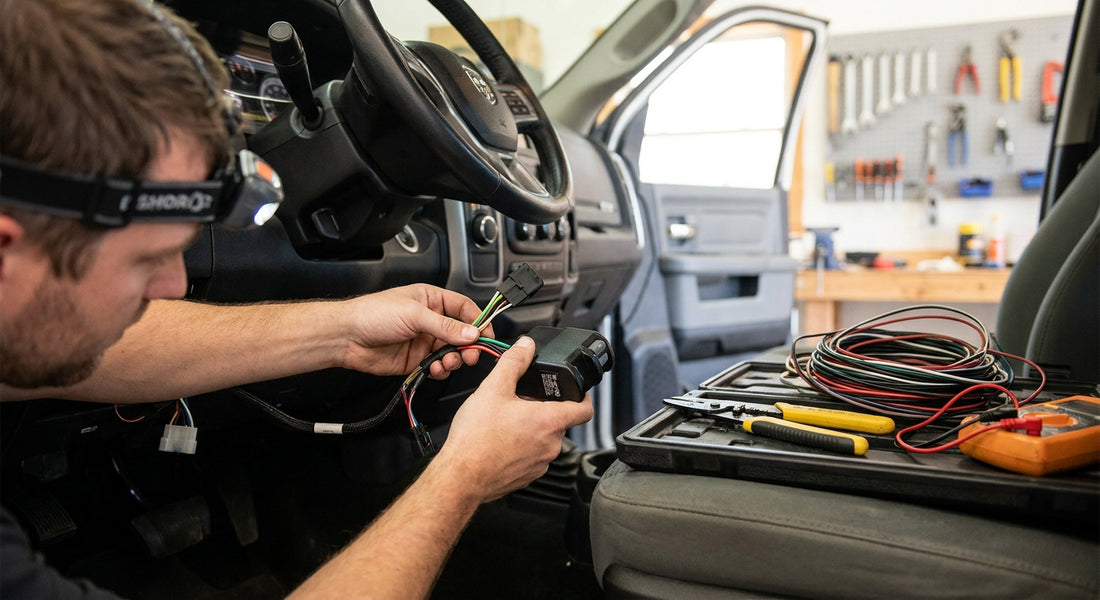

3. Connect the wiring harness
Plug the OEM harness connector directly into the controller's factory port, or if splicing, match wire colors exactly: blue is typically the brake output, white is ground, and black is the constant 12-volt feed from the battery. A reversed ground and constant-power wire will either leave the controller dead or keep it live even with the ignition off, draining the truck battery overnight.
4. Route the wire to the 7-way connector at the hitch
The controller's output wire runs to pin 2 on the standard 7-way trailer connector, which then carries the signal to the trailer's electric brake magnets. Before you finish this run, test the full circuit with a trailer wiring harness tester — it confirms brake, turn signal, running light, and ground circuits are all live before you ever hook up a trailer.
5. Ground the controller properly
Ground the controller directly to a clean, bare metal point on the truck's frame or body, never to a painted surface or an existing accessory ground already carrying another circuit's load. A shared or corroded ground is the single most common cause of intermittent brake controller dropout reported on trucks over three years old.
6. Set the initial gain and test with the trailer attached
Start the gain dial at 3 out of 10 for most mid-weight trailers, then increase it incrementally while doing controlled stops from 20 mph in a parking lot.
“If your trailer brakes engage before the tow vehicle's, the gain is set too high.”
You're looking for the trailer brakes to engage a half-second before the truck's during a firm stop — that stagger keeps the trailer from pushing into the hitch under hard braking. Too little gain and the trailer's weight shifts forward onto the tow vehicle; too much and the trailer's wheels can lock and skid.
7. Verify the manual override
Every controller has a manual override lever or button that applies trailer brakes independently of the tow vehicle's pedal — this is what you use to settle trailer sway on the highway. Confirm it engages the trailer brakes without the truck's brake pedal depressed; if it doesn't, the wiring is crossed between the output and the constant power feed.
Compatibility and Wiring Considerations
Not every controller works with every trailer setup. Time-delayed controllers work fine on single-axle utility trailers under 3,300 pounds, but proportional controllers read actual deceleration and respond faster, which matters on tandem-axle car haulers or gooseneck loads where stopping distance is critical. If you're running a trailer breakaway kit on a gooseneck, confirm the breakaway battery and switch wiring don't share a ground point with the brake controller circuit — a shared ground here has been known to trigger false breakaway activations mid-tow.
Check your 7-way connector pinout against the trailer's plug before final assembly, since older trailers sometimes use non-standard wiring where pin assignments don't match current SAE conventions. A five-minute pin check now avoids a wiring mismatch discovered at 65 mph.
Safety Checks After Installation
Run through this checklist before your first loaded tow of 2026:
- Manual override applies trailer brakes independently, confirmed with the truck in park
- Brake lights on the trailer illuminate exactly when the truck's brake lights do, with no delay
- Gain setting produces a slight trailer-brake lead on hard stops, not a lag
- Ground connections are clean, bare metal, free of paint or corrosion
- No warning light or error code displays on the controller after a 10-minute test drive
Skip any of these and you're towing on a system nobody's actually verified works.
Maintenance and Troubleshooting
Controller shows no power. Check the fuse tied to the brake controller circuit first — a blown fuse is more common than a wiring fault. If the fuse is intact, verify the constant 12-volt feed with a multimeter at the harness connector.
Trailer brakes drag or stay engaged. This usually means the gain is set too aggressively for the trailer's magnet resistance, or a stuck output relay inside the controller is holding voltage after the pedal releases. Lower the gain first; if dragging persists, the controller itself likely needs replacement.
Brakes work intermittently on rough roads. An intermittent connection almost always traces to a loose ground or a butt connector that wasn't crimped and heat-shrunk properly. Re-crimp every splice in the run and re-test.
Controller error code after towing in winter. Road salt and moisture corrode ground points faster than any other failure mode TruckNTow customers report. Inspect and clean every ground connection each fall before winter towing season starts.
Uneven braking between the truck and trailer. Re-check gain calibration first, then confirm the trailer's own brake magnets are adjusted evenly across both axles — a controller can't compensate for a mechanically worn brake assembly on one wheel.
Tools and Resources
- Trailer wiring harness tester guide for pre-tow circuit checks
- VULCAN Wireless LED Tow Light Kit as a backup lighting solution when running temporary trailers without full wiring
- Trailer breakaway kits for gooseneck setups running alongside your brake controller circuit
- A basic 12-volt test light for quick continuity checks between installation steps
What to Do Next
Once the controller is installed and calibrated, confirm your full trailer lighting and signal circuit is sound before your next haul — a brake controller installed on a truck with a marginal wiring harness is only solving half the problem.
FAQ
How do I install a trailer brake controller without an OEM port?
Use an aftermarket wiring adapter that taps the brake light circuit and a constant 12-volt battery feed separately, then ground the unit to bare metal on the truck's frame. Most trucks built before OEM brake controller ports became standard need this approach.
What gain setting should I start with on a new trailer brake controller?
Start at 3 out of 10 for mid-weight utility and car hauler trailers, then adjust upward during controlled 20 mph stops in 2026. Increase gain until the trailer brakes engage a half-second before the tow vehicle's.
Is a proportional or time-delayed brake controller better?
Proportional controllers read actual deceleration and respond faster, making them the better choice for tandem-axle car haulers and gooseneck loads. Time-delayed controllers work fine for lighter single-axle utility trailers under 3,300 pounds.
How much does it cost to install a trailer brake controller?
Costs vary by controller type, vehicle wiring compatibility, and whether professional installation is used, so check current pricing before budgeting a number. Trucks with a factory OEM port typically install faster and cheaper than vehicles needing a full aftermarket wiring adapter.
Why does my trailer brake controller show an error code?
Error codes usually point to a wiring fault, a blown fuse, or a corroded ground connection, especially after winter towing with road salt exposure. Check the fuse first, then inspect every ground point for corrosion before assuming the controller unit has failed.
Can I install a trailer brake controller myself?
Yes, most installations take 30-45 minutes with basic tools if your truck has a factory brake controller port already wired under the dash. Vehicles requiring a full aftermarket harness splice take longer and demand more careful wire-matching.
How do I know if my trailer brake controller is wired correctly?
Test the manual override lever with the truck in park — it should apply trailer brakes independently of the pedal. Then verify trailer brake lights illuminate at the same instant as the truck's during a test drive.
What causes trailer brakes to drag after installing a controller?
Dragging brakes usually mean the gain is set too high for the trailer's magnet resistance, or a stuck relay inside the controller is holding voltage after the pedal releases. Lower the gain setting first and re-test before replacing the unit.
One Last Thing
The gain dial gets more attention than the ground wire during most installs, but a corroded or shared ground causes more brake controller failures reported to TruckNTow than every wiring color mismatch combined — clean, dedicated ground metal is worth more than any premium controller feature in 2026.
