A load binder that fails mid-haul does not give a warning shot: the chain goes slack, the load shifts, and everything downstream of that failure becomes your problem at 65 mph. Before every run, a two-minute inspection separates a binder that holds tension for the full route from one that's one pothole away from letting go.
- Knowing how to inspect load binders means checking the frame, hooks, and locking mechanism before every haul, not just at annual DOT inspection.
- A cracked frame or a hook throat opened more than 15% past spec is an automatic pull from service in 2026 and every year after.
- VULCAN folding handle ratchet binders rated at 12,000 lbs SWL and 7,100 lbs SWL still need a hands-on check even when the tag looks fine.
- Grade 70 chain paired with a mismatched binder rating is the single most common cargo securement failure point on car hauler and flatbed runs.
Why This Matters
Federal cargo securement rules require the aggregate working load limit of your tie-down system, including binders and chain, to equal at least half the weight of the cargo being hauled — and that math only holds if every binder in the chain is actually rated at what its tag claims. A load binder with a hairline crack in the frame doesn't announce a reduced capacity; it just fails at some fraction of its stamped rating, usually at the worst possible moment on the highway.
Roadside inspectors in 2026 pull binders out of service for the same handful of defects every time: cracked castings, spread hooks, and mismatched chain-to-binder grade. None of those defects require a shop visit to catch. They require you to look.
What You'll Need Before You Inspect Load Binders
- A flashlight or headlamp for checking weld seams and hook throats in low light
- A tape measure or caliper to check hook throat opening against the manufacturer spec
- Work gloves rated for handling chain and hardware
- The chain you'll actually be using on this haul, matched by grade and diameter
- A driver's vehicle inspection report to log defects and confirm the equipment passed before you leave the yard
- Five minutes per binder — rushing this step is how defective units end up on the trailer
The Inspection Steps

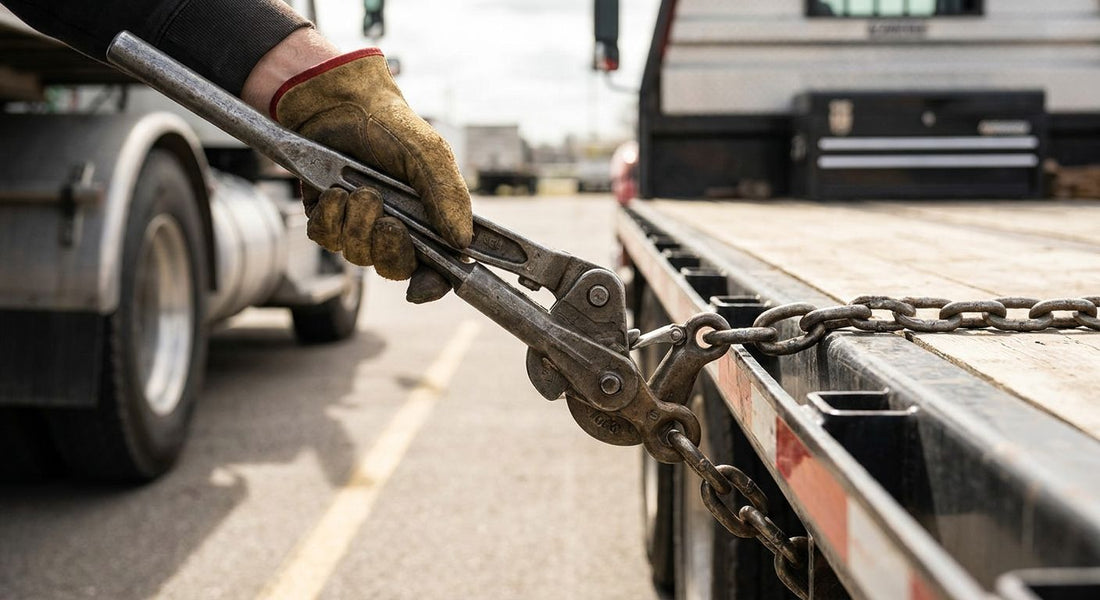

1. Check the frame and handle for cracks or bends
Run your fingers and the flashlight beam along every weld seam on the binder frame, paying close attention to where the handle pivots meet the body casting. A ratchet load binder rated for 12,000 lbs SWL puts enormous stress through that pivot point every time you crank it down, and stress fractures start as hairlines you can feel before you can see them. Any visible bend in the frame, even a slight one, means the binder has already been overloaded once and should not go back into rotation. A cracked or bent frame is an automatic Skip — replace it, don't repair it.
2. Inspect both hooks for wear and throat spread
Grab hooks and clevis hooks wear at the point of contact with the chain link, and a worn hook throat that's opened more than 15% beyond the manufacturer's spec no longer holds the chain link securely under load. Compare the throat opening against a new hook of the same model if you have one on hand, or check it against the spec sheet for your specific binder. A hook that's visibly splayed open, even slightly, redistributes load unevenly across the remaining chain links and accelerates failure elsewhere in the rig.
3. Test the ratchet or lever mechanism through a full cycle
Cycle the handle through its complete range before it ever touches a real load. On a ratchet-style binder like the Durabilt ratchet-style load binder, the pawl should engage cleanly with every tooth and hold position the instant you stop cranking. A lever binder should snap fully closed with resistance, not swing loose. If the mechanism skips teeth, sticks halfway, or the handle doesn't lock flush against the frame, that binder does not go on the truck today.
4. Confirm the chain grade matches the binder rating
Mismatched chain and binder ratings are the most common preventable failure in load securement, and the fix takes ten seconds: read the tag on both pieces before you connect them. A binder built for Grade 70 chain rated at 6,600 lbs SWL should never get paired with a heavier grade chain rated above its capacity, because the binder — not the chain — becomes the weak link in the system. The G70 chain and binder kit solves this by shipping matched components, which removes the guesswork entirely.
5. Look for corrosion, pitting, and surface rust
Surface rust that wipes off with a rag is cosmetic. Pitting — small craters eaten into the metal — is structural, because it reduces the cross-section of steel actually carrying the load at that point. Run a gloved thumb across the frame, the hooks, and the handle shaft; any spot where you feel a rough depression instead of smooth or lightly rusted steel needs closer inspection under better light before that binder gets trusted with a load again.
6. Verify the safe working load rating is legible and correct
Every binder ships with a stamped or embossed SWL rating, and that stamp has to be readable in the field, not just on the original packaging. If years of chain scraping across the frame have worn the rating illegible, you're now guessing at capacity every time you rig a load — which is not a guess DOT accepts during roadside inspection. Binders with worn-off ratings get pulled from rotation regardless of how solid they otherwise feel.
7. Confirm full lock-out under tension
The final check happens under actual load: crank the binder down to working tension, then watch it for sixty seconds. A binder that creeps — where the handle inches backward or the chain visibly loosens without you touching it — has a failing locking mechanism even if every other component passed inspection. This is the step drivers skip most often in 2026, and it's the one that catches problems the visual checks miss.
8. Document the inspection before you roll
Log the binder condition, chain grade, and any defects found on your DVIR before the truck leaves the yard. A written record protects you if a roadside inspector questions your equipment, and it builds a maintenance history that flags binders approaching the end of their service life before they fail on the road.
Troubleshooting Common Load Binder Problems
- Handle won't lock flush: the pawl or lever cam is worn — retire the binder rather than forcing it closed with extra pressure.
- Chain slips through the hook under tension: the hook throat has spread beyond spec; replace the binder, not just the hook.
- Binder creeps loose overnight: check for a bent frame first, then inspect the ratchet pawl teeth for rounding.
- Rust appears within weeks of a wash: the protective coating has worn through; increase inspection frequency on that unit and plan for replacement.
- Two binders on the same load show uneven tension: confirm both are rated for the same chain grade — a 7,100 lb SWL binder paired with a 12,000 lb SWL binder on the same load splits stress unevenly.
Tools and Resources for Load Binder Inspection
Keep your inspection kit stocked with binders in the ratings you actually run. The ratchet binders vs lever binders comparison breaks down which style suits your typical load weight and how often each type needs hands-on inspection versus the other. Pair that with a chain and binder kit matched at the point of purchase so grade mismatches never enter the equation in the first place.
Trucking professionals have leaned on properly rated recovery and securement gear since TruckNTow started serving the industry out of Detroit in 1959, and the same rule applies now as it did then: the binder is only as strong as the weakest inspection you skipped.
What to Do Next
Once the binder inspection is second nature, extend the same discipline to the chain itself — a binder can pass every check above and still fail if the chain it's tensioning has its own hidden wear points from repeated hauls.
FAQ
How often should you inspect load binders?
Inspect load binders before every haul, not just at scheduled maintenance. A binder that passed inspection last month can develop a stress fracture or hook spread on a single hard-braking event.
What SWL rating do I need for a load binder?
The binder's safe working load rating must match or exceed the chain grade and diameter you're using, and the combined system needs an aggregate working load limit of at least half the cargo weight. Mismatched ratings are the top cause of binder failure.
Is a ratchet binder or lever binder safer to inspect?
Ratchet binders are generally easier to inspect because the mechanism is visible and testable through a full cycle without disconnecting the chain. Lever binders require checking the handle lock separately from the hook and frame.
What does a failed load binder inspection look like?
A failed inspection shows a cracked or bent frame, a hook throat spread more than 15% past spec, an illegible SWL stamp, or a ratchet pawl that skips teeth under tension. Any one of these means the binder gets pulled from service immediately.
Can you repair a cracked load binder?
No. A cracked frame has already failed structurally and welding or patching it does not restore the original rated capacity. Replace the binder rather than attempt a field repair.
How much weight can a load binder hold?
It depends on the model: common ratings run from 6,600 lbs SWL on lighter 3/8-inch Grade 70 setups up to 12,000 lbs and 13,000 lbs SWL on heavier folding handle and ratchet-style binders built for larger chain.
Do DOT inspectors check load binders?
Yes. Roadside inspections routinely check binder condition, chain-to-binder compatibility, and whether the SWL rating is legible, and any of those failing can put a rig out of service on the spot.
One Last Thing
The binder that fails is rarely the one that looks obviously worn — it's the one with a hairline frame crack that passed a quick glance for six months before finally letting go, so the sixty-second tension test in step seven above catches more real defects than the visual walk-around ever will.
