Wide load sign rules vary by state, but the federal baseline and common DOT requirements give you a clear framework for staying legal on any haul in 2026.
TL;DR: To display wide load signs legally, mount a sign measuring at least 18 inches tall by 84 inches wide (or 12 inches by 72 inches on the truck face, depending on state rules), with black lettering on yellow background, visible from 500 feet front and rear. Position it centered on the front and rear of the load, not cocked or obscured. Add corner flags and, on loads over 14 feet 6 inches wide, escort vehicles with their own oversize load signs. This guide covers mounting position, size specs, flag requirements, and the most common violations that get drivers cited in 2026.
Why This Matters
The FHWA sets baseline oversize load rules, but enforcement happens at the state level — and no two states are identical. Fines for non-compliant signage run $250–$1,500 per violation in most jurisdictions, and a DOT roadside inspection that catches a missing or improperly mounted sign can put you out of service. Getting the sign right before you leave the yard costs you 10 minutes. Getting it wrong costs you a day and a citation.
What You'll Need
- An oversize load or wide load sign meeting your state's minimum size (federal baseline: 18 in. x 84 in. for rear; many states accept 12 in. x 72 in. on the truck face)
- Hinged aluminum construction recommended — rigid signs survive highway buffeting better than banners for multi-day hauls
- 4 corner warning flags, minimum 18 in. x 18 in., bright orange
- Mounting hardware: bungee cords, ratchet mounts, or a magnetic bracket system rated for highway speeds
- A load height measuring stick if your state requires height verification before permit issuance
- A copy of your oversize permit (keep it in the cab, not the trailer box)
- Escort vehicle(s) equipped with their own oversize load signs when width exceeds 14 ft. 6 in. (varies by state — confirm your permit)
The Steps
Step 1 — Verify Your Permit Dimensions Before Choosing a Sign
Your state oversize permit lists the exact load width, height, and length. Those numbers determine which sign size you legally need. A load between 8 ft. 6 in. and 12 ft. wide typically requires the 12 in. x 72 in. sign on the towing unit face. Loads over 12 feet wide — or any load where the sign is mounted at the rear — require the 18 in. x 84 in. format in most states. Do not guess: pull the permit and match the sign to the permitted dimensions. Using an undersized sign when your permit specifies a larger one is a citable violation even if the sign is otherwise correct.
Expected outcome: You know exactly which sign size you need before you touch the truck.
Common mistake: Grabbing the 12 x 72 because it fits cleaner, when the rear mount legally requires 18 x 84.
Step 2 — Mount the Front Sign on the Truck, Not the Load

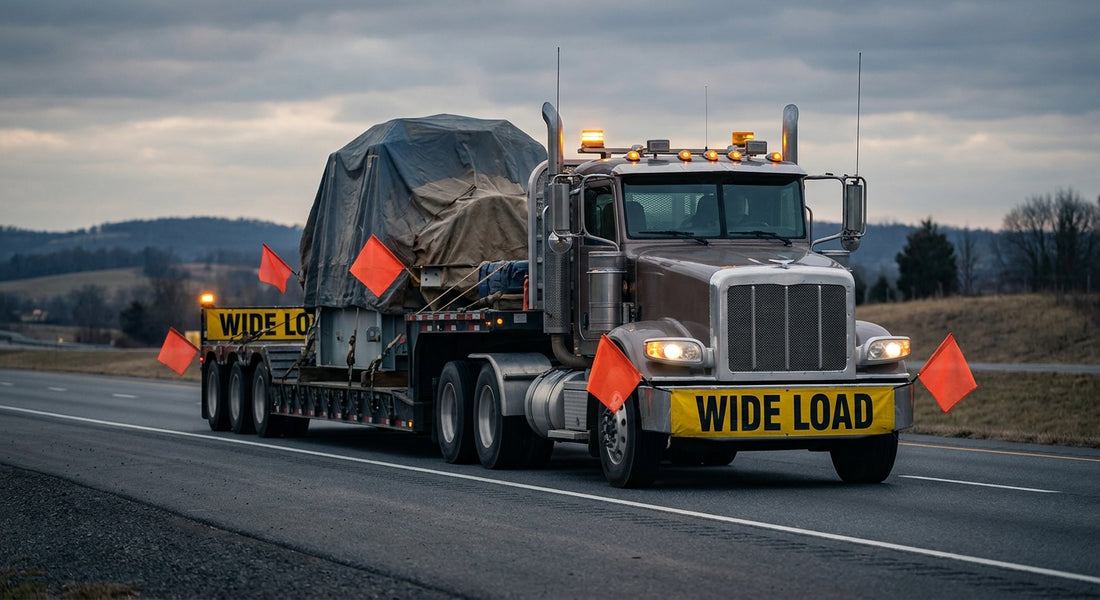

The front sign goes on the front face of the towing vehicle — centered horizontally, mounted as high as practical without exceeding 10 feet from the ground to the bottom of the sign. It must face forward and be readable from at least 500 feet. On a semi, this usually means bumper mounts or cab-roof mounts. The sign must be parallel to the road surface — no canting downward or upward. Hinged aluminum signs allow you to fold them flat when not in use and deploy them level every time.
If your load overhangs the front of the truck by more than 3 feet, the sign should travel on the overhanging load itself, still facing forward.
Common mistake: Mounting on the trailer king pin plate instead of the truck cab — this moves the sign back 20+ feet and it becomes invisible to oncoming traffic at distance.
Step 3 — Mount the Rear Sign on the Last Unit
The rear sign goes on the very last trailer or load unit, centered, facing rearward. For a wide load or oversize load sign, the reversible hinged aluminum format handles both front and rear duty without carrying two separate pieces. Height from ground to bottom of sign: no lower than 4 feet, no higher than 10 feet. The sign must be perpendicular to traffic — flat, not angled.
If the load overhangs the rear more than 4 feet, you also need a red flag or red light marking the overhang point, in addition to the sign.
Common mistake: Mounting the rear sign on the trailer frame where it gets obscured by the load itself. Walk 200 feet back and verify it's actually readable.
Step 4 — Attach Corner Flags at All Four Extremities
Federal rule 23 CFR 940 and most state supplements require bright orange warning flags at the widest points of the load. Each flag must be at least 18 in. x 18 in. Flags go at the four corners of the load's outermost extremities — not the trailer corners if the load extends beyond the trailer. Use a spring-mounted flag kit if the load surface is smooth metal; the spring absorbs highway vibration and keeps the flag visible rather than folded back against itself.
For loads requiring escort vehicles, those vehicles carry their own oversize load sign for escort vehicles — typically the 12 in. x 60 in. format — mounted front and rear of the escort unit.
Common mistake: Using flags smaller than 18 x 18 because "they were already on the truck." Undersized flags are a violation in 38 states.
Step 5 — Confirm Visibility and Secure Mounting Before Departure
Walk the rig before you pull out. Check: sign faces correct direction, no obscuring load material in front of it, mounting hardware is snug (no rattling or play), flags are deployed and not folded. At highway speed, an unsecured sign becomes a projectile and an instant out-of-service violation.
For a combined kit that covers flags, banners, and magnets in one bag, the Vulcan flags, oversize load banners, and magnets kit includes 2 stretch-cord banners, 4 magnets, 4 red flags, 4 orange flags, and a storage bag — one pull and everything is accounted for.
Expected outcome: A DOT inspector can visually verify compliant signage from the roadside without asking you to move the load.
Step 6 — Check Travel Time and Daylight Restrictions
Most states restrict oversize load movement to daylight hours — defined as 30 minutes after sunrise to 30 minutes before sunset. Some states add weekend and holiday restrictions. Your permit will specify. If you're running a route across multiple states in 2026, each state's restrictions apply independently. No sign configuration makes a nighttime move legal if your permit says daylight only.
Common mistake: Assuming a dawn departure counts as "after sunrise." In states like Texas and Ohio, pre-sunrise movement is a separate permit violation.
Step 7 — Document the Setup With a Photo Before Each Move
Take a photo of the front and rear sign mounting before departure. This takes 60 seconds and gives you documentation if a sign shifts during transit and you get pulled over. An officer can see from the timestamp that the sign was correctly mounted at origin. Keep the photos with your permit copy.
Troubleshooting
Sign vibrating loose at highway speed: Switch to a rigid hinged aluminum sign and use ratchet mounts instead of bungee cords. Bungees stretch at speed and lose clamping force.
Sign obscured by load overhang: Relocate the sign to a mounting point that clears the overhang, even if that means fabricating a standoff bracket. "Load was in the way" is not a defense at a weigh station.
Flags tearing in high wind: Switch to vinyl-coated nylon mesh construction. Solid fabric flags shred in sustained 60+ mph headwinds; mesh breathes and lasts.
Wrong sign size for state crossed: Carry both a 12 x 72 and an 18 x 84. Multi-state permits often have different requirements per segment. Swapping signs at the state line takes 5 minutes and avoids a citation.
Escort vehicle driver using a non-compliant sign: Escort vehicle signs must read "OVERSIZE LOAD" in black on yellow, same as the truck. A generic "WIDE LOAD" banner that doesn't meet the state's size spec puts the primary driver at risk, not just the escort.
Permit copy missing from cab: You can have a perfect sign setup and still get cited if you cannot produce the permit on demand. Keep a printed copy and a phone screenshot.
Tools and Resources
- Vulcan oversize load sign — hinged aluminum, 18 in. x 84 in. — standard rear truck/trailer sign
- Vulcan oversize load sign — hinged aluminum, 12 in. x 72 in. — front truck face sign
- Vulcan oversize load sign for escort vehicles — hinged aluminum, 12 in. x 60 in.
- Vulcan flags, oversize load banners, and magnets kit — complete corner flag and banner set
- QuickClick compact plus load height measuring stick — measures up to 15 feet; verifies height compliance before permit application
- Your state DOT oversize permit portal — look up movement restrictions, travel hour rules, and escort requirements by state
FAQ
What size does a wide load sign have to be? The federal baseline is 18 inches tall by 84 inches wide for rear-mounted signs. Front-mounted signs on the truck face are commonly accepted at 12 inches by 72 inches in most states. Always confirm with your specific state DOT permit requirements — some states mandate the larger size front and rear.
Does the sign have to say "WIDE LOAD" or "OVERSIZE LOAD"? Either wording is accepted federally, but some states specify one or the other. In 2026, Texas requires "OVERSIZE LOAD"; California accepts both. Check your permit. A reversible sign that reads "WIDE LOAD" on one side and "OVERSIZE LOAD" on the other covers both cases.
Can I use a magnetic wide load sign? Magnetic banners are legal for escort vehicles and lightly used hauls on smooth metal surfaces, but for the primary truck and trailer on multi-state routes, rigid hinged aluminum is the compliant choice. Magnetic banners detach at highway speed on older painted surfaces.
How many flags are required on a wide load? Four flags minimum — one at each outermost corner of the load. Each must be at least 18 in. x 18 in. and bright orange. If the load overhangs the rear by more than 4 feet, a red flag or red light at the overhang point is also required.
Do escort vehicles need their own oversize load signs? Yes. When your load exceeds the width threshold requiring an escort (typically 14 ft. 6 in., but varies by state), each escort vehicle must display a compliant oversize load sign front and rear. The escort sign is typically the 12 in. x 60 in. format.
Can I move a wide load at night? Most states prohibit oversize load movement outside daylight hours. Some states allow night moves with a separate permit and additional lighting requirements. Your oversize permit will specify movement hours. Assume daylight-only unless your permit explicitly allows otherwise.
What happens if my wide load sign is missing at a weigh station? A missing or non-compliant sign is a citable violation. Fines range from $250 to over $1,500 depending on state and whether it is a repeat offense. In some states, the inspector can place you out of service until the sign is corrected.
Does the sign need to be illuminated at dusk? If your state allows dusk movement, yes — the sign must be legible, which typically requires reflective lettering or an external light source. Most modern aluminum oversize load signs use retroreflective sheeting that satisfies this requirement without an added light.
One Last Thing
The single most-cited wide load signage violation in DOT inspections in 2026 is not a missing sign — it is a sign mounted at the wrong height. Signs mounted above 10 feet from the ground are out of spec and are invisible to passenger vehicle drivers at the critical 500-foot recognition distance. Before every haul, take 30 seconds to measure the mounting height. A tape measure or a load height stick catches this before an inspector does.
