A wheel-lift recovery on a dark shoulder is a bad place to discover a rigging mistake. If the tow hook chains bolted to your recovery hardware aren't connected correctly to the trailer's own trailer safety chains, a DOT roadside inspection can put you out of service on the spot, and a chain that isn't crossed or sized right can let a load swing loose at highway speed. Connecting tow hook chains to trailer safety chains correctly takes five minutes once you know the crossing pattern, the hook that matches your trailer's loop, and how much slack keeps you both legal and safe going into 2026.
- Cross tow hook chains in an X pattern under the trailer tongue before hooking to trailer safety chains -- the first thing a DOT inspector checks.
- Match chain capacity to trailer GVWR: 5/16-inch Grade 70 chain rated near 4,700 lbs SWL covers most single-car loads.
- Grab hooks and clevis hooks attach to safety chain loops differently -- pick the hook by the trailer's factory hardware, not habit.
- Leave 2 to 4 links of slack per side so the trailer can turn without the chain dragging pavement.
- Retire any hook with a bent throat or seized rust before hauling in 2026 -- corrosion hides fatigue cracks.
Why This Matters
Safety chains exist for one reason: if the coupler fails or the hitch pin backs out, the chains are what keep the trailer attached to the tow vehicle instead of becoming a projectile in the lane behind you. Tow hook chains do the same job during a recovery -- they're the connection between your hook and the vehicle or trailer being pulled. When the two systems meet at a coupler or a wheel-lift point, the connection has to hold under shock load, not just static weight.
TruckNTow has supplied trailer safety chains and recovery hardware to working crews since 1959, and the failure pattern hasn't changed in decades: chains sized for looks instead of GVWR, hooks mismatched to the loop they're meant to grab, and slack left so long the chain drags and grinds through a link every mile. Get the connection right once and it becomes a five-minute pre-trip check.
Before You Start
- Confirm your trailer's GVWR on the VIN plate -- chain capacity gets selected against this number, not against the vehicle you're hauling.
- Inspect both sets of hardware -- the trailer's factory safety chain loops and your tow hook chains -- for rust, bent links, or a stretched hook throat before you rig anything.
- The gotcha: a chain that's the right grade but the wrong length forces you to double-wrap a link to take up slack, and a doubled link cuts the chain's usable capacity. Buy chain lengths matched to your typical coupler height instead of compensating with wraps.
Match Chain Capacity to Your Trailer's GVWR
- Read the trailer's GVWR off the VIN plate near the tongue or axle.
- Select a chain rated at or above that number. A 5/16-inch Grade 70 chain carries roughly 4,700 lbs safe working load, which covers most single-car and light utility trailers. Step up to a VULCAN alloy tow chain with forged long J-hook in 3/8-inch Grade 80 for heavier hauls at 7,100 lbs safe working load.
- Check that both chains -- left and right -- carry the same rating. Mismatched capacity on one side means the lighter chain is your actual limit, not the average.
Expected result: two chains of equal, GVWR-appropriate capacity ready to rig, not one heavy chain and one mismatched spare pulled from the truck box.

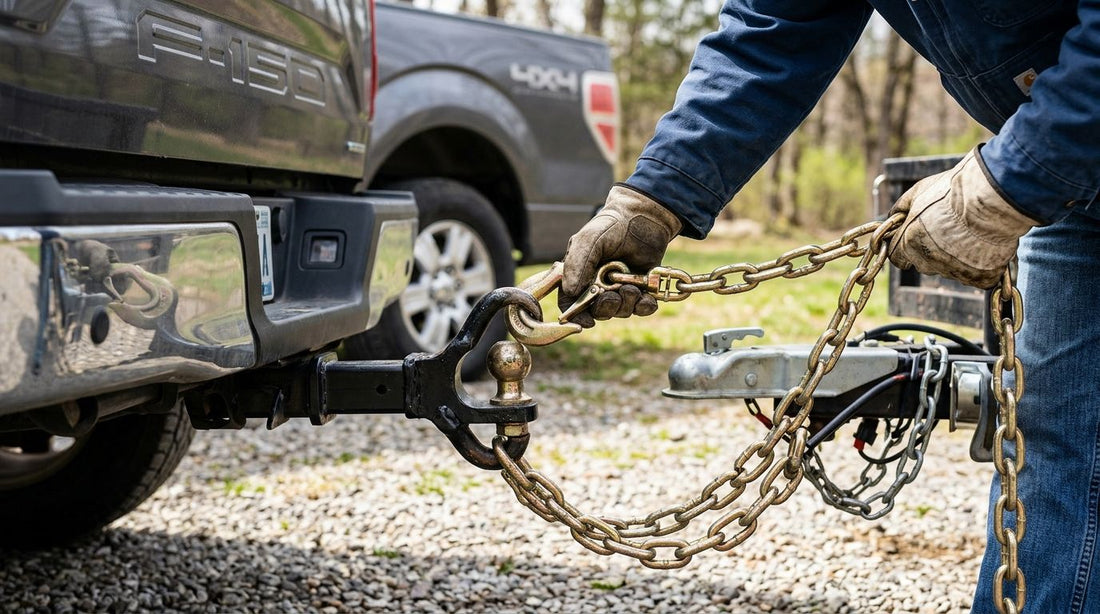

Rig the X-Cross Connection
- Route the left tow hook chain to the right-side safety chain loop on the trailer tongue, and the right chain to the left-side loop, forming an X underneath the coupler.
- Hook each chain into its loop with the hook opening facing upward -- a hook seated upside down can walk loose over rough pavement.
- Take up slack until each chain has roughly 2 to 4 links of give -- enough for the trailer to turn tight without the chain going bar-taut, not so much that it drags.
- Confirm the crossed chains would catch the coupler if it separated from the ball, which is the entire point of the X pattern.
Expected result: the coupler sits inside a cradle of crossed chain, with no more than a few links of slack on either side and zero contact with the road surface.
Choose the Right Hook for the Safety Chain Loop
Not every hook seats the same way in a factory safety chain loop, and forcing the wrong one is how chains slip off mid-haul.
| Hook style | How it connects | Best for |
|---|---|---|
| Grab hook | Pinches onto a chain link | Shortening chain length on the fly, chain-to-chain connections |
| Clevis hook | Pins closed around a loop or link | Permanent connections into a trailer's factory safety chain ring |
| Twisted T/J combo | Rotates to seat flat on a link or frame loop | Car hauler and wheel-lift rigging where the angle changes |
Grab hooks hold well under straight pull but don't cradle a smooth round loop. Clevis hooks hold position under side-load, which is what a turning trailer generates. If you're rigging unfamiliar hardware, read how to choose between grab hooks and clevis hooks before committing to a connection you can't quickly undo.
“If a tow hook chain still has more than four links of slack after you've hooked it, the chain is too long for that coupler.”
Second Setup: Connecting to a Wheel-Lift Chain Tail
Car haulers running tie-downs with a chain tail on the ratchet end rig this differently than a straight coupler haul. Instead of crossing under a tongue, you hook the chain tail directly to the vehicle's tow point or frame loop, then run the ratchet end back to the deck anchor.
- Seat the chain tail's twisted combo hook flat against the vehicle's factory tow point -- metal to metal, never against a plastic bumper cover.
- Run the strap back to the deck anchor or wheel-lift arm and take up slack by hand before touching the ratchet.
- Crank the ratchet in stages, checking between pulls that the chain tail hasn't shifted position on the tow point.
Expected result: the vehicle sits square with the chain tail taking shock load and the strap taking static tension -- the same division of labor a coupler's safety chains and hitch ball share on a straight tow in 2026.
Troubleshooting
- Chain drags and sparks on pavement: too much slack. Shorten by moving to the next link up on the hook, never by twisting the chain.
- Hook won't seat flush in the loop: the loop is undersized for that hook style. Switch from a grab hook to a clevis hook rather than forcing it.
- Chain seized with rust at the link joints: retire the chain. Rust that has locked a link in place has already started pitting the steel underneath.
- One side pulls tighter than the other: either the trailer's loops aren't mounted symmetrically or you crossed the chains on the wrong sides. Re-rig the X pattern before hauling.
- Chain stretches under load despite the right rating: you're likely on unrated or Grade 30 chain sold as Grade 70. Confirm the grade stamp on the link before every long haul.
Customize Your Rigging
Once the X-cross connection is second nature, the next variable is matching chain grade to the specific job rather than defaulting to whatever's already in the truck box. A car hauler running near max GVWR in 2026 sizes chain to the trailer's rated capacity, not the tow vehicle's, and that number changes every time the equipment changes. For a deeper breakdown by weight class, read how to size safety chains for your trailer's GVWR. Free ground shipping applies across the TruckNTow catalog, so ordering a correct-length chain beats improvising with wraps.
FAQ
What's the best way to connect tow hook chains to trailer safety chains?
Cross the chains in an X pattern under the trailer tongue, hooking the left chain to the right-side loop and the right chain to the left-side loop, then leave 2 to 4 links of slack per side. The X pattern is what catches the coupler if it separates from the ball.
How much slack should trailer safety chains have?
Leave enough for the trailer to make its sharpest turn without the chain pulling bar-taut, typically 2 to 4 links per side. More slack lets the chain drag on pavement; less can snap it during a tight turn.
Is a clevis hook better than a grab hook for safety chains?
A clevis hook pins closed around a loop and holds position under side-load, making it the stronger choice for a connection into a factory safety chain ring. A grab hook is better suited to shortening chain length on the fly.
What size chain do I need for a car hauler trailer?
Match chain capacity to the trailer's GVWR, not the vehicle being hauled. A 5/16-inch Grade 70 chain rated around 4,700 lbs safe working load covers most single-car trailers; heavier loads call for 3/8-inch Grade 80 rated near 7,100 lbs.
Can I use the same chain for tow hooks and trailer safety chains?
Yes, provided the chain's grade and safe working load meet or exceed the trailer's GVWR requirement. Many recovery crews run the same Grade 70 or Grade 80 stock for both jobs.
How do I know if my tow chain hook is worn out?
Check the hook throat for any visible bend or widening beyond its original shape, and look for rust that could be masking a crack. Retire any hook showing either sign before the next haul.
Why do DOT inspectors check safety chain connections?
Safety chains are the backup restraint if a coupler or hitch pin fails, so inspectors verify the chains are crossed, rated to GVWR, and not dragging. A failure on this item is a common out-of-service violation.
What's the difference between Grade 70 and Grade 80 chain for towing?
Grade 80 carries a higher safe working load than Grade 70 for heavy-duty work -- 3/8-inch Grade 80 rates near 7,100 lbs, while 5/16-inch Grade 70 rates around 4,700 lbs. Heavier hauls call for the higher grade.
One Last Thing
The detail most crews miss isn't the crossing pattern -- it's hook orientation. A hook seated upside down in a safety chain loop can walk itself loose over a rough mile of interstate even with correct slack and the right grade of chain, because vibration works the open side of the hook toward the loop's edge instead of away from it. Rig the hook opening facing up and away from the direction of travel, every time, and that failure mode disappears.
