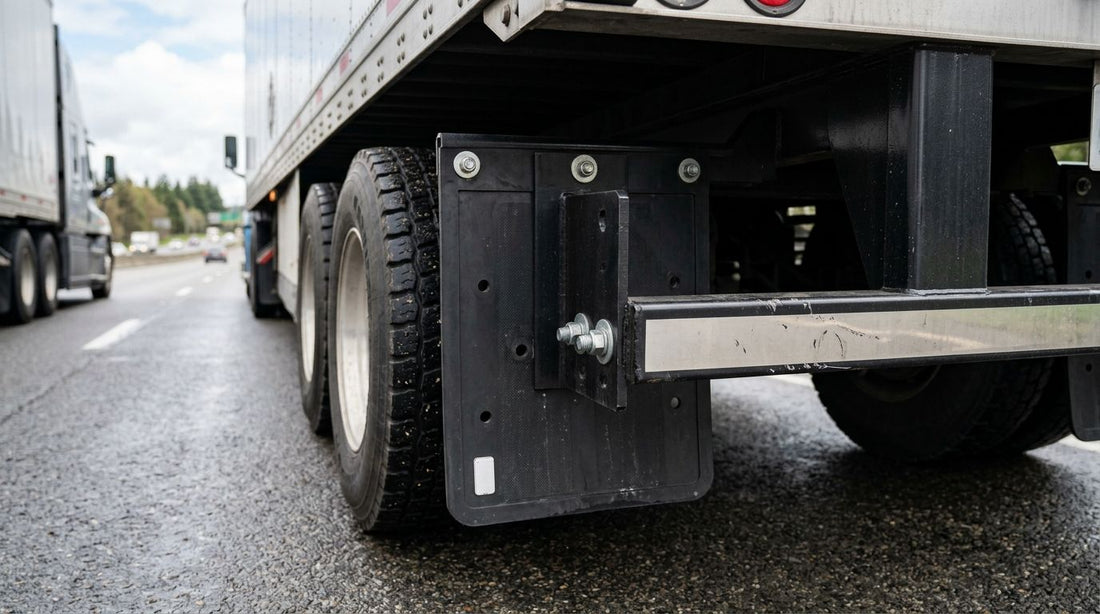

A gap between the mud flap and the rear underride guard is exactly where a state trooper's flashlight lands during a roadside inspection, and it's exactly where road spray, gravel, and ice get flung at the cars following behind. Instead of eyeballing the mount and hoping the flap hangs flush, bolt a hanger bracket directly to the guard crossmember and close the remaining gap with a backing plate sized to the offset, so the flap sits tight against the guard with no daylight showing through.
- Closing the gap when you connect mud flaps to a rear underride guard means matching the hanger bracket offset to the guard's crossmember depth, not just bolting through the nearest hole.
- Federal spec requires the flap's bottom edge within 10 inches of the ground unloaded — a gapped mount usually fails this before it fails on width.
- A 1/4-inch to 1/2-inch backing plate or spacer block closes most gaps caused by guard flanges that sit proud of the frame rail.
- Retorque hanger bolts to 35-45 ft-lbs and recheck after the first 500 miles once the rubber flap seats.
- TruckNTow's mud flap hanger and rear underride guard guides cover the parts list if you're starting from a bare crossmember.
Why This Gap Costs You
A rear underride guard is built to stop a passenger car from sliding underneath your trailer in a rear-end collision, and the mud flap hangers that bolt to it are supposed to close the last few inches so debris doesn't skip past the guard and hit the windshield behind you. When the flap doesn't sit flush, you get two separate failures at once: a DOT inspector can write you up for inadequate splash suppression, and the flap flutters loose enough in transit to wear through its own mounting holes within a few thousand miles.
The rear underride guard itself sits at a fixed height dictated by federal safety rules, and most crossmembers weren't drilled with mud flap brackets in mind — they were drilled for the guard manufacturer's own mounting pattern. That mismatch is the root cause of almost every gapped install this year, and it's fixable with the right spacer stack rather than a full bracket swap.
Before You Start
- A tape measure, a torque wrench, and either a 1/4-inch or 1/2-inch flat steel backing plate — buy both thicknesses before you're under the trailer, because guessing wrong means a second trip.
- Grade 5 carriage bolts sized to your hanger bracket's existing holes — don't reuse hardware that's already been through one mounting cycle; the threads gall.
- The gotcha: guard crossmembers from different manufacturers sit at different depths behind the frame rail, so a hanger bracket that closed the gap on one trailer in your fleet can leave a 3/4-inch gap on the next one even if both guards look identical from the ground.
Set Up the Flap Hanger Bracket
- Measure the distance from the face of the rear underride guard's crossmember to the rearmost edge of the frame rail where the hanger normally bolts. Write this number down — it's your offset.
- Hold the hanger bracket against the crossmember and check whether the bracket's flange sits flush or floats off the metal. Anything over 1/8 inch of daylight means you need a backing plate before you tighten a single bolt.
- Mark the two outer bolt holes on the crossmember through the bracket's slotted holes, then drill 9/16-inch holes if the crossmember isn't prepunched.
- Bolt the bracket loosely with the carriage bolts so it can still shift side to side.
Expected result: the bracket sits against the crossmember with no visible rock when you push on it by hand, and the bolt holes line up without forcing the bracket out of square.
Close the Gap With a Backing Plate
- Cut the backing plate to the offset measurement from step one, adding 1/2 inch on each side so it overlaps the bracket flange.
- Slide the plate between the bracket and the crossmember, then re-thread the carriage bolts through the plate, bracket, and crossmember in one stack.
- Snug the bolts by hand first to keep the plate centered, then torque to 35-45 ft-lbs in a criss-cross pattern so the plate doesn't tilt.
- Hang the mud flap on the bracket's lower rod and check the gap between the flap's top edge and the guard's bottom edge — it should be under 1 inch, with no visible slot a hand can pass through.
Expected result: the flap hangs flush against the underride guard with the gap closed, and the bracket no longer flexes when you pull down on the bottom corner of the flap.
Retrofitting a Guard With No Predrilled Mounting Holes
Some older rear underride guards were fabricated before mud flap brackets were standard equipment, which means you're drilling the crossmember from scratch instead of matching existing holes. Center the bracket vertically on the crossmember face, mark both bolt locations with a punch before drilling so the bit doesn't wander, and drill pilot holes at 1/4 inch before stepping up to the final 9/16-inch size — stepping the drill keeps the crossmember's galvanized coating from chipping around the hole edge, which is the detail that causes rust-through two winters later.
Troubleshooting
- Flap still shows a gap after tightening: the backing plate is too thin for the guard's actual offset — remeasure and cut a second plate rather than stacking washers, which loosens under vibration.
- Bracket bolts back out within a few weeks: you torqued below 35 ft-lbs or reused old carriage bolts with worn threads; replace the hardware and retorque to spec.
- Flap drags on the ground when loaded: the hanger was mounted too low relative to the guard — reposition the bracket up along its slotted holes before touching the flap itself.
- Gap reappears after a rough haul: the crossmember flexed under load and pulled the bracket forward; add a second bolt pair at the bracket's rear flange to triangulate the mount.
Customize Your Mud Flap Setup
Once the gap is closed and the bracket holds torque, the next upgrade is the flap material itself — a stiffer flap resists the flutter that loosens hanger bolts over time, and it's worth checking the best semi truck mud flaps for winter driving in 2026 if your routes see road salt and ice buildup, since cold-weather compounds stay flexible instead of cracking at the hanger rod. Fleets running mixed trailer ages should standardize on one bracket-and-backing-plate combination across the yard rather than customizing each trailer individually — it cuts inventory down to two part numbers instead of a dozen.
FAQ
How do you connect mud flaps to a rear underride guard without a gap?
Bolt a hanger bracket to the guard's crossmember, measure the offset between the bracket flange and the crossmember face, and close any gap over 1/8 inch with a steel backing plate before mounting the flap. This keeps the flap flush against the guard instead of floating loose.
What's the legal ground clearance for a semi truck mud flap in 2026?
Federal regulation 49 CFR 393.86 requires the flap's bottom edge to sit within 10 inches of the ground when the trailer is unloaded. A gapped mount that lets the flap ride too high is one of the more common items flagged at roadside inspections.
How high can a rear underride guard sit above the ground?
FMVSS 223 and 224 cap the guard's bottom edge at 22 inches above the ground. A guard mounted near that limit often needs a taller mud flap hanger to close the gap without leaving a visible slot.
Do I need a backing plate to mount a mud flap on an underride guard?
Only if the hanger bracket doesn't sit flush against the crossmember. Guards from different manufacturers sit at different depths, so a backing plate cut to the exact offset is often the only way to eliminate a gap without swapping the whole bracket.
What torque spec should mud flap hanger bolts use?
Torque hanger bolts to 35-45 ft-lbs in a criss-cross pattern once the backing plate is stacked in place. Recheck the torque after the first 500 miles, since the rubber flap and bracket both seat slightly under initial vibration.
Why does my mud flap keep pulling away from the underride guard?
Usually the crossmember is flexing under load and pulling the bracket forward over time. Adding a second bolt pair at the rear flange of the bracket triangulates the mount and stops the drift.
Can I drill new mounting holes into a rear underride guard crossmember?
Yes, as long as you step the drill bit size up gradually (starting around 1/4 inch before finishing at 9/16 inch) to avoid chipping the galvanized coating, which leads to rust around the hole within a season or two.
One Last Thing
Most gapped mud flap installs aren't a bracket problem at all — they're a measurement problem, because nobody wrote down the crossmember offset before cutting the backing plate, and the second attempt gets rushed to make the load out on time. Measure once, cut the plate to that number plus a half inch of overlap, and the flap sits flush the first time.
