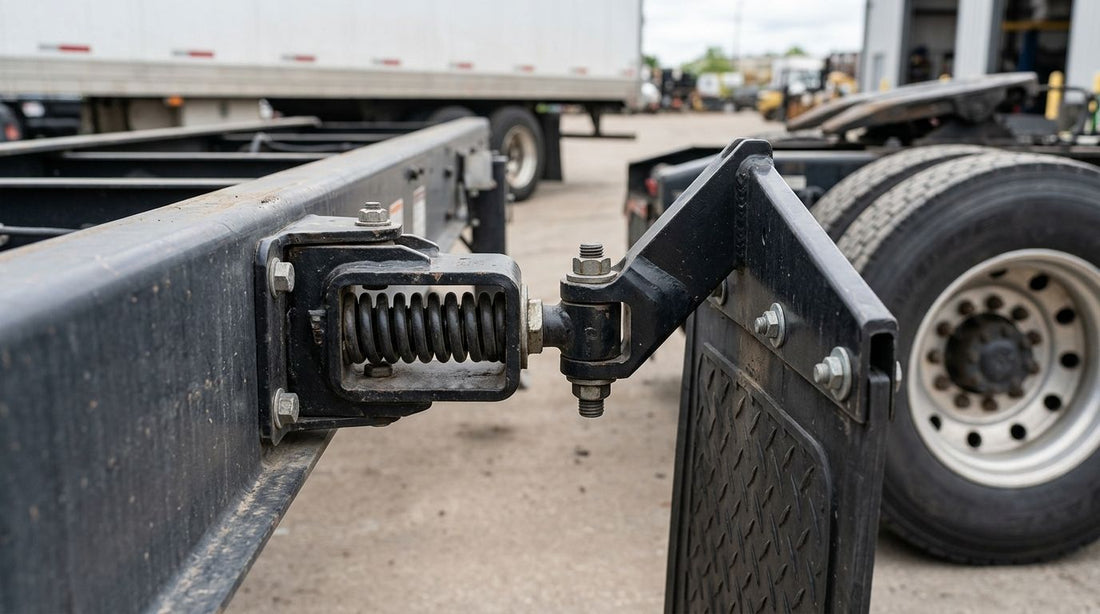

Backing a loaded trailer into a dock with rigid mud flap hardware usually ends one of two ways: the hanger bar bends or the mounting bolts shear clean off, and either way the truck sits until someone replaces the bracket. Bolting the hanger arm to a spring-loaded breakaway mount instead lets the whole assembly kick backward on impact and spring forward to center once the obstruction clears, so a curb clip or dock strike costs you thirty seconds instead of a shop visit.
- Connecting mud flap hangers to a spring-loaded breakaway mount takes 5/16-inch or 3/8-inch hardware and about 20 minutes per side in 2026.
- Bolt the breakaway bracket to the frame or crossmember first, then pivot the hanger arm onto the spring stud second, or the tension sets wrong.
- A properly tensioned mount snaps the flap back to center after a curb strike; if it doesn't, the spring nut needs another quarter turn.
- L-arm and U-channel hanger styles both mount to the same breakaway bracket, but U-channel needs a wider bracket base.
- Most states require the flap's bottom edge within roughly 10 inches of the ground, so set arm length after the mount is torqued, not before.
Why This Matters
Rigid mud flap hangers have one failure mode: they hold position until something hits hard enough to bend the arm, shear a bolt, or tear the bracket off the frame rail. On a truck backing into tight docks or gravel yards every day, that failure mode shows up weekly, not once a season.
A spring-loaded breakaway mount changes the physics of the hit. Instead of driving the impact straight into the frame, the hanger pivots on a spring-loaded stud, absorbs the strike, and returns the flap to its running position without a wrench touching it. Fleets working through how to install mud flap hangers on new trucks in 2026 are speccing breakaway mounts at install time, because the labor is the same 20 minutes it takes to bolt on rigid hardware that gets replaced by spring anyway.
Trucking outfits that have run this hardware since long before spring-loaded mounts were common — TruckNTow has been supplying trucking professionals since 1959 — know the pattern: a rigid bracket lasts until the first bad backing job, and a breakaway mount lasts until the spring wears out, which is a much longer clock.
Before You Start
- Tools and hardware: 1/2-inch and 9/16-inch sockets, a torque wrench or impact driver, the spring-loaded breakaway bracket kit, the hanger arm, and a tape measure to set final flap height.
- Access needed: a clear mounting point on the frame rail or existing hanger crossmember — drill new holes if the OEM pattern doesn't line up with the breakaway bracket's bolt spacing.
- The gotcha: pre-load the spring tension before you final-torque the bracket bolts to the frame. Torquing the bracket down first locks its rotation in the wrong position, and the hanger will bind against the flap instead of swinging free on impact — you'll have to back the bolts out and start over.
Mount the Breakaway Bracket to the Frame
- Position the bracket against the frame rail or crossmember where the old rigid hanger was mounted, keeping the pivot point facing rearward so the arm swings backward on impact, not sideways into the tire.
- Mark and drill mounting holes if the bracket doesn't match the existing bolt pattern — most breakaway brackets take 5/16-inch or 3/8-inch bolts depending on the kit.
- Hand-thread the mounting bolts through the bracket and frame but leave them loose — don't torque yet.
- Rotate the bracket to the angle that lets the spring sit at rest in the neutral (centered) position, then snug the bolts just enough to hold that angle.
Expected result: the bracket sits flush against the frame, doesn't rock, and the pivot arm swings freely by hand before any final torque is applied.
Attach the Mud Flap Hanger Arm to the Mount
- Slide the hanger arm's mounting eye over the breakaway bracket's spring stud.
- Fit the retaining nut or clip that holds the arm on the stud, following the kit's stack order — spring, then washer, then arm, then lock nut, in that sequence on most designs.
- Bolt the mud flap to the hanger arm's bottom plate, using the same hardware pattern as the flap you're replacing.
- Now torque the bracket-to-frame bolts to the spec printed on the kit's instruction sheet, and torque the spring stud's retaining nut separately.
Expected result: the hanger arm hangs at rest in the same running position as a rigid hanger, but you can pull it backward by hand and it snaps forward again once released.
Set Spring Tension and Confirm Breakaway Return
- Pull the hanger arm backward by hand to roughly 45 degrees, simulating a curb or dock impact.
- Release it and watch where it settles — it should return to the same centered position every time, not drift left or right.
- If it doesn't return to center, tighten the spring tension nut a quarter turn and re-test.
- Measure the flap's bottom edge off the ground once the arm is at rest — keep it within roughly 10 inches, which is the ground-clearance limit written into most state mud flap regulations.
“If the hanger swings back but the flap doesn't return to center, the spring tension is off, not the bracket.”
Mounting on a Pickup or Light-Duty Frame vs. a Semi Crossmember
The same breakaway hardware works on light-duty trucks, but the mounting point changes. A semi's crossmember gives you a flat, thick steel surface to bolt through; a pickup's frame rail is thinner and often already carrying a factory splash guard bracket that has to come off first. Anyone running rubber mud flaps for pickup trucks should confirm the bracket kit's bolt spacing against the factory holes before drilling anything new — pickup frame rails have less room for error than a semi's crossmember.
| Hanger Style | Compatible Mount | Best For | Verdict |
|---|---|---|---|
| L-arm hanger | Standard breakaway bracket, single bolt pattern | Semi trucks and trailers with a flat crossmember | Buy — fits most breakaway kits without modification |
| U-channel hanger | Wide-base breakaway bracket | Fleet trucks needing extra lateral stability | Buy — better against sideways impact, needs a wider bracket |
| Rigid factory hanger | No breakaway bracket | Trucks that never back into tight spaces | Skip — no give on impact, first choice for replacement |
Troubleshooting
- Hanger doesn't spring back after a test pull: the tension nut is backed off. Add a quarter turn and re-test before driving.
- Flap drags on the ground at highway speed: the arm is mounted too long, or the breakaway bracket sits too low on the frame. Re-measure ground clearance and trim the arm.
- Bracket rattles or shifts after a few hundred miles: the frame bolts weren't torqued to the kit's spec after tension was set. Re-torque both the bracket bolts and the spring stud nut.
- Hanger swings but never returns fully to center: the spring is worn or corroded from road salt exposure. Replace the spring-loaded bracket rather than trying to re-tension a dead spring.
- Bolt holes don't line up with the OEM hanger bar: use a shim plate or drill an offset hole rather than forcing the bracket at an angle — a crooked bracket won't swing true on impact.
Customize Your Setup
Once the breakaway mount is dialed in on one side, mirror the same steps on the opposite hanger so both flaps return to the same height and angle — mismatched tension on left and right sides is the most common complaint after a DIY install. Fleets running mixed mud flap widths across a yard should check semi truck mud flaps ranked by durability before standardizing hardware across trucks, since a heavier flap needs more spring tension to swing clean.
FAQ
What size bolts connect a mud flap hanger to a spring-loaded breakaway mount?
Most breakaway bracket kits use 5/16-inch or 3/8-inch bolts for both the frame mount and the hanger arm pivot. Check the kit's instruction sheet before drilling, since bolt spacing varies between L-arm and U-channel styles.
Do spring-loaded breakaway mounts work with any mud flap hanger?
Both L-arm and U-channel hanger styles fit a standard breakaway bracket, but U-channel hangers need the wider-base version of the bracket. Rigid factory hangers with no pivot point aren't compatible without swapping the whole hanger assembly.
How do I know if the spring tension is set correctly?
Pull the hanger arm back by hand and let go — it should return to the exact same centered position every time. If it drifts left, right, or stays kicked back, the tension nut needs another quarter turn.
How far off the ground should a mud flap hang after mounting on a breakaway bracket?
Most state regulations put the limit at roughly 10 inches from the ground to the bottom edge of the flap. Set the hanger arm length after final torque, since tightening the bracket can shift the flap's resting height slightly.
Can I install a spring-loaded breakaway mount on a pickup truck?
Yes, the same breakaway hardware works on light-duty frames, but pickup frame rails are thinner than a semi's crossmember and often already carry a factory splash guard bracket that needs removal first.
Why does my hanger bind instead of swinging freely after installation?
This almost always means the bracket was torqued to the frame before the spring tension was set, locking the pivot at the wrong rotation. Back the frame bolts out, reset the spring's neutral position, then re-torque.
How often should I inspect a spring-loaded mud flap hanger?
Check it at every pre-trip inspection alongside the rest of the hanger hardware — road salt and corrosion weaken the spring over time, and a weak spring won't return the flap to center after an impact.
One Last Thing
The spring stud nut is the part everyone forgets to re-check after the first hard winter — road salt works into that joint faster than into the frame bolts, and a corroded spring loses tension gradually enough that you won't notice until a flap stops returning to center after a curb strike. Put it on the same inspection interval as your semi truck mud flaps and it stops being a surprise.
