Hooking up a tractor to a trailer takes thirty seconds if the gladhands seat right — and it takes an hour of troubleshooting a hissing leak on the shoulder of I-75 if they don't. Getting the connection right the first time keeps your air system charged, your trailer brakes responsive, and your DVIR clean.
- Connect the emergency (red) gladhand before the service (blue) one — this keeps trailer spring brakes set until air pressure builds.
- Chock the trailer wheels before connecting; a rolling trailer during hookup is a common cause of gladhand damage.
- Cab air gauge should read 100-125 psi before you release the trailer parking brake and pull out.
- A hissing gladhand seal after connection means replace the rubber seal, not force the handle tighter.
Why this matters
Gladhands are the coupling point where the tractor's air system talks to the trailer's brakes, and a bad connection doesn't just cost you time — it can leave a trailer with no working service brakes or, worse, no way to release the spring brakes at all. FMCSA pre-trip inspection standards treat the air line connection as a checked item for a reason: a seal that looks fine but has a hairline crack can bleed air fast enough to trip a low-air warning fifteen minutes into a run. Drivers who skip the tug test after connecting are the ones who find out about a bad hookup at 55 mph instead of in the yard.
What you'll need
- Clean gloves — grease and road film on the gladhand seal is the number one cause of a slow leak
- A rag to wipe the coupler face and rubber seal before mating
- Wheel chocks set against the trailer tires before you back under
- A working air gauge in the cab (factory gauge is fine, just confirm it holds steady)
- A driver's vehicle inspection report to log the pre-trip once the hookup is verified
- A flashlight if you're connecting at night or under a dock
The steps
1. Chock the trailer before you back under
A trailer that rolls even six inches while you're lining up gladhands can shear a coupler or crush a hand caught between the units. Set wheel chocks for semi trucks against both sides of at least one axle before you get near the fifth wheel. Skipping this step is the most common reason gladhand connections go wrong before the air lines even touch. Expected outcome: the trailer stays put through the entire coupling sequence, hands included.
2. Back the tractor to the right distance
Position the tractor so the gladhand hoses reach the trailer's couplers without stretching taut or hanging in a loop that drags the ground. Hoses under tension pull the seal off-center and cause slow leaks that won't show up until you're 40 miles down the highway. If the hoses barely reach, back up another few inches rather than forcing the connection — a stretched hose is a torn hose waiting to happen, and that's a roadside failure in 2026 pricing on tow bills you don't want.
3. Clean both coupler faces
Wipe the rubber seal on the tractor's gladhand and the mating face on the trailer's coupler with a dry rag. Grit, road salt, and old grease sitting in the seal groove are why a coupling that locks fine still leaks air. This takes fifteen seconds and prevents 90% of the "why won't this hold pressure" calls shops get.

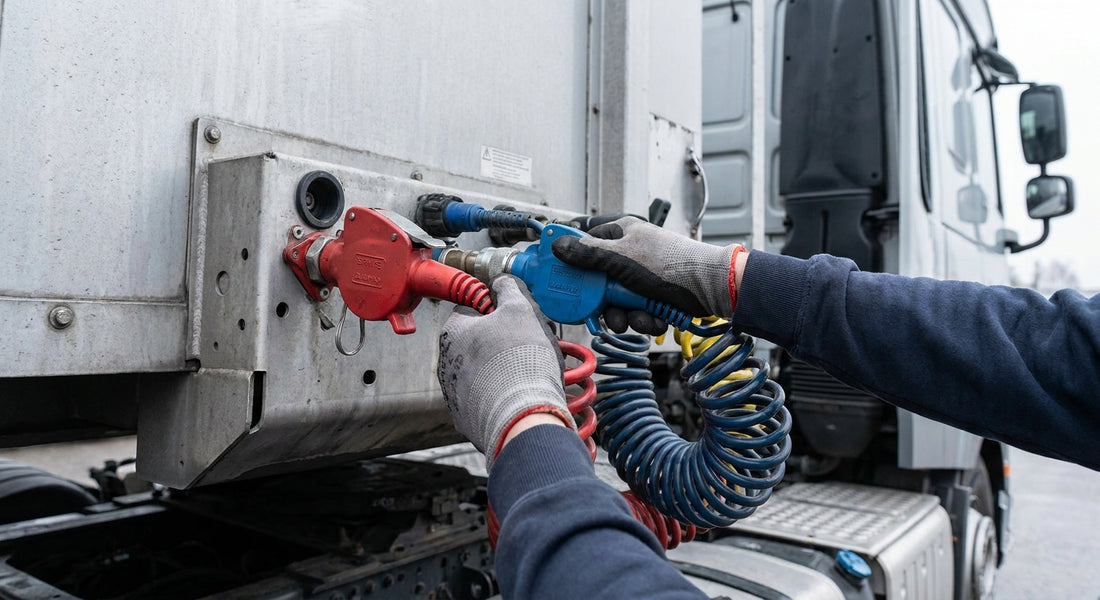

4. Connect the emergency (red) line first
Align the red gladhand coupler at roughly a 90-degree angle to the trailer's red coupler, push together, then rotate down until the locking lug clicks into place. Connecting emergency before service matters because the trailer's spring brakes stay mechanically set until air pressure reaches the system — so if something goes wrong mid-connection, the trailer isn't left in a state where it could roll. Buy this order into your routine and treat it as non-negotiable, not optional sequencing.
5. Connect the service (blue) line second
Same motion: align, push, rotate down to lock. Once both lines are seated, give each hose a firm tug downward — a properly locked gladhand won't pop loose under hand pressure. If a coupler separates during the tug test, it wasn't seated; disconnect, clean the seal again, and reconnect.
6. Route the hoses so they don't drag or kink
Cross the two air lines slightly so they clear the trailer frame and fifth-wheel plate through a full turn radius, without so much slack that they drag on the ground or so little that they pull taut on a sharp turn. A dragging hose wears through its outer jacket in a matter of weeks and turns into a slow leak, then a blowout.
7. Charge the system and check the gauge
Start the tractor and let air pressure build to the normal operating range — most systems run 100-125 psi on the cab gauge. Walk both gladhands and listen for hissing; a good connection is silent under full pressure. This is also the moment to check wiring the 7-way trailer plug if you're coupling electrical along with air — a loose 7-way often gets overlooked while attention is on the gladhands.
8. Release the tractor protection valve and tug-test the whole rig
Pull the yellow tractor protection knob to apply trailer air, confirm the trailer's spring brakes release (you'll hear the air exhaust and feel the trailer settle), then pull forward slowly against the still-set brakes before fully releasing. A rig that creeps forward with brakes supposedly applied means a bad connection somewhere in the system — stop and recheck before pulling onto the road. Common mistake: skipping this tug test because the gauge looked fine; a full gauge doesn't guarantee the trailer brakes are actually receiving that pressure.
Troubleshooting
- Hissing at the gladhand after connection — the rubber seal is cracked or has debris trapped in it. Disconnect, clean, and inspect the seal; replace if it's glazed or split.
- Coupler won't lock down — the locking lug is bent or the coupler face is worn past spec. Don't force it with pliers; swap the gladhand assembly.
- Trailer brakes won't release — check that the tractor protection valve is fully engaged and that cab pressure is above the system's cut-in threshold, typically around 90-100 psi.
- Hoses drag on tight turns — not enough slack was left during hookup. Re-route with a slight cross pattern instead of a straight run.
- Gladhand frozen shut in cold weather — common through winter months; never force a frozen coupler. Warm it before connecting and check that your safety chains and gladhand seals are rated for cold-weather service.
- Slow overnight air loss — a pinhole leak in the hose itself rather than the coupler. Pressurize the system and run a soapy-water check along the hose length to find it.
Tools and resources
- Wheel chocks for semi trucks and big rigs to secure the trailer before hookup
- Attaching safety chains correctly as part of the same coupling sequence
- A driver's vehicle inspection report pad to document the pre-trip once air lines and brakes check out
- Gloves and a rag kept in the door pocket, not buried in a tool box, so cleaning the seal actually happens every time
“A rig that creeps forward with the brakes supposedly applied means a bad connection somewhere in the system, and you find that out in the yard or you find it out on the highway.”
What to do next
Once the air system is charged and verified, filling out a DVIR properly closes the loop on the pre-trip and protects you if a roadside inspection turns up an issue later. TruckNTow has outfitted trucking professionals with inspection gear and rigging equipment since 1959, and the coupling routine above hasn't changed much in that time because the physics haven't either.
FAQ
How do you connect gladhands on a semi trailer?
Chock the trailer, clean both coupler faces, connect the red emergency line first, then the blue service line, and tug-test each connection before charging the air system. Confirm the cab gauge reads 100-125 psi and the trailer brakes release cleanly before pulling out in 2026 or any other year.
Which gladhand connects first, service or emergency?
The emergency (red) line connects first, followed by the service (blue) line. This order keeps the trailer's spring brakes mechanically set until air pressure builds through the system.
Why won't my gladhands lock together?
A bent locking lug or a worn coupler face usually prevents a solid lock. Replace the gladhand assembly rather than forcing it with tools, since a forced connection often fails under road vibration.
How much air pressure should show before driving?
Cab gauges should read 100-125 psi before you release the trailer's parking brakes. Pressure below the cut-in threshold, typically 90-100 psi, means the spring brakes stay applied.
Can you drive with a leaking gladhand?
No — a leaking gladhand means the trailer's air system won't hold pressure, which can trigger a low-air warning or apply the emergency brakes mid-route. Fix the seal or swap the coupler before moving the rig.
How often should gladhand seals be replaced?
Inspect seals at every pre-trip and replace them at the first sign of cracking, glazing, or a hiss under pressure. Seals are a low-cost part compared to the roadside delay a failed one causes.
What's the difference between service and emergency gladhands?
The blue service line controls normal brake application through the trailer's relay valve, while the red emergency line supplies the air that keeps spring brakes released. Losing the emergency line applies the trailer brakes automatically as a safety fail-safe.
Why do gladhands freeze in winter?
Moisture in the air system condenses at the coupler seal and freezes in cold weather, especially overnight. Never force a frozen gladhand open; warm the coupler and check the air dryer on the tractor if freezing happens often.
One last thing
The tug test after connecting both gladhands takes about two seconds and catches the majority of bad hookups before they become a highway problem — drivers who skip it are almost always the ones calling dispatch about an air leak an hour into the run. Make it as automatic as checking your mirrors before you pull out in 2026.
