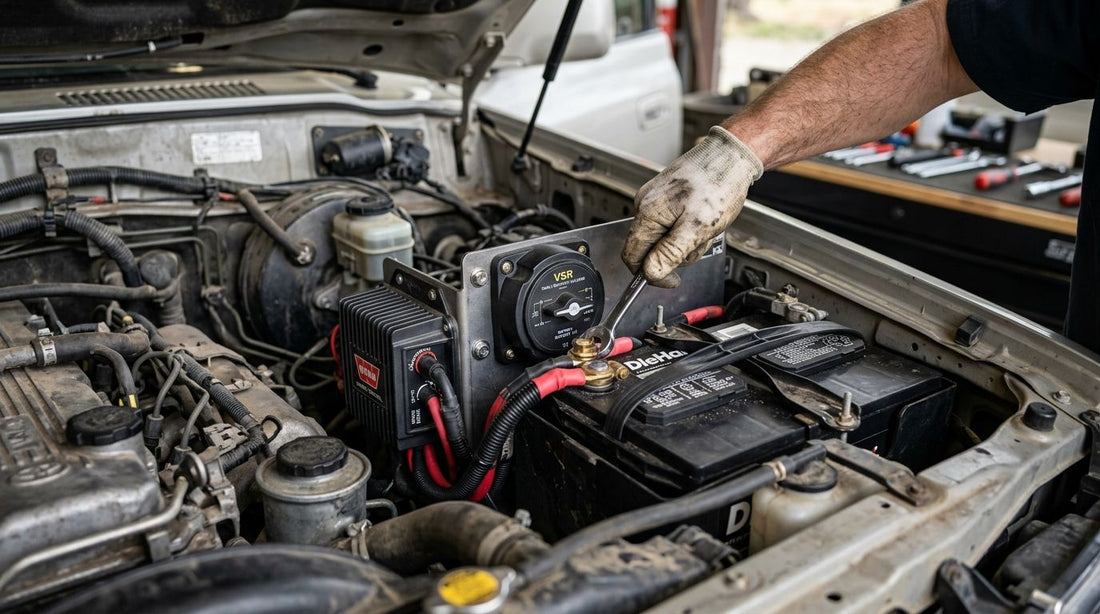

Imagine winching a stuck flatbed off a muddy shoulder in the dark and watching your starting battery drop to nothing halfway through the pull because the winch is pulling straight off the same circuit that cranks your engine. A dual-battery isolator exists to stop exactly that, but only if the winch control box is wired through it correctly instead of tapped straight to the starting battery out of convenience.
- Connect winch control box to dual battery isolator by feeding the winch's hot lead from the isolator's auxiliary output, never the starting battery post.
- Confirm the isolator's continuous amp rating covers the winch's stall draw before you run a single wire.
- Ground the control box directly to clean chassis metal, not to a bracket shared with other accessories.
- A VSR-style isolator recharges both batteries automatically when the engine runs; a manual switch isolator needs the driver to flip it first.
- Test the circuit at idle before a real pull to catch a bad ground or undersized cable in the driveway.
Why this matters
A winch motor under load pulls several times its rated amperage in short bursts, and if that draw comes off the starting battery, you can run the winch fine and then find the truck won't crank when the job is done. Running the control box wiring through a dual-battery isolator instead of the starting circuit keeps cranking power protected while the winch draws from the auxiliary battery. It's the same logic applied across truck electrical work in 2026 for anything that pulls heavy amperage on demand.
The isolator itself doesn't care what's plugged into it. What matters is getting polarity, ground, and amp rating right on the winch side, because a wiring mistake here doesn't fail quietly — it can cook a wire, weld a solenoid contact, or leave you stranded with a winch that clicks but won't pull.
Before you start
- Confirm the isolator is already installed and functioning between your starting and auxiliary batteries. This guide covers connecting the winch control box to an existing isolator, not installing the isolator itself.
- Match wire gauge to the winch's stall current, not its rated pulling current. A winch at full load draws well past its continuous rating for a few seconds, and undersized cable heats fast enough to melt insulation.
- The gotcha: every isolator is rated for a specific continuous amp load, and if your winch's stall draw exceeds that rating, the isolator will trip, chatter, or fail to pass enough current. Check the isolator's spec plate against the winch's amperage draw before you run one wire — finding this out mid-recovery is the worst possible time.
Set up the power feed from the auxiliary battery
- Disconnect both batteries at the negative terminal before touching any wiring. A hot short across battery terminals will arc and can cause burns or damage the isolator.
- Locate the auxiliary output terminal on the isolator. On most VSR (voltage-sensitive relay) and solenoid-style isolators this is marked separately from the starting battery terminal.
- Run heavy-gauge cable — 2-gauge or larger for most mid-size electric winches — from the isolator's auxiliary terminal to the winch's positive input stud or the solenoid pack's battery-in terminal.
- Fit the cable ends with the correct lug size for both the isolator terminal and the winch stud. A loose or oversized lug is a common source of voltage drop under load.
- Torque the connection to the isolator manufacturer's spec and check that each lug sits flush with no strands flared outside the crimp.
Expected result: with both batteries reconnected and the engine off, a multimeter should read full auxiliary battery voltage at the winch's positive input. If it doesn't, the fault sits between the isolator and the winch, not downstream.
Wire the control box ground and remote leads
- Ground the winch control box to bare, unpainted chassis metal as close to the winch mount as practical — not to a bolt that also grounds lights, a pump, or anything else.
- Scrape paint or coating off the grounding point down to bare metal before attaching the ground lug, then apply dielectric grease to slow corrosion.
- Connect the remote control plug — handheld or wireless receiver harness — into the control box's remote port, seating it fully until it clicks or locks.
- Route the remote harness away from the winch drum and cable path so it can't get pinched or snagged during a pull.
- Secure wiring runs with zip ties or clamps every 12 to 18 inches to keep cable from rubbing on frame edges over time.
Expected result: with the ignition on and the remote connected, tapping the in/out control engages the solenoid with an audible click and starts the drum turning in the correct direction. If it spins the wrong way, reverse the two field wires at the solenoid.
VSR isolator vs. manual switch isolator
Most setups use one of three isolator types, and the winch wiring changes slightly depending on which one is on the truck.
| Isolator type | How it behaves | Winch wiring note | Best for |
|---|---|---|---|
| VSR (voltage-sensitive relay) | Links batteries automatically when the engine is charging, isolates them when off | Winch draws from the aux side any time the engine runs; no manual step | Daily-use recovery trucks |
| Manual switch | Driver flips a physical switch to combine or isolate | Confirm switch position before winching or the aux battery may sit uncharged | Occasional-use rigs with a strict pre-pull routine |
| Diode-based | Passively splits charging current, no moving parts | Expect a small voltage drop across the diodes; verify voltage at the winch input under load | Simple setups with light winch duty |
A VSR isolator is the better fit for a winch circuit because it removes the driver's need to remember a manual step before a recovery. Buy VSR for trucks that winch weekly. Manual switch isolators are fine only where you already double-check everything before a pull. Diode isolators: hold off unless your winch duty is light and you've measured the drop.
Pros and cons of feeding a winch off the isolator
- Pro: starting battery stays at full charge through a long pull, so the truck cranks afterward every time.
- Pro: the auxiliary battery takes the abuse of deep discharge cycles instead of your starter battery.
- Con: you're adding a component that can itself become the failure point — an undersized isolator is worse than no isolator because it fails under load, not at rest.
- Con: more connections in the high-current path means more places for voltage drop and corrosion to develop over a few winters.
Troubleshooting
- No power at the winch at all: check the isolator's auxiliary terminal with a multimeter first. No voltage there with the engine running means the isolator isn't passing current, and the winch wiring is not your problem.
- Solenoid clicks but the drum won't turn: almost always a ground fault at the control box or a loose field wire at the motor, not an isolator issue.
- Isolator gets hot or trips mid-pull: the winch's stall draw exceeds the isolator's continuous rating. The fix is a higher-rated isolator, not heavier cable.
- Winch runs weak under load: voltage drop from undersized cable or a corroded battery terminal connection between the isolator and the winch. Check every crimp and lug along the run.
- Remote doesn't respond: reseat the remote plug fully and check the control box's low-voltage fuse before condemning the remote.
Customize your workflow
Once the control box is wired through the isolator correctly, the same approach extends to everything else on the truck that draws heavy amperage on demand — auxiliary lighting, onboard air, inverters. Keep a running tally of every load tied into the auxiliary side so you don't exceed the isolator's total rated capacity as you add gear through 2026, and re-check ground points annually, since corrosion at a chassis ground is the most common failure point on trucks that see winter road salt.
TrucknTow has supplied trucking professionals with recovery and towing gear from Detroit since 1959, and a wiring job that protects your starting battery during a recovery is the detail that separates a truck that finishes the job from one that needs a jump afterward.
FAQ
How do you connect a winch control box to a dual battery isolator?
Run the winch's positive lead from the isolator's auxiliary output terminal, not the starting battery post, and ground the control box directly to bare chassis metal near the winch mount. This keeps the winch's heavy draw off the circuit that cranks your engine.
Can a winch damage a dual battery isolator?
Yes. If the winch's stall current exceeds the isolator's continuous amp rating, the isolator can trip, overheat, or fail outright. Check the isolator's spec plate against the winch's draw before wiring it in.
Is a VSR isolator better than a manual switch isolator for a winch?
A VSR isolator is better for winch circuits because it links the batteries automatically whenever the engine is charging, removing the risk of forgetting a manual step before a pull. Manual switch isolators work but depend on the driver checking the switch position first.
Why does my winch run weak even with a dual battery isolator installed?
Weak winch performance under load usually points to voltage drop from undersized cable or a corroded terminal between the isolator and the winch, not the isolator itself. Check every crimp and lug along the high-current run.
What gauge wire should run between the isolator and the winch control box?
Size the cable to the winch's stall current rather than its rated pulling current, because a winch at full load draws well past its continuous rating in short bursts. 2-gauge or larger is standard for most mid-size electric winches.
Should the winch ground share a bolt with other accessories?
No. Ground the winch control box to its own clean, bare chassis metal point instead of sharing with lights or pumps, since a shared ground is a frequent cause of intermittent power loss under load.
Does the winch draw from both batteries at once with an isolator installed?
No. The isolator's job is keeping the two batteries separate under load, so the winch pulls from the auxiliary battery while the starting battery stays reserved for cranking the engine.
One last thing
The step most installers skip is re-torquing every lug connection about a week after the first few pulls. Heavy cable settles and crimped lugs loosen slightly under vibration, so a connection that measured fine on day one can develop real voltage drop by day thirty. Do it once and you won't chase a mystery weak-pull complaint months later in 2026.
