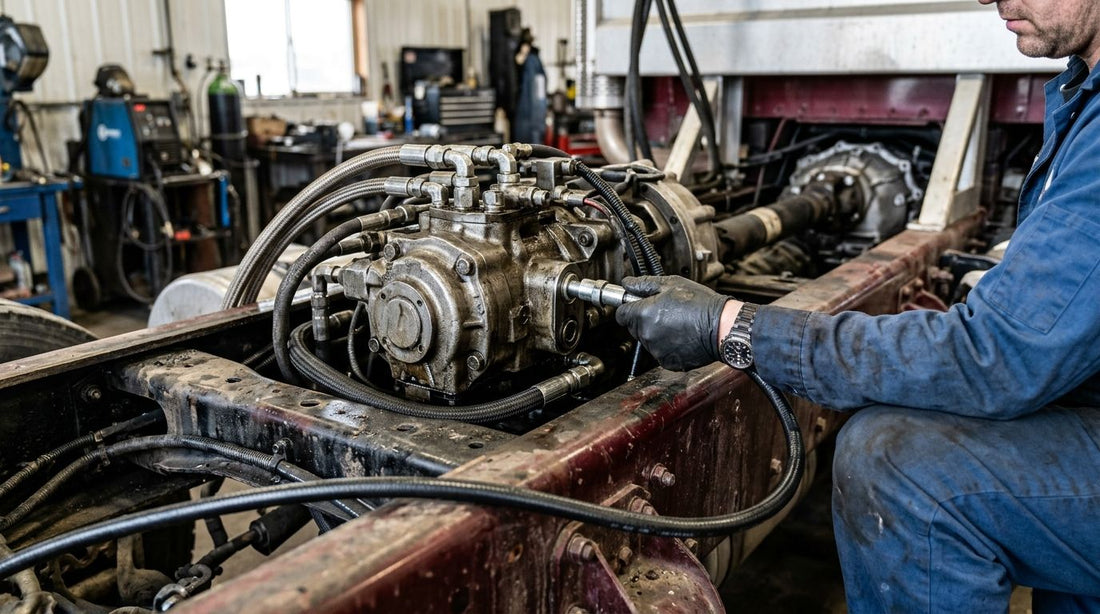

A wrecker's hydraulic pump won't engage until the PTO cable is seated, routed, and tensioned correctly — get any one of those wrong and the operator ends up rocking the shift lever on the shoulder instead of running the boom. This guide walks through connecting a PTO cable to a wrecker's hydraulic pump the first time, without the trial-and-error that burns an hour on a call that should take fifteen minutes.
- Connect a PTO cable to a wrecker's hydraulic pump by seating it at the pump control arm first, then routing and tensioning the run.
- Most cable-shift PTOs need 1 to 2 inches of free play at the control lever before the pump engages cleanly.
- A stretched or misrouted PTO cable is the most common reason a wrecker's hydraulic pump won't engage in 2026.
- Air-shift and electric-shift PTOs skip the cable step entirely — confirm your PTO type before starting.
- Test engagement at idle before loading the boom to catch a bad connection before it costs you a job.
Why This Matters
A hydraulic pump that won't engage on a recovery call isn't a paperwork problem — it's a truck sitting idle with a hooked-up vehicle and a driver who can't finish the job. TruckNTow has supplied trucking and towing professionals since 1959, and the PTO cable connection is one of the most common points of failure reported on wrecker bodies with high engagement cycles. A cable that's routed wrong or adjusted loose doesn't fail all at once; it fails intermittently, which is worse, because the operator loses trust in the system exactly when they need it most.
Getting the PTO cable connection right the first time means fewer roadside surprises and less wasted labor chasing an engagement problem that traces back to a half-inch of missing free play.
Before You Start
- Confirm your PTO type. Cable-shift PTOs are common on older and mid-range wrecker bodies, but many 2026-model trucks ship with air-shift or electric-shift PTOs that don't use a cable at all — check your chassis spec sheet before you order parts.
- Have the right tools staged. You'll need an adjustable wrench, needle-nose pliers, a clevis pin or cable clamp matching your pump bracket, and safety glasses. Working under the truck without eye protection near a spring-loaded clevis is a fast way to get hurt.
- The gotcha: installers routinely run the new cable through the exact path of the old one without checking it for kinks near the transmission bell housing. A kinked cable binds under load even when it looks fine sitting still — inspect the full length by hand before you clamp anything down.
Set Up the Cable at the Hydraulic Pump Control Arm
- Locate the control arm on the hydraulic pump housing — this is the lever the cable pulls to shift the pump into gear.
- Slide the cable's threaded barrel or clevis end onto the control arm's mounting stud and secure it with the clevis pin and cotter pin, or thread the barrel nut if your pump uses a threaded connection.
- Move the control arm through its full range of motion by hand before connecting the other end. It should travel smoothly with no binding or grinding.
Expected result: the control arm moves freely through its complete stroke with the cable attached, and the cable end sits square in the bracket with no side-load bending it.
Route and Secure the Cable Along the Chassis
- Run the cable along the existing conduit or bracket path from the pump to the cab-mounted or PTO-mounted shift point, avoiding sharp bends tighter than the cable's rated bend radius.
- Secure the cable at every factory clamp point along the frame rail — skipping clamps lets the cable vibrate against the chassis, which wears through the housing over time.
- Keep the cable clear of the exhaust, driveshaft, and any moving linkage. A cable that touches a hot exhaust component will glaze and stiffen within weeks.
Expected result: the cable runs in a smooth, unkinked path with no contact points against heat sources or moving parts, and every clamp is snug.
Adjust Cable Tension and Test Engagement
- At the shift end, thread the adjuster nut until the control arm sits fully disengaged with the shift lever in the off position.
- Shift the lever to engage and check for 1 to 2 inches of free play before the pump control arm starts to move — this is standard slack range for most cable-shift PTOs and prevents the cable from riding under constant tension.
- With the engine at idle, engage the PTO and listen for the pump to spin up cleanly. A hesitant or partial engagement means the cable is either too tight or hasn't seated fully in the control arm bracket.
- Cycle the PTO on and off five times to confirm consistent engagement before putting the truck back into service.
Expected result: the pump engages within a second or two of the shift lever moving, with no grinding, and disengages fully when the lever is released.
If Your Wrecker Uses an Air-Shift or Electric PTO Instead
Not every wrecker body runs a mechanical cable. Air-shift PTOs use a solenoid valve and air line to move the same control arm, and electric-shift PTOs use a solenoid actuator wired to a dash switch. If your truck falls into either category, the connection point on the hydraulic pump is the same control arm described above — you're just swapping the cable step for connecting an air line fitting or a solenoid wiring harness instead of a physical cable and adjuster nut. Confirming which system you have before you order parts saves a wasted trip to the parts counter.
Troubleshooting Common PTO Cable Problems
- Pump won't engage at all: check for a disconnected cable end at the control arm first — this is the single most common cause and takes thirty seconds to rule out.
- Engagement is delayed or sluggish: the cable likely has too much free play. Tighten the adjuster nut in quarter-turn increments and retest.
- Pump engages but won't disengage: the cable may be over-tightened, holding the control arm partially engaged even with the lever released. Back off the adjuster nut slightly.
- Cable feels stiff or gritty when pulled: the housing has likely corroded internally or picked up debris. A stiff cable should be replaced rather than lubricated as a permanent fix.
- Cable snapped at the connection point: this usually traces back to a bend radius that was too tight during routing, concentrating stress at one point until the strand failed.
Maintain Your PTO Cable and Hydraulic Pump Connection
Inspect the cable at the control arm and clamp points every service interval — look for fraying at the connection ends, corrosion inside the housing, and any clamp that's worked loose from vibration. A PTO cable under regular recovery-duty cycling wears faster than one on a truck that rarely engages the pump, so match your inspection frequency to how hard the wrecker actually works. Keep a spare cable and clevis pin in the truck's tool box if your fleet runs highway recovery routes far from a parts counter.
Shop the full line of trucking and towing accessories at TruckNTow, with free ground shipping on every order.
FAQ
How do you connect a PTO cable to a wrecker's hydraulic pump?
Attach the cable end to the pump's control arm using the clevis pin or barrel nut, route it along the chassis avoiding sharp bends, then adjust the tension at the shift end until you get 1 to 2 inches of free play before engagement.
How much free play should a PTO cable have?
Most cable-shift PTOs need 1 to 2 inches of free play at the control lever before the pump starts to engage. Less than that causes premature wear; more causes sluggish or incomplete engagement.
Why won't my wrecker's hydraulic pump engage?
The most common cause is a disconnected or unseated PTO cable at the pump's control arm. Check that connection first before assuming a pump or transmission fault.
Do all wrecker bodies use a cable-shift PTO?
No. Many 2026-model trucks use air-shift or electric-shift PTOs instead, which connect to the same control arm using an air line or solenoid actuator rather than a physical cable.
How often should a PTO cable be inspected?
Inspect it at every service interval, checking for fraying at the connection ends and corrosion inside the housing. Trucks with heavy recovery-duty cycling need more frequent checks than trucks that rarely engage the pump.
Can a PTO cable be repaired instead of replaced?
A cable with internal corrosion or a stiff, gritty pull should be replaced rather than lubricated as a workaround, since the underlying strand damage doesn't reverse.
What tools do you need to connect a PTO cable?
An adjustable wrench, needle-nose pliers, a clevis pin or cable clamp matching your pump bracket, and safety glasses cover most cable-shift PTO installations.
What happens if a PTO cable is routed too tight?
A bend radius tighter than the cable's rating concentrates stress at one point, which is the leading cause of a cable snapping at the connection end rather than wearing evenly along its length.
One Last Thing
The fastest diagnosis on a call is also the most overlooked: before assuming a pump or transmission fault, check whether the cable is actually seated in the control arm bracket. On wrecker bodies with high cycle counts, a loose or disconnected cable end accounts for more no-engagement calls than any hydraulic component failure — checking it first saves the tow more time than any other single step in this guide.
