Anchor points that fail under load don't just cost you a strap — they cost you the vehicle riding on your flatbed, the driver behind you, and possibly a DOT citation before you clear the scale house. Bolting tie-down D-rings onto a flatbed deck the right way turns a bare wood or steel bed into a rigging surface you can actually trust, and it's a job most shops can knock out in an afternoon with the right hardware and a little patience.
- Install tie down d rings with grade 8 hardware and a backing plate underneath the deck — anything less flexes under a 3,300-pound pull.
- A stake pocket D-ring assembly is the fastest bolt-on option for wood-deck flatbeds built in 2026 and earlier.
- Torque every bolt, then re-torque after the first loaded run — decking compresses and hardware backs off.
- Skip self-tapping screws entirely; they strip out of aluminum and pressure-treated wood within a few hard braking events.
Why the Anchor Points on Your Deck Actually Matter
A flatbed without properly rated tie-down points forces you to loop straps around the frame rail or a random cross-member, which almost never lines up with the load angle you need for a straight pull. TruckNTow has been supplying trucking professionals with rigging hardware out of Detroit since 1959, and the recurring failure pattern in the field is the same: operators install a D-ring with whatever bolt was in the truck box instead of matching hardware grade to the strap's safe working load. A stake pocket D-ring assembly rated to 3,300 pounds is only as strong as the bolt, washer, and backing plate holding it to the deck — the D-ring itself is rarely the weak point.
This matters more on 2026-model haulers running lighter aluminum decking, where manufacturers trim material to save weight and leave installers less margin for error on hole placement.
What You'll Need Before You Drill
- Stake pocket D-ring assembly (4-pack covers one side of a standard flatbed)
- Grade 8 bolts sized to the D-ring's mounting holes, plus matching nuts and flat washers
- Steel backing plates (3/16 inch minimum) if the deck is wood or thin aluminum
- Cordless drill with a bit matched to bolt diameter, plus a step bit for clean holes in metal decking
- Torque wrench rated for the bolt size you're using
- Center punch, tape measure, and a chalk line or marker
- Anti-seize compound for the threads if the truck runs coastal or winter road-salt routes
Installing the D-Rings, Step by Step
1. Map your anchor points before you touch the drill
Lay out where each D-ring needs to sit based on the load types you haul most — car haulers want anchor points every 40 to 48 inches along both rails, while equipment haulers often need points closer to the corners. Getting this layout wrong means drilling twice, and a second hole close to the first weakens the deck member you just reinforced.
Common mistake: installers eyeball spacing instead of measuring from a fixed reference, which leaves anchor points staggered from side to side and throws off strap angles on every load after.
2. Mark and drill pilot holes
Center-punch each mark, then drill a pilot hole slightly smaller than your bolt diameter before stepping up to full size — this keeps the bit from wandering on steel decking and prevents splitting on wood. Drill straight down; an angled hole lets the D-ring shift under lateral load, which is exactly the load direction it'll see when a strap pulls at 30 degrees.
Common mistake: rushing the pilot hole and drilling the final diameter in one pass, which chews the hole oversized and lets the bolt shift inside it over time.
3. Reinforce the deck from underneath with a backing plate
This is the step operators skip most, and it's the one that determines whether the anchor holds at 3,300 pounds or tears loose at half that. Slide a steel backing plate underneath the deck at each hole location so the bolt clamps deck material between two rigid surfaces instead of just biting into wood or thin aluminum. On steel-deck flatbeds with structural cross-members already underneath, you can skip the plate if the hole lands directly over a member — check with a magnet or from below before assuming.

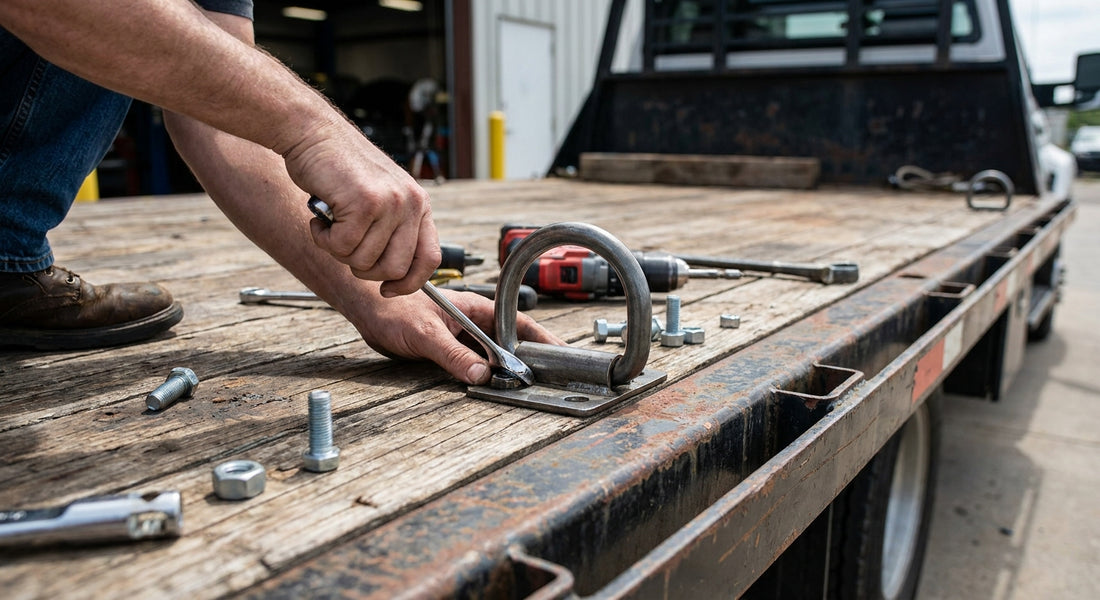

4. Bolt the D-ring with grade 8 hardware and torque to spec
Run the grade 8 bolt through the D-ring assembly, through the deck, through the backing plate, then thread the nut and flat washer on the underside. Torque to the hardware manufacturer's spec for that bolt size — under-torquing leaves play in the joint, over-torquing on wood decking can crush the fibers and loosen the joint within weeks. If you can wiggle the D-ring by hand after tightening, the backing plate isn't doing its job or the bolt is undersized.
“If you can wiggle the D-ring by hand after tightening, the backing plate isn't doing its job or the bolt is undersized.”
5. Test each anchor point under a real load
Rig a strap or chain to each new D-ring and pull it to a moderate tension with a folding handle load binder before you load anything valuable on the deck. Watch the mounting hardware, not just the D-ring — any movement at the bolt head or backing plate means the joint needs to come apart and get redone before it goes into service.
Common mistake: testing with a light strap tension instead of something closer to actual road load, which lets a marginal install pass a test it'll fail three loads later on the highway.
6. Re-check torque after the first loaded run
Decking compresses under repeated loading in the first few runs, and bolts that were torqued correctly on installation day often read 10 to 15 percent looser after the first haul. Re-torque every D-ring bolt within the first week of use, then fold that check into your regular pre-trip or monthly maintenance rotation.
Troubleshooting Common Installation Problems
- D-ring spins freely after installation — the mounting hole is oversized for the bolt. Pull the bolt, add a properly sized washer stack, or drill and re-tap with the correct diameter.
- Bolt head strips before reaching torque spec — you're using a grade lower than 8 or a worn socket. Swap to a fresh grade 8 bolt and confirm your torque wrench is calibrated.
- Backing plate cracks or bends under load — the plate is too thin for the deck material. Step up to 1/4-inch steel on decks that see repeated heavy equipment loads.
- D-ring shows surface rust within a season — untreated hardware in a coastal or winter-salt route. Coat threads with anti-seize compound and consider a plated or stainless D-ring assembly.
- Wood deck splits around the hole — pilot hole was skipped or drilled too small before the final pass. Fill and re-drill at least 2 inches from the original location.
Tools, Hardware, and Reference Guides
Keep the drill, torque wrench, and spare grade 8 hardware in one dedicated box on the truck so a loose or corroded D-ring never sits unfixed because the tools were somewhere else. An aluminum tool box mounted to the deck rail keeps backing plates, bolts, and the torque wrench dry and within reach for re-torque checks between runs.
Before any high-value load goes out, run the same eye down your chain and binder hardware that you'd run on the D-rings themselves — the guide on inspecting car hauler chains before a run covers the wear points that fail alongside weak anchor points, not instead of them.
What to Do Next
Once the D-rings are torqued and load-tested, the next failure point is usually strap technique, not hardware. Review proper ratchet strap tensioning and hook angle before the deck goes back into rotation.
FAQ
How do I install tie down d rings on a wood flatbed deck?
Drill through the deck at your marked anchor points, add a steel backing plate underneath, and bolt the D-ring assembly through both layers with grade 8 hardware torqued to spec. Skipping the backing plate is the most common reason D-rings pull loose on wood decks.
What size bolts do tie down D-rings need?
Match the bolt diameter to the D-ring assembly's mounting holes exactly, and use grade 8 hardware regardless of size. Undersized or lower-grade bolts are the leading cause of anchor point failure under load.
Can I use self-tapping screws instead of bolts for D-rings?
No — self-tapping screws strip out of wood and aluminum decking within a handful of hard-braking events. Bolted-through hardware with a backing plate is the only setup rated for repeated tie-down use in 2026 or any other year.
How much weight can a stake pocket D-ring hold?
A stake pocket D-ring assembly like the VULCAN 4-pack is rated to 3,300 pounds safe working load per ring when installed with matched hardware. That rating drops sharply if the mounting bolt or backing plate is undersized.
Do I need a backing plate for a steel-deck flatbed?
You can skip the backing plate only when the mounting hole lands directly over a structural cross-member underneath the deck. Check from below or with a magnet before drilling — otherwise, install a plate.
How often should I re-torque D-ring bolts after installation?
Re-torque within the first week of use since decking compresses under initial loads, then fold the check into a monthly maintenance rotation. Bolts commonly read 10 to 15 percent looser after the first haul.
What's the difference between a D-ring assembly and an E-track D-ring fitting?
A stake pocket D-ring assembly bolts directly into a flatbed's existing stake pockets, while an E-track D-ring fitting snaps into installed E-track rail for adjustable anchor positioning. Flatbeds without E-track need the bolt-on assembly.
Why did my D-ring loosen after only a few loads?
Loosening after a few loads almost always traces back to an undersized bolt, a missing backing plate, or a hole drilled oversized. Pull the hardware, inspect the hole, and reinstall with properly sized grade 8 bolts and a plate.
One Last Thing
Most D-ring failures TruckNTow hears about from shops don't happen on the install day — they show up two or three months later when nobody re-torqued the hardware after that first compression cycle. Build the re-torque check into whatever pre-trip or weekly maintenance sheet your crew already fills out, because a D-ring that was perfect on day one and never checked again is the same risk as one installed with the wrong bolt.
Get the hardware right the first time and tie-down D-rings on a flatbed deck outlast the truck they're bolted to — TruckNTow ships the stake pocket assemblies, chain kits, and load binders needed for the job with free ground shipping on every order. Shop the full line here and rig with confidence on the next run.
