A wheel-lift tow truck handles 6,000 pounds on average in 2026, with light-duty rigs topping out around 3,500 to 6,000 pounds and medium-duty units reaching 6,000 to 10,000 pounds. The chassis rating gets all the attention, but the axle straps and ratchets holding the vehicle to the lift arm carry their own safe working load — usually 3,300 pounds per strap on a standard kit — and that number, not the lift arm, is often what actually caps a haul.
- Light-duty wheel-lift tow trucks handle 3,500 to 6,000 pounds; medium-duty rigs reach 6,000 to 10,000 pounds in 2026.
- Axle strap safe working load, typically 3,300 pounds per strap, caps capacity before the lift arm's own rating does.
- Chassis GVWR, hydraulic pump rating, and DOT axle limits all set the real ceiling on how much weight a wheel lift tow truck can handle.
- VULCAN PROSeries axle strap kits and folding handle ratchet binders let operators match tie-down capacity to their truck's rated class.
Why this matters
Overloading a wheel-lift arm doesn't announce itself with a warning light — it shows up as a bent crossbar, a stripped hydraulic cylinder, or a strap that lets go on the highway with a customer's car swinging behind you. Every wheel-lift rig on the road in 2026 has a stamped rating on the lift arm and a matching tie-down system underneath it, and the two have to agree with each other.
A truck rated for 6,000 pounds at the lift arm does nothing for you if the PROSeries axle strap tie-down kit running to that vehicle is only rated to 3,300 pounds. TruckNTow has been outfitting trucking professionals with tie-down gear since 1959, and the math hasn't changed: the lowest-rated component in the chain sets the real limit, not the biggest number stamped on the truck.

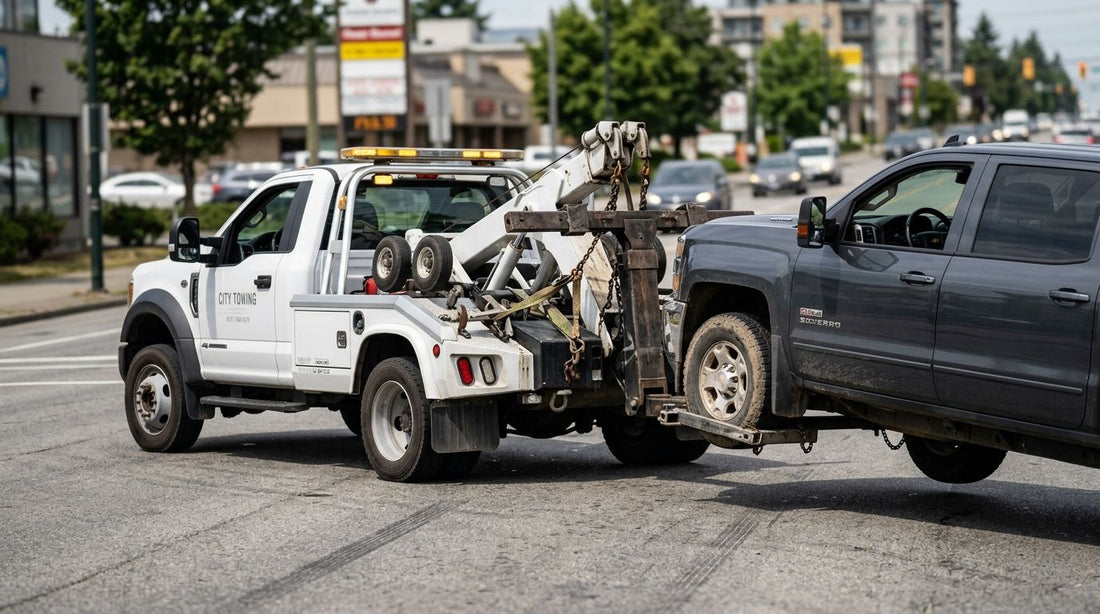

How much weight can a wheel lift tow truck handle?
Wheel-lift capacity breaks down by chassis class. The table below reflects the ranges most commercial wheel-lift units fall into as of 2026.
| Class | Lift capacity | Typical vehicles |
|---|---|---|
| Light-duty | 3,500 – 6,000 lbs | Sedans, compact SUVs, half-ton pickups |
| Medium-duty | 6,000 – 10,000 lbs | Full-size trucks, vans, small box trucks |
| Heavy-duty (wheel-lift equipped) | 10,000 – 16,000 lbs | Medium-duty trucks, small buses, usually paired with a boom or underlift |
Light-duty wheel-lift trucks handle the majority of passenger-car calls; medium and heavy-duty rigs exist specifically for the jobs where a sedan-class lift would fail.
Light-duty wheel lift: 3,500 to 6,000 pounds
Light-duty wheel-lift units mount on chassis like the Ford F-450/F-550 class and handle the bulk of daily repossession and roadside calls. A 3,500 to 6,000 pound rating covers most sedans, crossovers, and half-ton pickups without pushing the lift arm near its limit.
The bottleneck on light-duty jobs is almost never the truck — it's the strap. Standard axle strap tie-down kits run a 3,300 pound safe working load per strap, which is plenty for a sedan but leaves little margin on a loaded half-ton with cargo still in the bed. Verdict: fine for daily passenger-vehicle work, tight on anything approaching its own rated weight.
Medium-duty wheel lift: 6,000 to 10,000 pounds
Medium-duty wheel-lift trucks, typically built on Ford F-650 or Freightliner M2 chassis, step up to 6,000 to 10,000 pounds of lift capacity. That range covers full-size pickups, cargo vans, and small box trucks that would overload a light-duty arm.
Tie-down gear needs to scale with the truck here. A folding handle ratchet binder rated to a higher safe working load gives more margin than the same 3,300-pound strap used on a sedan call. Verdict: the right class for fleet trucks and full-size pickups, wrong for anything approaching 12,000 pounds.
Heavy-duty wheel lift: 10,000 pounds and up
Above 10,000 pounds, wheel-lift attachments almost always work alongside a boom and underlift rather than carrying the full load alone — a pure wheel lift concentrates weight at two contact points, and past a certain threshold that stresses both the arm and the vehicle being towed. Recovery operators running this class typically carry a folding handle ratchet binder rated to 12,000 pounds SWL for the chain-and-binder side of the job, separate from the wheel-lift straps. Verdict: capable rigs for medium trucks and buses, but the wheel lift is rarely doing the job by itself at this weight.
Why wheel-lift capacity varies
- Chassis GVWR — the truck's own gross vehicle weight rating limits what any lift arm bolted to it can safely carry.
- Lift arm and crossbar rated capacity — stamped by the manufacturer and non-negotiable regardless of what the chassis could theoretically handle.
- Hydraulic cylinder and pump rating — an underpowered pump can stall or drift under a load the arm is otherwise rated for.
- Tie-down and strap safe working load — axle straps and ratchets have their own SWL, often 3,300 pounds, that caps effective capacity below the arm's rating.
- Distance and duration of the tow — a long highway pull puts sustained stress on straps that a short in-lot move never sees.
- State DOT axle weight limits — legal road limits can restrict what you can move even when the equipment technically allows more.
Related questions operators ask
How much can a light-duty tow truck tow?
A light-duty tow truck tows 3,500 to 6,000 pounds on most wheel-lift setups, which covers the majority of sedans, crossovers, and half-ton pickups. Anything heavier needs to move up to a medium-duty rig rated for 6,000 to 10,000 pounds instead of pushing a light-duty arm past its stamped limit.
Is a wheel lift or a flatbed better for heavier vehicles?
Flatbeds generally handle heavier vehicles better because the deck distributes weight across the full frame instead of concentrating it at two wheel-lift contact points. A wheel lift still wins on speed and access for standard passenger vehicles, but once a load approaches the upper end of a medium-duty rating, a flatbed spreads the risk more evenly.
Do axle straps limit how much a wheel lift tow truck can handle?
Yes, axle straps limit wheel-lift capacity in practice because a standard strap kit carries a 3,300 pound safe working load per strap regardless of what the lift arm itself is rated for. Pairing a 6,000-pound-rated lift arm with 3,300-pound straps means the straps, not the truck, set the real ceiling on that job.
FAQ
What's the average weight capacity of a wheel lift tow truck in 2026?
A wheel lift tow truck handles about 6,000 pounds on average in 2026, ranging from 3,500 pounds on light-duty units to 10,000 pounds or more on medium-duty rigs. The chassis class determines where in that range a specific truck falls.
How much weight can a light-duty wheel lift tow truck lift?
A light-duty wheel lift tow truck lifts 3,500 to 6,000 pounds, which covers most sedans, crossovers, and half-ton pickups. This class is built on chassis like the Ford F-450/F-550 and handles the majority of daily roadside and repossession calls.
Is a wheel lift or flatbed tow truck better for heavy vehicles?
A flatbed tow truck generally handles heavier vehicles better because the load is spread across the full deck instead of concentrated at the wheel-lift arm's two contact points. Wheel lifts remain faster for standard passenger-vehicle calls.
What safe working load do axle straps need for wheel-lift towing?
Standard axle strap kits carry a 3,300 pound safe working load per strap, which is the practical limit on most light-duty wheel-lift jobs. That rating, not the lift arm's stamped capacity, is usually what caps the tow.
Can a medium-duty wheel lift tow truck handle a full-size pickup?
Yes, medium-duty wheel-lift trucks rated 6,000 to 10,000 pounds handle most full-size pickups without exceeding the lift arm's rating. Straps and binders still need to be rated to match that higher class.
How do I know my tow truck's wheel-lift rating?
Check the manufacturer's data plate mounted on the lift arm or crossbar, which lists the stamped capacity for that specific unit. Never assume capacity based on chassis size alone since the lift arm rating can be lower than the truck's GVWR.
Does towing distance affect how much weight a wheel lift can handle safely?
Yes, longer highway tows put sustained stress on tie-down straps that short in-lot moves never experience, which is why many operators upgrade to higher-rated PROSeries gear for regular long-distance work. The lift arm rating stays fixed, but the safety margin on the straps shrinks over distance.
One last thing
Most operators pair a 3,300-pound axle strap with a lift arm rated for 6,000 pounds and never touch the top end of their own tie-down gear. The 12,000-pound folding handle ratchet binders in most catalogs are built for chain-and-binder flatbed and heavy-haul work, not wheel-lift straps — buying that capacity for a light-duty sedan call is capacity you'll never use. Match the gear to the class of truck you're actually running in 2026, not the biggest number on the shelf.
