Imagine a rig idling at a drop yard while air pressure crawls back into the trailer's tanks because the coupler on the tractor is choking flow at the exact moment a driver needs the brakes released — that bottleneck is what separates a fast hookup from a stalled one in 2026.
- Standard brass gladhand fittings hold the top gladhand fittings air flow rating for daily tractor-trailer coupling in 2026 — buy these first.
- Automatic locking gladhands trade a fraction of flow for anti-theft security at unattended drop yards.
- Insulated gladhands stop seal stiffening and ice buildup on northern winter routes.
- Aluminum gladhands cut coupling weight but wear faster under high-cycle drop-and-hook use.
- Flanged gladhands solve custom air line routing on wrecker and rollback builds.
Why this matters
Air brake systems on a tractor-trailer combo run on system pressure that typically sits in the 100 to 125 psi range, and every ounce of that pressure has to travel through the gladhand fittings for semi-trailer air lines coupling the tractor's service and emergency lines to the trailer. A restricted bore, a swollen seal, or a frozen coupler slows how fast air moves into the trailer's reservoir tanks, and that delay shows up as sluggish brake release during a hookup or, worse, a slower brake application at speed.
Gladhand design hasn't changed much in decades, but the material and locking choices fleets make in 2026 still separate a coupling that flows clean air from one that fights back every time a driver connects it. This ranking breaks down which gladhand fitting wins on air flow and which one earns its place for a different job entirely.
Best overall: standard brass SAE J318 gladhand. Best for cold-weather routes: insulated/heated gladhand. Best budget option: aluminum non-locking gladhand. Best for high-security yards: automatic locking gladhand. Best for custom wrecker builds: flanged bolt-mount gladhand.
What makes the best gladhand fitting for air flow
- Bore diameter matched to hose ID — a coupler with a narrower internal passage than the air hose it's paired with becomes the restriction point in the whole system.
- Thread and shank type — a proper 1-1/4 inch NPT threaded shank seats the coupler flush so nothing chokes flow at the joint.
- Seal material and thickness — the rubber grommet that mates two gladhands together is the single most common flow-robbing wear point.
- Locking mechanism (or lack of one) — adds security, not flow; it should never narrow the bore to do its job.
- Base material — brass, aluminum, and steel all meet the same SAE J318 bore spec, so material affects durability and weight, not raw air flow.
- Cold-weather sealing design — a seal compound rated for sub-zero temps keeps the bore fully open instead of stiffening and cracking.

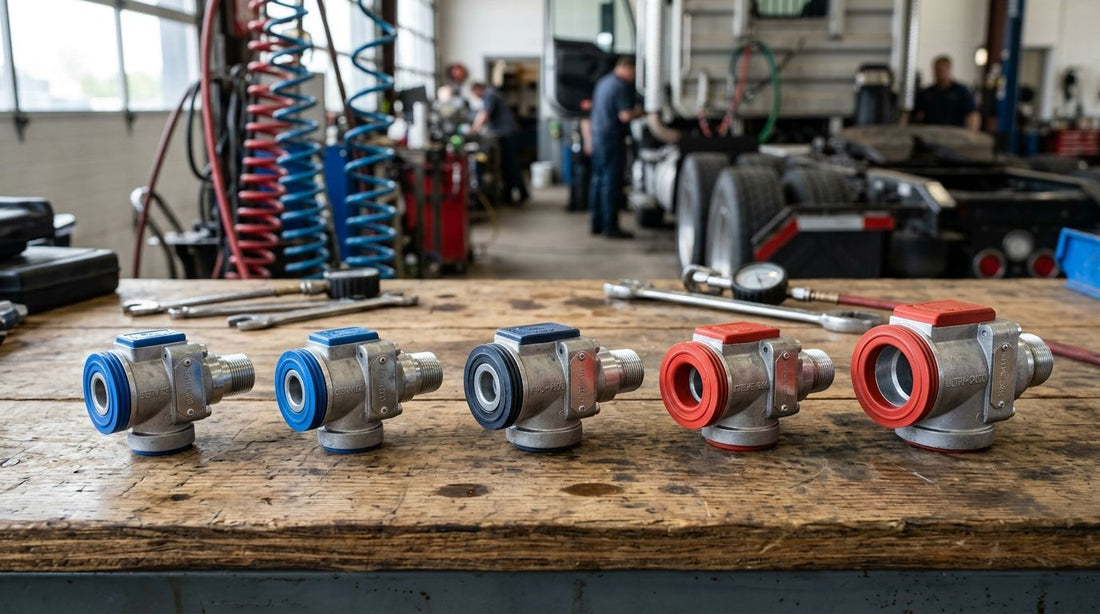

Gladhand fittings at a glance
| Fitting type | Best for | Standout feature | Key limitation |
|---|---|---|---|
| Standard brass gladhand | Daily line-haul coupling | Full-bore SAE J318 spec, no moving parts | No lock, no cold-weather sealing |
| Automatic locking gladhand | High-security drop yards | Cam-lock lever prevents accidental disconnect | Lever adds a failure point in ice and mud |
| Insulated/heated gladhand | Northern winter routes | Keeps seal pliable below freezing | Added bulk and a maintenance item |
| Aluminum non-locking gladhand | Weight-sensitive builds | Lighter than brass at the same bore | Seal seats wear faster under heavy cycling |
| Flanged bolt-mount gladhand | Custom wrecker/rollback rigging | Mounts to a bracket instead of a threaded stub | Needs fabrication, longer parts lead time |
1. Standard brass gladhand: best gladhand fitting for daily coupling
A standard brass gladhand threads onto a 1-1/4 inch NPT stub and mates with a matching coupler through a rubber seal, moving service and emergency air with no valve, lever, or heating element in the way. It's the baseline every other design on this list gets measured against because the SAE J318 spec keeps the bore fully open by default.
Standard brass gladhand pros:
- Unrestricted bore keeps air flow at spec with nothing to wear out mechanically
- Cross-compatible with brass or aluminum mating couplers on any trailer
- Better corrosion resistance than bare steel in road-salt conditions
- Widely stocked, so a roadside swap doesn't strand a driver waiting on a special-order part
Standard brass gladhand cons:
- Heavier per unit than aluminum, which matters on weight-sensitive builds
- No locking feature, so nothing stops an accidental disconnect at a fuel stop
- No insulation, so seals stiffen in extreme cold without a heated wrap added separately
Standard brass gladhand pricing: varies by supplier — check current options on the collection page above.
Best for: line-haul fleets running daily drop-and-hook or dedicated lane work. Verdict: Buy.
2. Automatic locking gladhand: best for high-security drop yards
An automatic locking gladhand keeps the same bore diameter as a standard unit but adds a cam-lock lever that has to be manually released before the coupling separates. Fleets running unattended yards or overnight drops use these to stop tampering and theft of trailers left hooked up.
Automatic locking gladhand pros:
- Prevents accidental or malicious disconnection while a trailer sits unattended
- Mates with standard gladhands, so no fleet-wide retrofit is required
- Keeps a bobtail's own line sealed shut when parked
Automatic locking gladhand cons:
- The lever is one more moving part that can seize or freeze in ice and road grime
- Costs more to source than a plain brass fitting
- Unnecessary complexity for an owner-operator whose truck never leaves sight
Best for: fleets with unattended drop yards or high trailer turnover. Verdict: Buy for drop-and-hook operations, Skip for single-truck owner-operators.
3. Insulated/heated gladhand: best for cold-weather routes
An insulated or heated gladhand wraps or actively warms the coupler body so the rubber seal stays pliable well below freezing, which keeps the full bore open instead of narrowing as the rubber stiffens and cracks. Northern and mountain-route carriers add these specifically to cut winter air-line freeze-ups that stall a pre-trip.
Insulated/heated gladhand pros:
- Stops ice buildup at the seal from choking air flow in sub-zero temps
- Reduces winter freeze-up complaints that eat into pre-trip inspection time
- Keeps brake response consistent instead of degrading as temperatures drop
Insulated/heated gladhand cons:
- Adds bulk right at the coupling point, which can complicate tight engine bay routing
- A heat source or wrap is one more component to inspect and maintain
- Unnecessary expense for fleets running exclusively in warm-weather regions
Best for: carriers running Upper Midwest, Northeast, or mountain routes through winter. Verdict: Buy for cold-climate fleets, Skip for southern-only operations.
4. Aluminum non-locking gladhand: best budget option
An aluminum gladhand meets the same SAE J318 bore spec as brass but is machined from lighter material, shaving ounces off the coupling point without changing the air flow rating on paper. It's a common spec on lighter trailers and cost-conscious fleet builds.
Aluminum gladhand pros:
- Lighter than brass at an identical bore diameter
- Lower material cost than brass or steel equivalents
- Meets the same flow spec, so there's no functional air delivery penalty when new
Aluminum gladhand cons:
- Seal seats wear faster than brass under high-cycle drop-and-hook use
- More prone to thread galling during repeated coupling and uncoupling
- Shorter service life in heavy road-salt or coastal corrosion environments
Best for: weight-sensitive trailer builds and fleets replacing worn fittings on a budget. Verdict: Buy for lighter-duty use, Hold for high-cycle fleets that value longevity over ounces.
5. Flanged bolt-mount gladhand: best for custom wrecker and rollback builds
A flanged gladhand bolts to a bracket instead of threading directly into a stub, which gives fabricators room to route air lines around winches, push bumpers, or custom rigging on a wrecker or rollback build. The bore spec matches the other designs on this list, so flow isn't the tradeoff — mounting flexibility is the point.
Flanged gladhand pros:
- Mounts to non-standard chassis points without forcing a redesign of the air line run
- Easier to service without disturbing the threaded stub underneath
- Keeps the full-bore flow spec of a standard gladhand
Flanged gladhand cons:
- Requires a bracket or light fabrication to mount correctly
- Less common at parts counters, so a roadside replacement can mean a longer wait
- A poorly bolted flange introduces a new joint where a leak can start
Best for: wrecker and rollback builders routing air lines around custom equipment. Verdict: Buy for custom builds, Skip for stock tractor-trailer setups.
How this list was ranked
Each gladhand fitting above is scored against the criteria that actually change air flow — bore diameter, thread and shank fit, seal condition, and cold-weather sealing — while locking mechanisms and mounting style are scored separately as job-specific features rather than flow penalties. A locking or insulated design only drops in the ranking if it narrows the bore or adds a failure point that a standard brass fitting doesn't have.
Which gladhand fitting should you choose?
For most trucking and towing operations running daily coupling cycles in 2026, the standard brass gladhand stays the default pick — it hits the full SAE J318 bore spec with the fewest points of failure. Move to a locking gladhand only if trailers sit unattended at a yard, add insulated gladhands only for genuine winter-route exposure, and reach for aluminum or flanged designs when weight or custom mounting is the actual constraint driving the decision.
Air lines and their gladhand connections only move air as well as the hose feeding them, so a coiled air brake line in good condition matters just as much as the coupler itself.
FAQ
What's the best gladhand fitting for air flow in 2026?
The standard brass gladhand built to the SAE J318 spec holds the top air flow rating in 2026 because its full bore has no lever, valve, or heating element narrowing the passage.
Is a locking gladhand better than a standard gladhand?
A locking gladhand is better for security at unattended drop yards, but it doesn't improve air flow over a standard brass fitting and adds a lever that can seize in ice.
Does aluminum reduce air flow compared to brass gladhands?
No. Aluminum gladhands meet the same SAE J318 bore spec as brass, so flow is identical when the seal is new — the difference shows up later in wear rate, not flow.
What causes a gladhand to restrict air flow?
A worn or swollen rubber seal, an undersized aftermarket bore, or ice buildup in cold weather are the three most common causes of restricted flow through a gladhand coupling.
Can you mix brass and aluminum gladhands on the same coupling?
Yes. Both materials are built to the same SAE J318 spec, so a brass gladhand on the tractor mates cleanly with an aluminum gladhand on the trailer.
Do heated gladhands actually improve brake response in winter?
Yes. Keeping the rubber seal pliable below freezing stops the bore from narrowing due to stiffened or cracked rubber, which keeps brake response consistent on cold routes.
How do you know a gladhand needs replacing?
Visible cracking in the seal, an audible air leak hiss at the coupling, or slower-than-normal brake release during a hookup all point to a gladhand that needs replacing.
One last thing
Most of the flow difference drivers notice between gladhand fittings in 2026 doesn't come from the fitting's material at all — brass, aluminum, and steel gladhands share the same SAE J318 bore spec — it comes from a worn rubber seal that nobody swapped out during a routine air line inspection. Check the seal before blaming the coupler. TruckNTow has been outfitting trucking professionals out of Detroit since 1959, and the fittings that hold up longest are the ones paired with air lines that get inspected on the same schedule.
