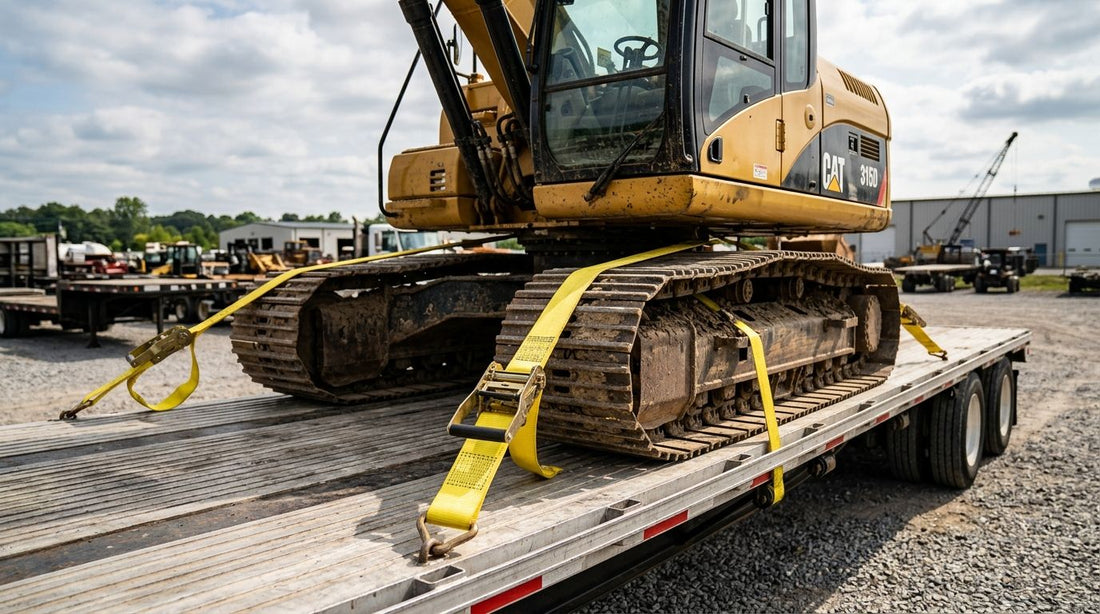

Picture a mini excavator riding your flatbed's deck, tracks bouncing over a pothole at highway speed — the tiedown system holding it there either meets the load or it fails, and there's no room for guessing on that call. Ratchet straps rated at 3,300 lbs safe working load secure light equipment like mowers, ATVs, and mini skid steers without trouble, but heavy equipment running past roughly 10,000 lbs needs chains and load binders rated 6,600 to 12,000 lbs SWL to satisfy the federal rule requiring tiedowns to carry at least half the cargo's weight. The hidden catch drivers miss: sharp frame edges, steel tracks, and hydraulic cylinders on heavy machinery can abrade or slice webbing that a chain shrugs off entirely, which is why most fleets keep straps for accessories and lighter loads while reserving chain-and-binder rigs for the iron itself.
- Ratchet straps can secure heavy equipment on a flatbed only when the machine's weight stays under roughly 10,000 lbs and mounting points allow a direct tie-down.
- Ratchet straps top out around 3,300 lbs safe working load per strap; chain and load binders run 6,600 to 12,000 lbs SWL.
- Federal cargo securement rules require the total working load limit of all tiedowns to equal at least half the cargo's weight.
- Tracks, sharp frame edges, and hydraulic lines on heavy equipment cut and abrade webbing faster than chain.
- Mixing systems is normal: chains anchor the frame, straps snug down loose attachments.
Why this matters
Misjudging strap capacity on a heavy load is how equipment ends up in a ditch or through a windshield, and it's the fastest way to fail a roadside DOT inspection in 2026. TruckNTow has stocked cargo control gear for trucking professionals out of Detroit since 1959, and the question of straps versus chain comes up on nearly every heavy-haul order.
The short version: strap capacity is fixed by webbing width and stitch pattern, and once you're past 3,300 lbs SWL per strap, adding more straps to compensate creates a false sense of security if the equipment has sharp edges or exposed hydraulics that can cut through nylon. Load binders rated up to 12,000 lbs exist for exactly that reason — they pair with grade 70 or grade 80 chain to hit working load limits straps can't reach safely.
Can ratchet straps secure heavy equipment on a flatbed?
Yes, but only within the equipment's weight class and only when the aggregate working load limit of the tiedowns clears 50% of the cargo weight. Here's how the two systems stack up for a flatbed hauling equipment in 2026:
| System | Typical SWL | Best for | Verdict |
|---|---|---|---|
| Ratchet strap (2-inch webbing) | 3,300 lbs per strap | Mowers, ATVs, mini skid steers, generators | Buy for light equipment |
| Chain + folding handle binder | 6,600-7,100 lbs per assembly | Skid steers, tractors, compact wheel loaders | Buy for mid-weight machines |
| Heavy chain + 12,000-lb binder | 12,000 lbs per assembly | Excavators, backhoes, full-size dozers | Buy for heavy iron |
The math drivers actually run: a 10,000-lb skid steer needs at least 5,000 lbs of combined tiedown WLL. Four ratchet straps at 3,300 lbs each technically clear that on paper, but federal cargo securement rules for articles of transport also require direct tiedowns to structural points on the equipment, not just wraparound lashing — and that's where straps start losing ground to chain.
Ratchet straps: 3,300 lbs safe working load
Straps in this class handle mowers, ATVs, generators, and mini skid steers without issue, and they're faster to rig than chain because there's no binder to crank down. The VULCAN PROSeries lineup covers this weight class with wide webbing built for repeated flatbed use, and TruckNTow moves plenty of these kits to landscaping and rental-yard customers hauling equipment under the 10,000-lb mark. Verdict: buy ratchet straps for anything under roughly 10,000 lbs with smooth, rounded mounting points.
Chain and load binders: 6,600 to 12,000 lbs safe working load
Once equipment crosses into skid steer, tractor, or excavator territory, chain and binder rigs take over. A 7,100-pound load binder paired with 5/16-inch or 3/8-inch grade 70 chain handles most compact construction equipment, while a 12,000-lb assembly is standard for full-size excavators and dozers. Grade 70 and grade 80 chain resist cuts from tracks and sharp undercarriage components in a way webbing simply can't. Verdict: buy chain and binders for anything over 10,000 lbs or with exposed sharp edges, regardless of what the straps are rated for.
Why the choice varies
A handful of factors decide whether a load needs straps, chain, or both, and skipping this check is how loads shift mid-haul:
- Equipment weight and GVWR — the heavier the machine, the higher the required aggregate WLL, and straps run out of headroom fast.
- Sharp edges and tracks — steel tracks, bucket teeth, and exposed cylinders cut webbing that chain ignores.
- Available mounting points — equipment with factory tie-down rings supports direct chain attachment; equipment without them may only accept wraparound straps.
- Haul distance and road conditions — long highway runs and rough pavement increase cyclical load on tiedowns, favoring chain's fatigue resistance.
- DOT inspection exposure — a mismatched strap-only rig on heavy equipment is one of the first things an inspector checks at a scale house.
- Mixed-load practicality — some rigs need chain on the frame and straps on loose attachments like buckets or blades, which is standard practice, not a shortcut.
For a walkthrough on rigging the heavier end of this spectrum, see how to properly chain down an excavator for transport.
Related questions
How many tie-downs does heavy equipment need on a flatbed?
Four tiedowns is the practical floor for any single piece of heavy equipment on a flatbed, and federal cargo securement rules add more once the combined working load limit of those four falls short of half the cargo's weight. A 15,000-lb excavator, for example, needs at least 7,500 lbs of aggregate WLL across its tiedowns, which usually means four chain-and-binder assemblies rather than four straps.
Are chains required for equipment over 10,000 pounds?
There's no flat legal cutoff at 10,000 lbs written into cargo securement rules, but the 50% aggregate working load rule effectively forces the switch there — four 3,300-lb straps top out around 13,200 lbs of combined WLL, which gets thin fast once you factor in webbing wear, sharp-edge exposure, and mounting-point limitations on heavier machines. Most carriers treat 10,000 lbs as the practical line where chain and binders take over in 2026.
Can ratchet straps and chains be combined on the same load?
Yes, mixing chain and ratchet straps on the same load is standard rigging practice, not a compromise. Chain typically anchors the equipment's frame or axle to structural tie-down points while straps snug down loose attachments like buckets, blades, or forks, and the combined system's working load limit still has to clear 50% of total cargo weight.
FAQ
Can ratchet straps secure heavy equipment on a flatbed?
Ratchet straps rated 3,300 lbs safe working load secure light equipment like mowers and mini skid steers, but heavy equipment over roughly 10,000 lbs generally needs chains and load binders rated 6,600 to 12,000 lbs SWL to clear the federal 50% aggregate working load rule.
What is the safe working load of a standard flatbed ratchet strap?
3,300 lbs SWL is standard for a 2-inch ratchet strap used in flatbed and car-hauler kits. Capacity varies with webbing width and stitch pattern, so check the tag on every strap.
What SWL do heavy equipment load binders need?
6,600 to 12,000 lbs SWL covers most heavy equipment, with 6,600-7,100 lbs handling skid steers and compact tractors and 12,000 lbs reserved for full-size excavators and dozers.
Do webbing tie-downs wear out faster than chain on heavy equipment loads?
Yes, webbing abrades and cuts against sharp frame edges, tracks, and exposed hydraulic lines far faster than chain. That is the main reason heavy equipment shifts to chain and binders once weight climbs past the light-equipment range.
Is a 4-point tie-down enough for heavy equipment?
Four tiedowns is the minimum under federal cargo securement rules, but the aggregate working load limit of those four still has to equal at least half the equipment's weight. Heavier machines therefore need chain-rated assemblies rather than four straps.
Can you use ratchet straps on a skid steer?
Ratchet straps rated 3,300 lbs SWL work on lighter mini skid steers, but full-size skid steers running 8,000 to 10,000 lbs typically need chain and load binders rated 6,600 to 7,100 lbs SWL for a compliant direct tiedown.
What chain grade works with heavy-duty load binders?
Grade 70 and grade 80 chain in 5/16-inch or 3/8-inch sizes pair with most folding handle load binders rated 6,600 to 12,000 lbs SWL. Match the chain grade and diameter to the binder's rated capacity.
One last thing
A 10-foot heavy-duty round sling rated 13,200 lbs vertical safe working load carries more capacity than four 3,300-lb ratchet straps combined, which is why crews doing rigging work alongside flatbed hauling keep both strap and sling gear on the truck instead of forcing one system onto every job. Run the tiedown math before the load leaves the yard in 2026, not after it shifts on the interstate — shop the full line at TruckNTow, where ground shipping is free on everything, and match the SWL to the equipment rather than the other way around.
