Picture winching a stuck F-250 out of a roadside ditch with a shackle sized for half that load: the pin can bend or shear before the truck ever breaks free, and now you've got a flying piece of hardware on top of a stuck truck. The working load limit for a bow shackle runs from roughly 0.5 ton on a 1/4-inch pin up to 17 tons on a 1-1/2-inch pin, and matching that number to your recovery setup is the single decision that separates a controlled pull from a hospital trip.
- Bow shackle working load limit by size ranges from 0.5 ton (1/4 inch) to 17 tons (1-1/2 inch) on standard screw-pin anchor shackles.
- A 3/4-inch bow shackle rated at 4.75 tons covers most half-ton and 3/4-ton truck winch recoveries in 2026.
- Never load a bow shackle past its stamped WLL — the rating already includes a built-in safety factor, not a suggestion.
- Match shackle size to winch line rating and rigging point, not to what happens to fit the D-ring.
Why Working Load Limit Matters Before You Rig Up
A bow shackle's working load limit (WLL) is the maximum load the manufacturer certifies it to carry under normal, in-line pulling conditions — it is not the load at which it fails. Forged shackles typically carry a 4:1 to 6:1 design factor between WLL and actual breaking strength, which is why a stamped rating looks conservative next to the shackle's obvious bulk.
That margin exists because recovery loads are rarely clean. A stuck truck, side loading on the pin, a shock load from a jerky throttle input, or a rusted and undersized shackle swapped in because it was the only one in the truck box all eat into that safety factor fast. Reviewing bow shackles for winch recovery rigging before you buy tells you which pin diameters and body styles show up most often in professional recovery kits, and that homework belongs before a job, not during one.
Trucking and towing crews that size shackles by year-round use — snow season pulls, summer overlanding recoveries, daily flatbed rigging — get more consistent results than crews that grab whatever shackle is closest. The chart below gives you the numbers to make that call in seconds.

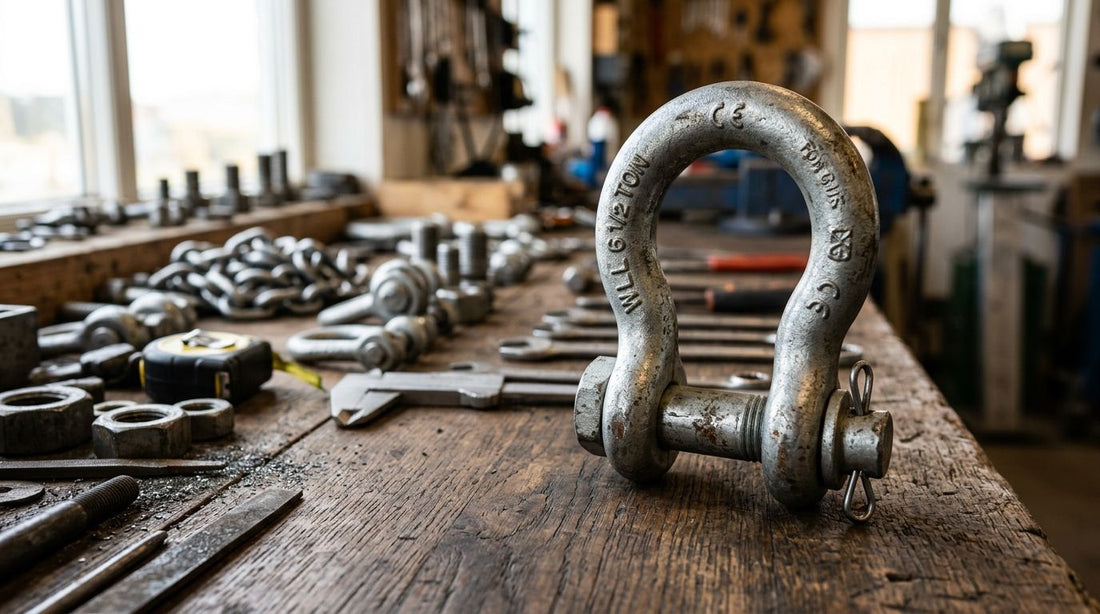

Bow Shackle Working Load Limit by Size (Full 2026 Chart)
The table reflects standard forged alloy steel screw-pin anchor (bow) shackle ratings, the sizing convention used across most commercial and off-road recovery shackles sold in 2026. Pin diameter drives the rating — not the bow width or overall shackle length.
| Pin Diameter | Working Load Limit |
|---|---|
| 1/4 inch | 0.5 ton (1,000 lbs) |
| 5/16 inch | 0.75 ton (1,500 lbs) |
| 3/8 inch | 1 ton (2,000 lbs) |
| 7/16 inch | 1.5 tons (3,000 lbs) |
| 1/2 inch | 2 tons (4,000 lbs) |
| 5/8 inch | 3.25 tons (6,500 lbs) |
| 3/4 inch | 4.75 tons (9,500 lbs) |
| 7/8 inch | 6.5 tons (13,000 lbs) |
| 1 inch | 8.5 tons (17,000 lbs) |
| 1-1/8 inch | 9.5 tons (19,000 lbs) |
| 1-1/4 inch | 12 tons (24,000 lbs) |
| 1-3/8 inch | 13.5 tons (27,000 lbs) |
| 1-1/2 inch | 17 tons (34,000 lbs) |
The 1/4-inch shackle trails the chart at 0.5 ton, and the 1-1/2-inch shackle leads it at 17 tons — a 34x spread across the standard size run. Most light-duty truck and SUV recovery work lands in the 3/8-inch to 3/4-inch range (1 ton to 4.75 tons), while heavy wrecker and equipment-hauling rigging typically starts at 7/8 inch and climbs from there.
Methodology and What This Chart Cannot Tell You
These figures are the published WLL ratings for standard forged screw-pin anchor shackles in imperial pin sizes, current as of 2026, covering the 1/4-inch through 1-1/2-inch range common in towing and recovery work. Ratings assume in-line loading on an undamaged shackle.
The limitation worth naming: this chart says nothing about a specific shackle's steel grade, heat treatment, or manufacturing traceability. Two shackles stamped the same size can differ in real-world durability, which is why an unstamped shackle with no spec sheet behind it gets no place in a working rig, in 2026 or any other year.
How to Use These Benchmarks
Size a bow shackle to the heaviest single load path in your rigging, not the average pull you expect. If you're anchoring a winch line to a V-bridle for an angled recovery, the shackle at the bridle apex sees combined tension from both legs, so it needs headroom above the winch's rated line pull, not a bare match to it.
- Match or exceed your winch's rated line pull. A 9,500-lb winch lines up exactly with a 3/4-inch shackle at 4.75 tons (9,500 lbs) — right at the edge, which is why many crews step up to 7/8 inch at 6.5 tons for that setup.
- Never downsize to fit a tight D-ring. If the shackle that fits your recovery point can't carry the load, the fix is a different anchor point, not a smaller shackle.
- Account for angle loading. Rigging angles well off the direct line of pull raise effective load on the shackle — size up rather than run the math tight on the shoulder of a highway.
- Buy for your heaviest job, not your typical one. A fleet that occasionally hauls equipment trailers should size shackles for that job and use them on lighter pulls too.
Buy from a stamped, listed size chart, not an unmarked import shackle with no traceable rating.
Safety Margins and Inspection Before Every Pull
Working load limit assumes a shackle in good condition, loaded in a straight line, without side-loading or shock loading. Every deviation eats into the margin the manufacturer built in, so treat the WLL as a ceiling for ideal conditions rather than a target for every pull in 2026.
Before rigging any recovery, run a quick visual and functional check:
- Confirm the pin threads fully and seats flush — a pin that won't seat has already lost thread engagement.
- Check for cracks, gouges, or bends in the bow, especially near the pin holes where stress concentrates.
- Look for corrosion or pitting that reduces effective cross-section, particularly on shackles stored in a wet truck box through winter.
- Verify the size stamp is legible; an unmarked shackle is a shackle you can't verify, full stop.
Pairing a correctly sized shackle with the rest of your rigging matters as much as the shackle alone. A snatch block rated below the shackle's WLL becomes the weak link regardless of what the shackle can handle, so size the whole chain — shackle, block, rope, anchor — to the same load.
“The lowest-rated component in the rigging chain sets the safe limit for the entire system, not the strongest one.”
Maintenance and Storage That Protects the Rated Capacity
A shackle's stamped WLL only holds if the hardware stays close to the condition it left the factory in. Rust doesn't just look bad — it removes material, and removed material means the shackle carries today's load on a reduced cross-section.
Keep shackles dry between jobs, back the pin out periodically to check for seizing, and apply a light coat of anti-seize on the threads when the shackle sees regular road salt or standing water. Retire any shackle with a bent bow, stripped pin threads, or a stamp you can no longer read.
TruckNTow has supplied trucking and towing professionals with recovery hardware from Detroit since 1959, and the constant across that span is that undersized or worn rigging hardware causes more field failures than any winch or rope does.
FAQ
What is the working load limit of a 3/4 inch bow shackle?
A standard 3/4-inch screw-pin bow shackle carries a working load limit of 4.75 tons (9,500 lbs). That covers most half-ton and 3/4-ton truck winch recoveries in 2026, provided the load stays in-line and the shackle is undamaged.
What size bow shackle do I need for a 9,500 lb winch?
A 3/4-inch bow shackle rated at 4.75 tons (9,500 lbs) matches a 9,500-lb winch line pull exactly. Many crews step up to a 7/8-inch shackle at 6.5 tons to keep margin for angle loading and shock loads.
Is a bigger bow shackle always better?
No. Oversizing adds weight and cost without improving safety once the shackle already exceeds every load path in your rigging. Size to your heaviest realistic pull plus margin, not to the largest shackle on the shelf.
How much stronger is a bow shackle than its working load limit?
Forged alloy bow shackles typically carry a design factor of 4:1 to 6:1 between stamped WLL and breaking strength. That margin absorbs angle loading, shock loads, and wear — it is not a buffer to load against on purpose.
Can I use a bow shackle with a snatch block rated lower than the shackle?
No. The lowest-rated component sets the safe limit for the whole system. A high-capacity shackle paired with an undersized snatch block still fails at the block's rating.
What size bow shackle fits a standard tow strap D-ring?
Most tow strap D-rings accept 3/8-inch to 1/2-inch bow shackles, rated 1 ton to 2 tons. Check the D-ring's own stamped rating first, since the shackle and the anchor point both have to clear the load.
Does pin diameter or bow width determine a bow shackle's rating?
Pin diameter drives the working load limit on a bow shackle, not bow width or overall length. Two shackles with the same bow shape and different pin diameters carry meaningfully different WLL numbers.
How often should I replace a bow shackle used for towing recovery?
Replace a bow shackle as soon as it shows a bent bow, stripped pin threads, or an illegible size stamp, regardless of age. A shackle used weekly in wet or salted conditions deserves a corrosion check every season.
One Last Thing
The 34x spread between a 1/4-inch shackle at 0.5 ton and a 1-1/2-inch shackle at 17 tons means the size stamp tells you more than the shackle's heft in your hand — plenty of shackles look heavy-duty and are still undersized for a highway recovery. Check pin diameter and the stamped WLL every time, and retire anything you can't read.
