Wiring a flatbed for beacons, work lights, a winch, and a compressor off one factory fuse box is how you end up dead in the breakdown lane with a tripped breaker and three customers still waiting. The right switch panel isolates every circuit so one bad ground doesn't take out your whole electrical system.
- An 8-circuit panel with individual breakers beats a single master switch for flatbed builds running beacons, work lights, and a winch off one battery.
- Marine-grade sealed panels rated IP67 or better hold up through 2026 winters better than open-back rocker panels.
- Match panel amperage to your heaviest accessory first, not your switch count — a 40-amp winch circuit needs its own breaker, not a shared bus bar.
- Budget fuse block combos work for light-duty builds under 60 amps total draw; heavy wreckers need a dedicated 100-amp panel.
Why this matters
A flatbed operator running a beacon bar, side work lights, a rear work light, an air compressor, and a winch off a single 30-amp accessory circuit is asking for a blown fuse on the worst possible call. Switch panels for flatbed tow truck builds solve that by giving each accessory its own breaker and its own switch, so a short in the beacon wiring doesn't kill your work lights mid-recovery.
TruckNTow's switch panel installation guide walks through wiring order and grounding, and it's worth reading before you buy anything, because the panel you need depends entirely on how many circuits your build actually runs. This guide ranks the panel types by use case so you buy the right amperage and circuit count the first time, not after a fuse burns out on a 2 a.m. call.
How we ranked these
Each panel type below is scored against three things that matter on a working flatbed: total amperage capacity, individual circuit protection, and how it holds up to road spray, salt, and vibration. Panels get ranked by the accessory load they're built to handle, not by switch count alone — a 12-switch panel rated for 5 amps per circuit is worse than a 6-switch panel rated for 20 amps per circuit if you're running a winch off it.
Verdicts assume a standard flatbed accessory load in 2026: beacon or strobe bar, two to four work lights, a rear-facing floodlight, and in some builds a 12-volt air compressor or winch control circuit.

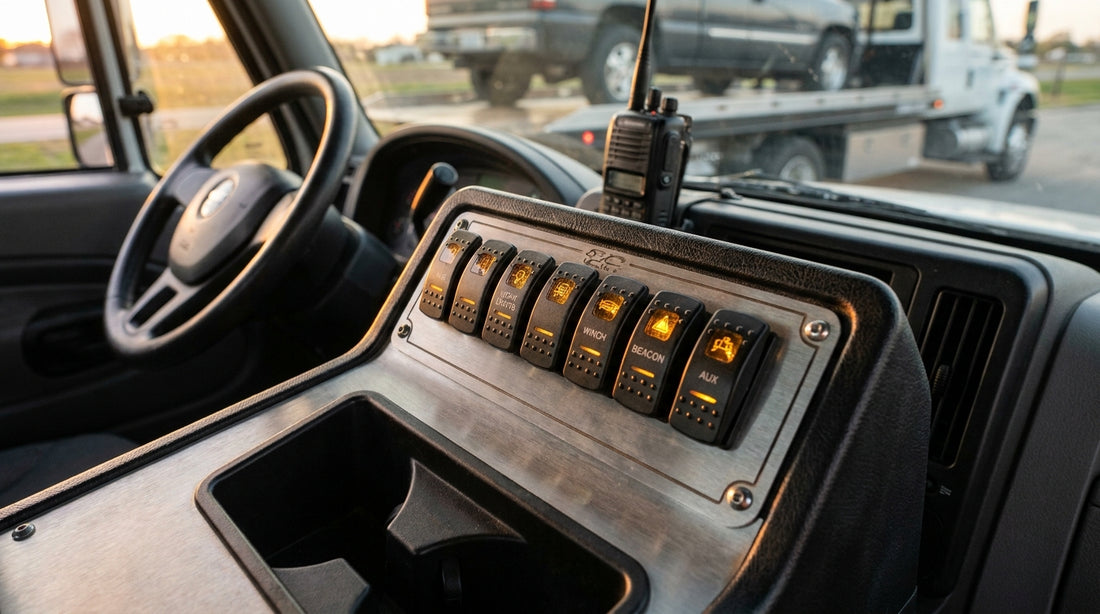

1. The 6-Gang Backlit Rocker Panel — the workhorse pick
This is the standard build for most flatbed operators running four to six accessories off one panel. Backlit rockers let you see which circuit is live at night without squinting at a label, and a 20-amp rating per switch covers most work lights for tow truck night operations without tripping.
The tradeoff is circuit count — six switches run out fast once you add a winch control or a second beacon. For a standard light-duty flatbed running beacons and work lights only, this is enough. Buy for light-duty builds; Consider if you're already planning to add a winch or compressor within the next year, since you'll outgrow it.
2. The 8-Circuit Digital Touch Panel — the tech upgrade
Digital touch panels replace mechanical rockers with a sealed touchscreen or capacitive interface, and the better ones carry individual circuit breakers rated to 25 amps each with built-in diagnostics that flag a short before it blows a fuse. That matters when you're running LED beacons for slow-moving vehicles alongside work lights and a compressor, since a diagnostic readout tells you which circuit failed instead of you pulling fuses one at a time on the shoulder.
The catch is price and repair complexity — a failed touchscreen module costs more to replace than a $4 rocker switch, and not every shop stocks parts for every brand. Buy for heavy-duty wreckers running six-plus accessories; Skip if your build is simple enough that a mechanical panel does the job for less money.
3. The Waterproof Marine-Grade Panel — the all-weather pick
Built with sealed connectors and an IP67 or better rating, this panel type is designed for exposure — open-cab flatbeds, salt-belt states, and any rig that sees road spray directly on the dash or console. It typically runs 6 to 10 circuits at 15 to 25 amps each, similar amperage to the backlit rocker panel but with a gasketed housing that keeps corrosion off the contacts.
This matters most if you're powering a portable air compressor mounted in an exposed toolbox area, since moisture intrusion on an unsealed panel corrodes contacts within a season or two in northern climates. Buy for any flatbed operating in snow-belt states through winter 2026; Consider for dry-climate fleets where sealing matters less.
4. The Fuse Block Combo Panel — the budget build
This setup pairs a basic rocker switch bank with a separate ATC fuse block instead of integrated breakers, and it's the cheapest way to get individual circuit protection on a light-duty build. Total capacity usually tops out around 60 amps combined, fine for two to four accessories but tight if you're adding a winch control circuit later.
Mount it near an aluminum tool box so the fuse block stays accessible for quick swaps roadside, since ATC fuses blow more often than integrated breakers reset. Buy for a first flatbed build on a tight budget; Skip if you're running anything over 60 amps of combined accessory draw.
5. The Modular Expandable Panel — the wildcard
Modular panels let you snap in additional 2-circuit or 4-circuit blocks as your build grows, starting around 4 circuits and expanding to 16 or more on the same base unit. That flexibility is the whole pitch — you buy for today's build and add capacity when you add a winch or a second light bar next season instead of replacing the entire panel.
The downside is unit cost per circuit runs higher than a fixed 8-gang panel, and connector points between modules are one more failure point to inspect. Consider for fleets planning to scale accessory count over multiple build cycles; Skip if your accessory list is finalized and won't change.
If a single switch panel powers your beacons, work lights, and winch off one circuit, one blown fuse takes out your whole rig at the worst possible moment.
“If a single switch panel powers your beacons, work lights, and winch off one circuit, one blown fuse takes out your whole rig at the worst possible moment.”
Comparison table
| Panel Type | Circuits | Amps per Circuit | Best For | Verdict |
|---|---|---|---|---|
| 6-Gang Backlit Rocker | 6 | 20A | Light-duty, beacons + work lights | Buy |
| 8-Circuit Digital Touch | 8 | 25A | Heavy wreckers, 6+ accessories | Buy |
| Waterproof Marine-Grade | 6–10 | 15–25A | Salt-belt states, exposed mounting | Buy |
| Fuse Block Combo | 4–6 | up to 60A total | Budget builds, 2–4 accessories | Buy |
| Modular Expandable | 4–16+ | Varies by module | Growing fleets, phased builds | Consider |
Where to buy
- Match the panel's per-circuit amperage to your single heaviest accessory first — a winch control circuit or air compressor needs a dedicated breaker rated above its startup draw, not a shared bus.
- Buy sealed marine-grade housings if your flatbed runs any exposed mounting location, since corrosion on contacts is the number one panel failure reported by operators in cold-weather states.
- Read the wiring order in the switch panel installation guide before ordering, since grounding mistakes are the most common reason a new panel arcs or trips on first use.
TruckNTow has shipped trucking and towing equipment out of its Detroit warehouse since 1959, and every order ships with free ground shipping, so there's no reason to undersize a panel to save on freight.
FAQ
What is the best switch panel for a flatbed tow truck?
An 8-circuit digital touch panel rated at 25 amps per circuit is the best switch panel for a flatbed tow truck running six or more accessories in 2026. Light-duty builds with four accessories or fewer do fine with a 6-gang backlit rocker panel.
How many circuits do I need on a flatbed switch panel?
Most flatbed builds need 6 to 8 circuits to cover a beacon bar, two to four work lights, and a rear floodlight without doubling up accessories on one switch. Add two more circuits if you're wiring a winch control or air compressor.
Is a digital touch panel better than a mechanical rocker panel?
A digital touch panel is better for heavy-duty wreckers because it includes built-in circuit diagnostics that flag a short before it blows a fuse. A mechanical rocker panel is cheaper and simpler to repair roadside, which makes it the better call for light-duty flatbeds.
How much amperage does a flatbed switch panel need?
Total amperage depends on your accessory load, but most flatbed builds need 60 to 100 amps combined across all circuits in 2026. A winch control circuit alone can draw 40 amps, so size the panel around your heaviest single accessory first.
Do switch panels need to be waterproof?
Switch panels mounted in any exposed location on a flatbed should carry an IP67 rating or better, especially in salt-belt states where road spray reaches the dash or console. Unsealed panels corrode at the contacts within one or two winters in those climates.
Can I add circuits to a switch panel later?
Modular expandable panels let you snap in additional circuit blocks as your accessory list grows, starting at 4 circuits and scaling to 16 or more on the same base unit. Fixed panels like the 6-gang or 8-circuit models don't expand, so you'd replace the whole unit instead.
What's the difference between a fuse block and a breaker panel?
A fuse block uses replaceable ATC fuses that need physical swapping after a blow, while a breaker panel resets with a switch flip once the fault clears. Breaker panels cost more but save time roadside since you're not carrying spare fuses.
One last thing
The accessory that blows the most fuses on a flatbed isn't the winch or the beacon — it's the air compressor, because startup draw spikes well above its running amperage for a fraction of a second. Size that one circuit at least 25% above the compressor's rated draw and the panel stops nuisance-tripping on cold starts through winter 2026.
TruckNTow has outfitted trucking professionals out of Detroit since 1959, and every switch panel decision comes down to the same rule: buy for your heaviest circuit, not your switch count.
