Load beams for cargo van setups keep freight from sliding into the doors, and picking the wrong span or capacity means gear shifts inside an enclosed trailer at highway speed. This guide ranks the six cargo bar and load beam styles that actually hold up in 2026, with span ranges, load capacity, and a straight buy-or-skip call on each.
TL;DR
For most cargo vans, an E-track double-stud beam is the buy: it spans 48 to 96 inches, holds roughly 300 lbs of point load, and locks into standard E-track rail without drilling a single hole. A steel telescoping cargo bar is the safe second pick for vans without E-track installed. Skip composite or plastic bars — they top out around 100 lbs of point load and flex under uneven freight. Whatever beam style you land on, load beams for cargo van and enclosed trailer work only perform as well as the corner protection and strap hardware backing them up in 2026.
Why this matters
A load beam that isn't rated for the freight behind it doesn't fail quietly. It bows, the load shifts three inches, and now a pallet is leaning on the door at the next hard brake. Cargo vans and enclosed trailers don't have the stake pockets or rub rails that flatbeds use for securement, so the beam itself is doing structural work a strap alone can't do.
The deeper breakdown on span, mounting style, and where beams fit versus straps lives in TruckNTow's guide to load bars and beams for enclosed trailers — worth a read before you commit to a wall-mount system in 2026.
How we ranked
Each beam style is scored against three things haulers actually care about: mounting method (drilled, E-track, or spring-tension), span range in inches, and rated point load in pounds. Capacity figures reflect aggregated manufacturer spec sheets and DOT cargo securement guidance current as of 2026, not a single lab test. Mounting method matters more in a cargo van than a flatbed, since most van interiors don't have pre-drilled rail — E-track retrofits or spring tension are the only options that don't require metal work.
The ranked list

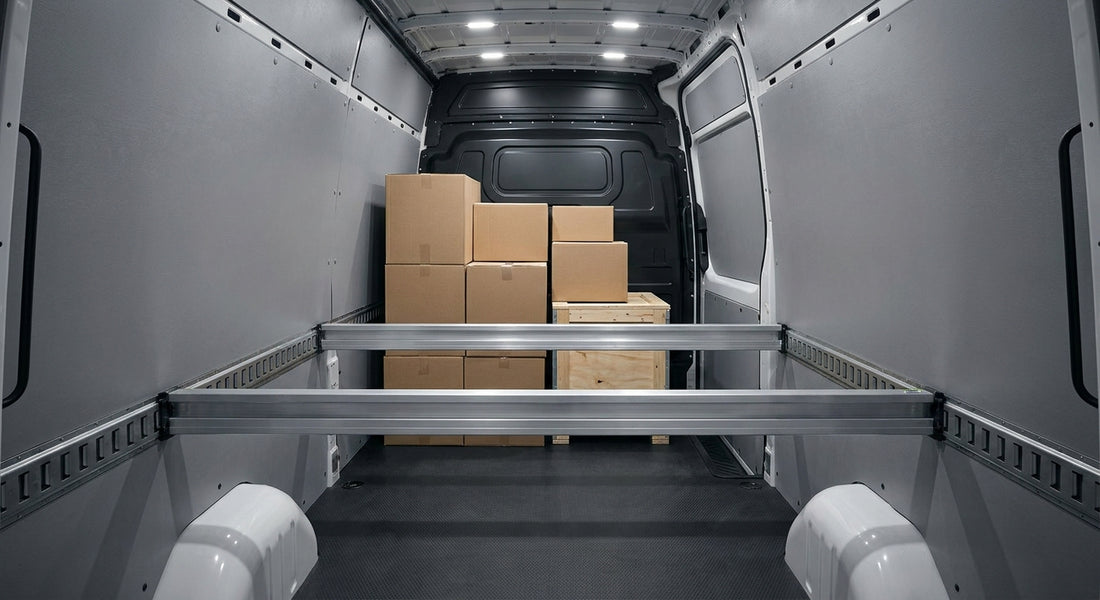

1. E-track double-stud beam — the flexible pick
If the van already has E-track rail bolted to the walls, this is the beam to run. It spans 48 to 96 inches and carries roughly 300 lbs of point load, adjustable in seconds without tools. The stud ends drop into any E-track slot, so you can reposition the beam every load instead of committing to fixed mounting points.
Buy — for any cargo van or enclosed trailer already running E-track.
2. Steel telescoping cargo bar — the workhorse pick
No E-track, no problem. This bar wedges wall-to-wall using rubber end caps and internal ratchet or twist-lock tension, spanning 40 to 70 inches and holding around 250 lbs of point load. It's the standard choice for panel vans hauling boxed freight, appliances, or moving loads where the walls are bare sheet metal.
Buy — the default for vans without rail installed.
3. Ratchet-style load beam — the heavy-freight pick
Built for uneven or asymmetric loads, this style uses a ratchet mechanism instead of spring tension, spanning 40 to 72 inches and rated up to 400 lbs of point load. It's overkill for a load of moving boxes but earns its keep when you're bracing machinery or irregular pallets that don't sit flush against a wall.
Consider — only if the freight itself is heavy or oddly shaped.
4. Aluminum spring-loaded van bar — the lightweight pick
Spring tension bars trade capacity for speed of setup — no ratchet, no crank, just compress and release. Span runs 46 to 71 inches with roughly 150 lbs of point load, which is fine for cardboard and soft goods but not for pallets. Corrosion resistance is the selling point since aluminum doesn't rust in a van that sees weather.
Consider — light freight only, not a substitute for a rated telescoping bar.
5. Plastic or composite load bar — the budget trap
These show up cheap on marketplace listings and look identical to aluminum bars in photos. Rated point load sits around 100 lbs, and the end caps crack under repeated compression cycles well before a metal bar would. Fine for a single move, not for repeat commercial use.
Skip — the failure mode is silent until the load already shifted.
6. Adjustable steel decor bar — the racking pick
Originally built for interior shelving and van racking systems, this bar spans 36 to 60 inches and holds about 200 lbs, mounted with brackets rather than tension. It's the right call if the van is already fitted with a racking package and the beam needs to double as a shelf support, not just a load stop.
Hold — buy only if the van has racking installed; otherwise a telescoping bar does the same job for less.
Comparison table
| Type | Mounting | Span | Point Load | Verdict |
|---|---|---|---|---|
| E-track double-stud beam | E-track rail | 48"-96" | ~300 lbs | Buy |
| Steel telescoping cargo bar | Wall tension | 40"-70" | ~250 lbs | Buy |
| Ratchet-style load beam | Ratchet tension | 40"-72" | ~400 lbs | Consider |
| Aluminum spring-loaded bar | Spring tension | 46"-71" | ~150 lbs | Consider |
| Plastic/composite bar | Spring tension | 42"-70" | ~100 lbs | Skip |
| Adjustable steel decor bar | Bracket-mounted | 36"-60" | ~200 lbs | Hold |
Where to buy
- Match the beam to what's already on the wall. A van with E-track installed wastes money buying a telescoping bar it doesn't need, and vice versa.
- Buy the rated capacity, not the marketed one. Point load numbers on cheap listings are frequently rounded up — cross-check against DOT securement minimums for the freight class you're hauling in 2026.
- Pair the beam with corner protection. A beam holds the load in place; it doesn't stop the load from chewing into drywall or paneling on contact. Vulcan's ultra heavy-duty corner protectors, sized at 9.5" x 6" x 6" and sold in a 20-pack, cover that gap for the same load run.
FAQ
What's the best load beam for a cargo van? An E-track double-stud beam is the best load beam for a cargo van already fitted with E-track rail, spanning 48 to 96 inches at roughly 300 lbs of point load. Without E-track installed, a steel telescoping cargo bar covers the same job at 40 to 70 inches.
Are E-track load beams better than spring-loaded bars? For point load, yes — E-track beams rate around 300 lbs versus roughly 150 lbs for spring-loaded aluminum bars. Spring bars win on setup speed when the freight is light and the wall doesn't have rail.
How much weight can a cargo van load beam hold? Most styles rate between 100 and 400 lbs of point load depending on mounting method, with ratchet-style beams at the top of that range. Capacity depends on the beam type, not the van itself.
Do load beams work in enclosed trailers without E-track? Yes — steel telescoping bars and spring-loaded bars both wedge wall-to-wall without needing rail, though telescoping bars hold more weight at roughly 250 lbs versus 150 lbs for spring tension.
What size load beam fits a standard cargo van? Most full-size cargo vans need a beam in the 40 to 70 inch range for interior wall width; measure the widest point of the cargo area before ordering since van models vary.
Can load beams damage van walls? Unprotected beam contact points can dent or crack interior paneling over repeated use, which is why corner protectors are standard practice alongside any beam rated above 200 lbs.
How much do load beams cost in 2026? Pricing varies by mounting style and capacity, with E-track and telescoping steel bars typically costing more than composite or spring-tension bars — check current listings for exact figures.
Is a load beam the same as a cargo bar? The terms are used interchangeably in the market, though "load beam" more often implies a higher rated point load while "cargo bar" covers the lighter spring-tension category.
One last thing
The number that trips up most buyers isn't span, it's point load versus total load. A beam rated for 300 lbs of point load isn't rated to hold 300 lbs of shifting cargo weight distributed across the whole bar — that figure assumes contact at one spot. Read the spec sheet for "distributed load" separately from "point load" before you trust a beam with anything heavier than moving boxes in 2026.
